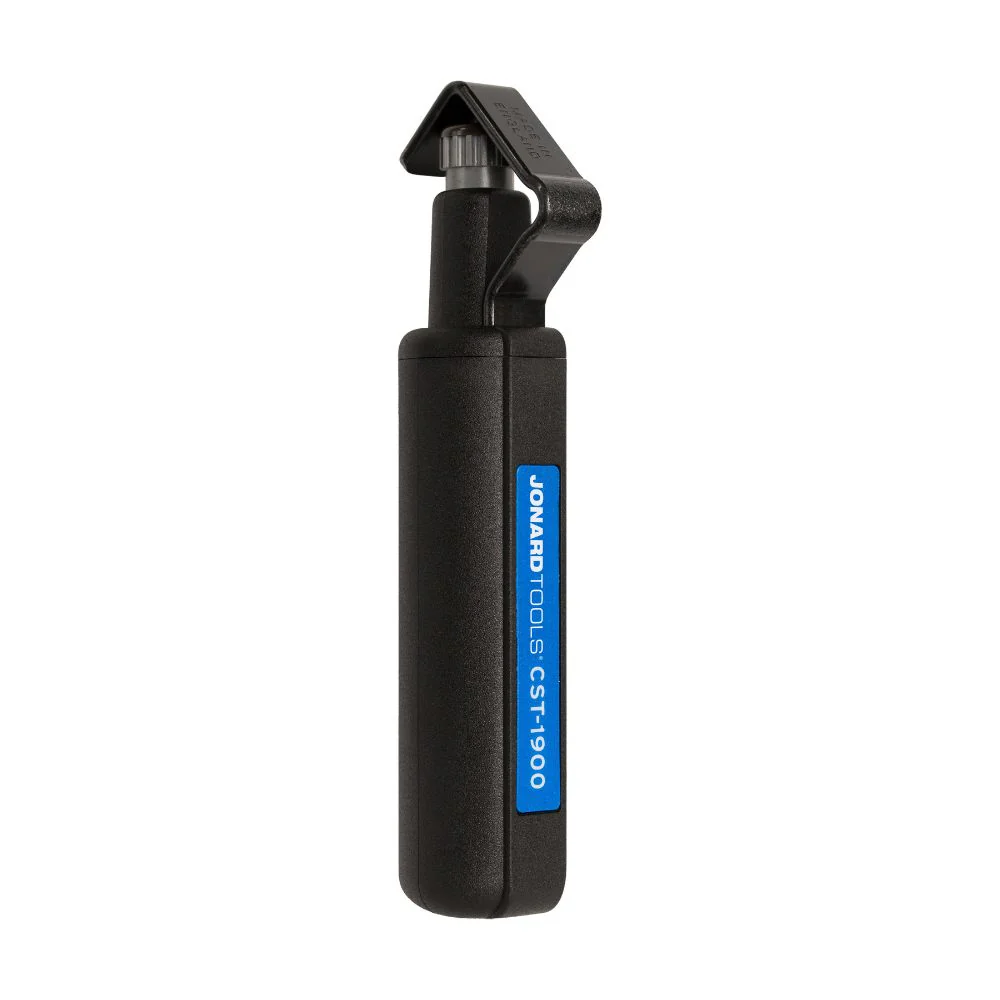

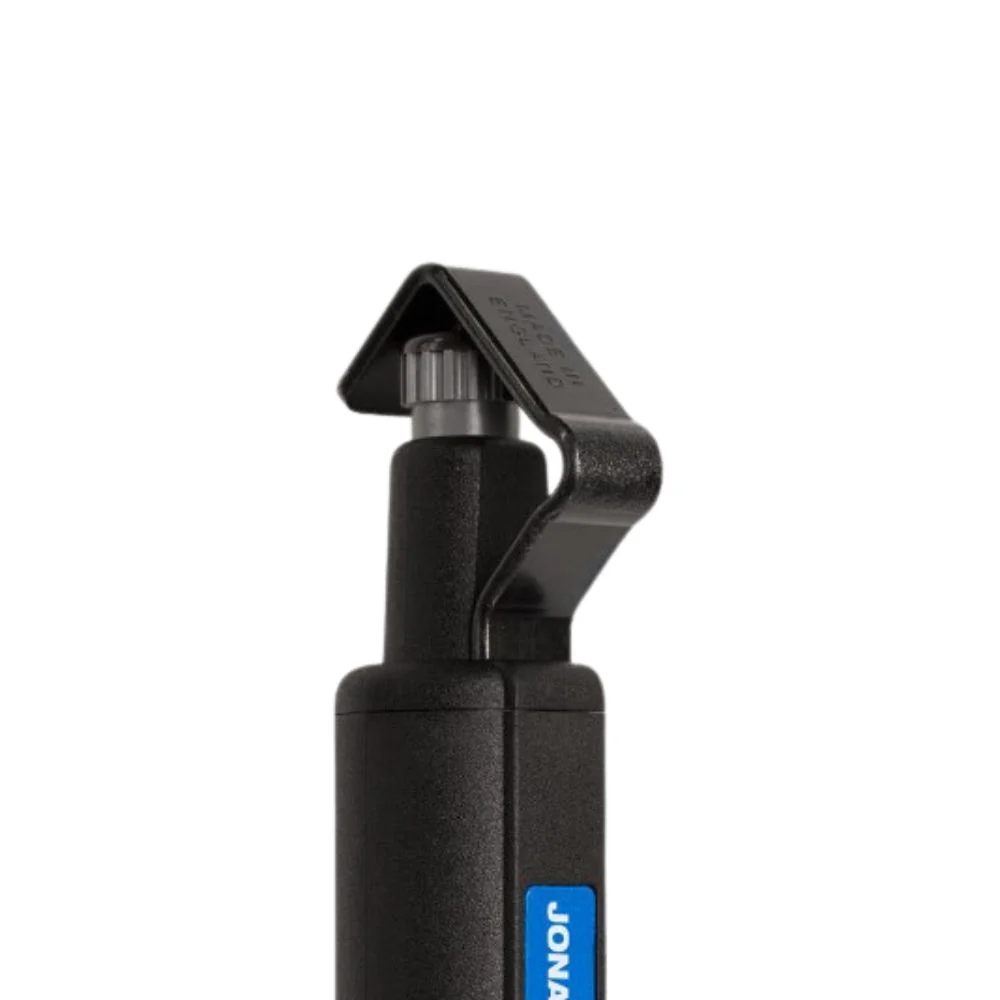

Jonard Tools Round Cable Strip & Ring Tool | JON-CST-1900

The PATENTED CST-1900 Round Cable Strip & Ring Tool is designed for fast and precise removal of cable jackets from round cables that are 3/16” to 1 1/8” (4.5 mm-29 mm) in diameter.

Features

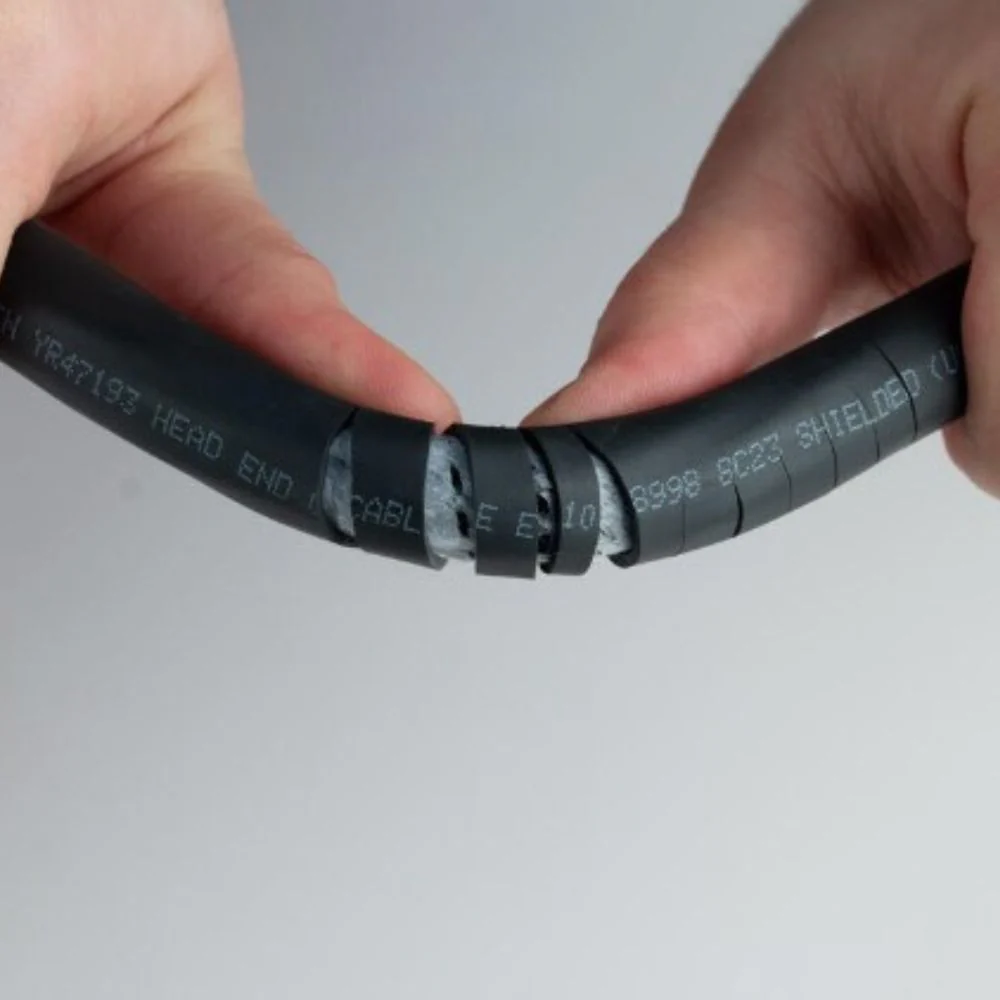

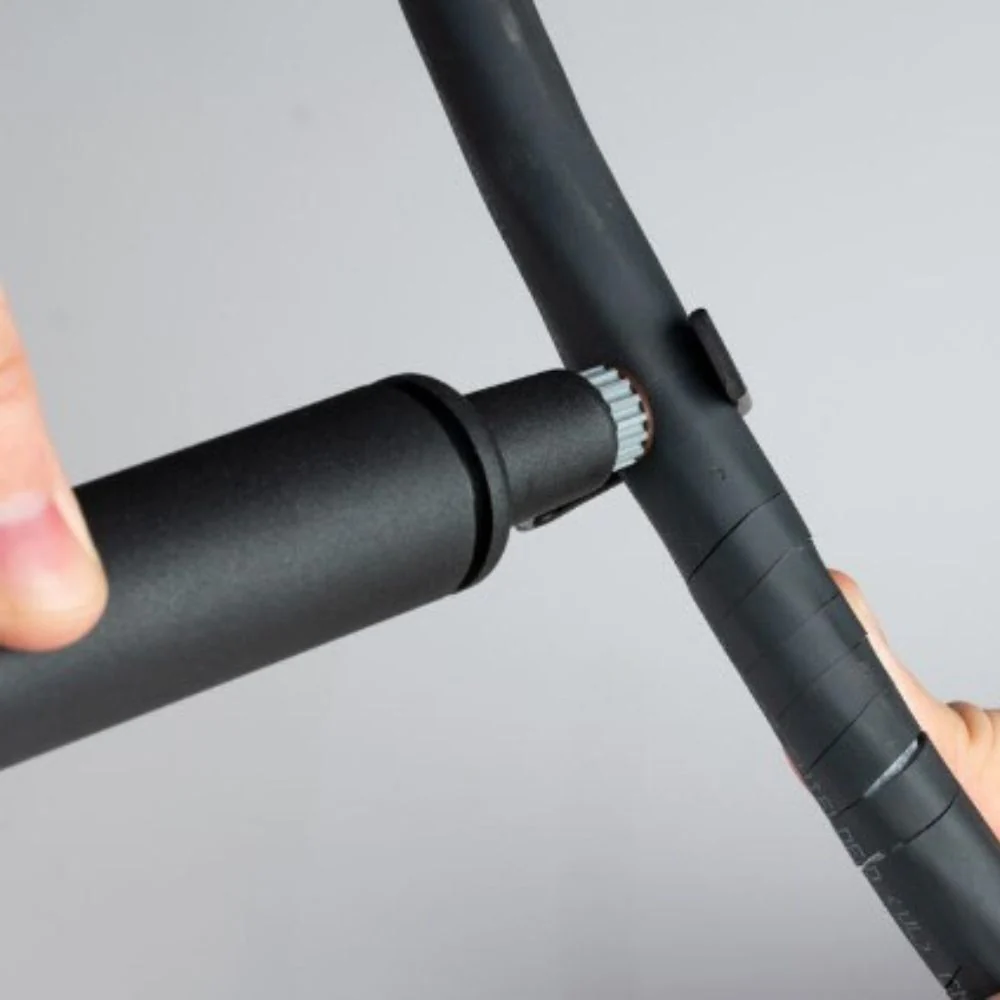

• Patented stripping mechanism provides a Spiral Stripping Mode to strip and remove tough insulations
• Cuts through a variety of jacket materials such as PVC, rubber, PE, and many others

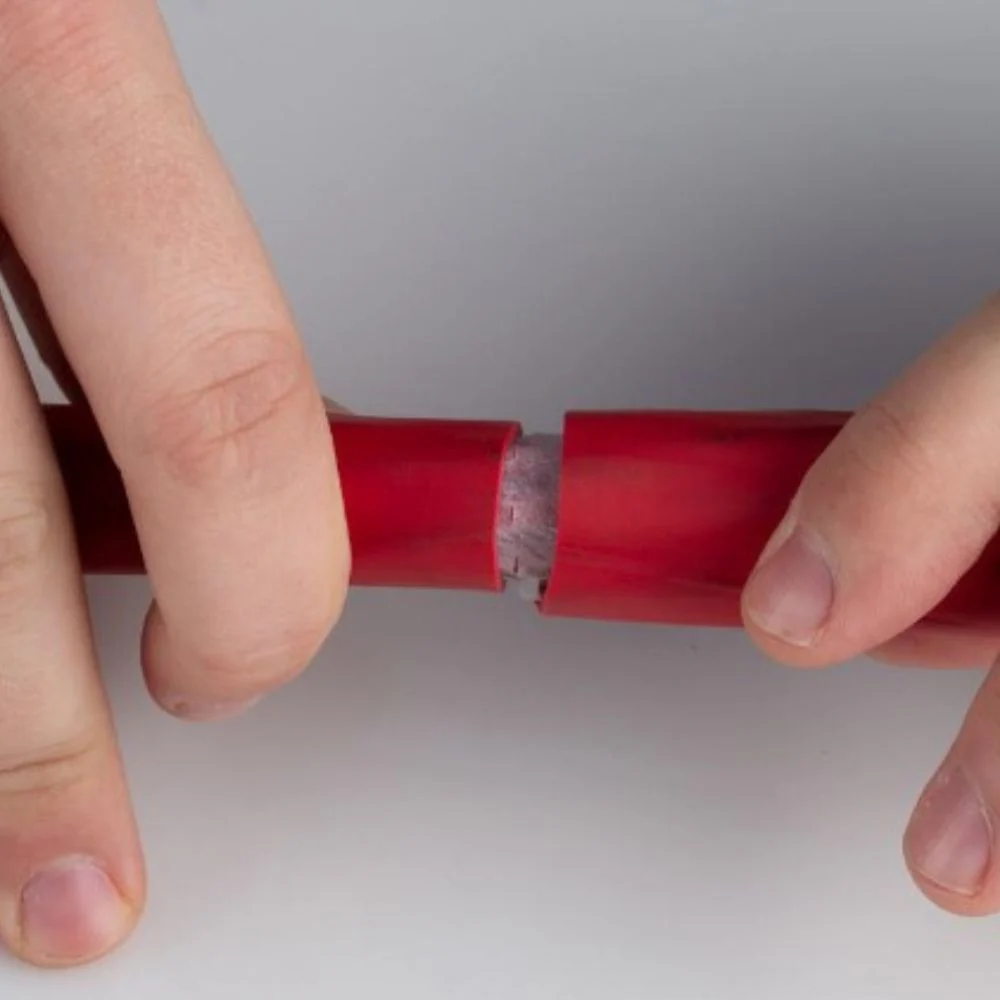

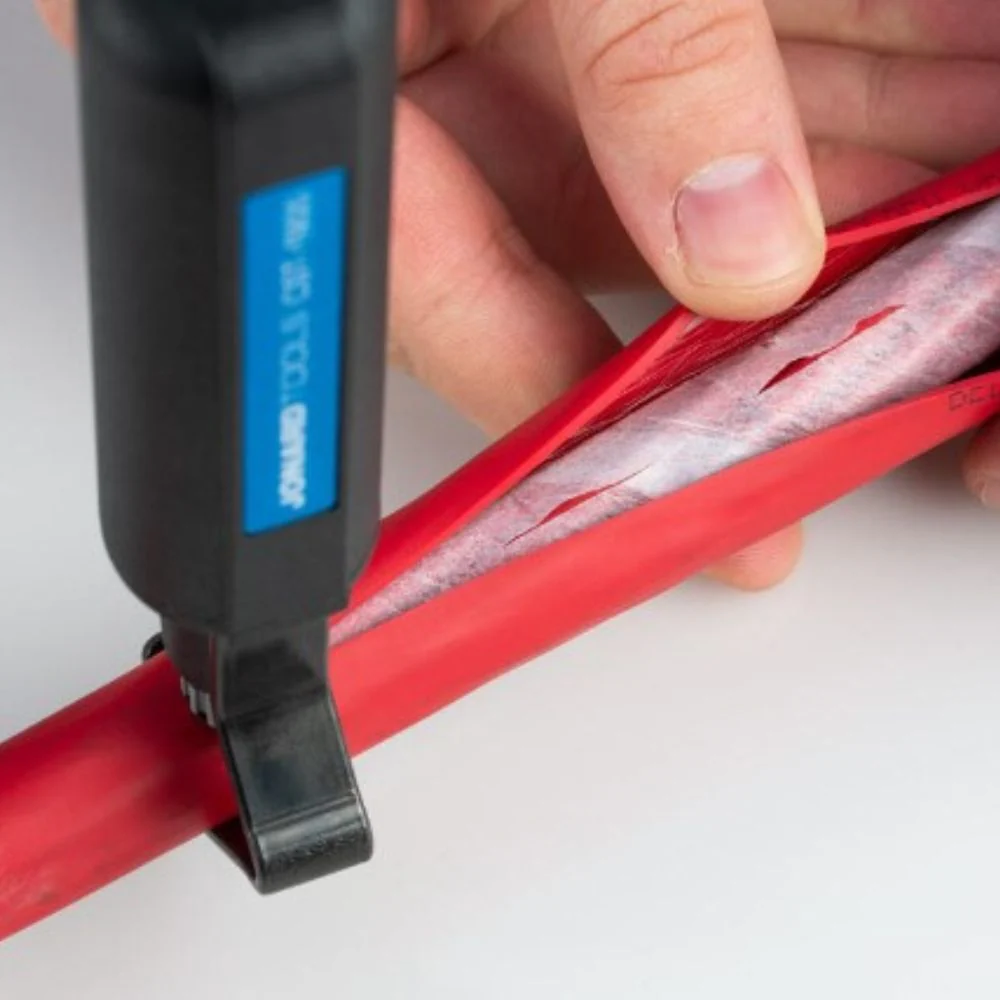

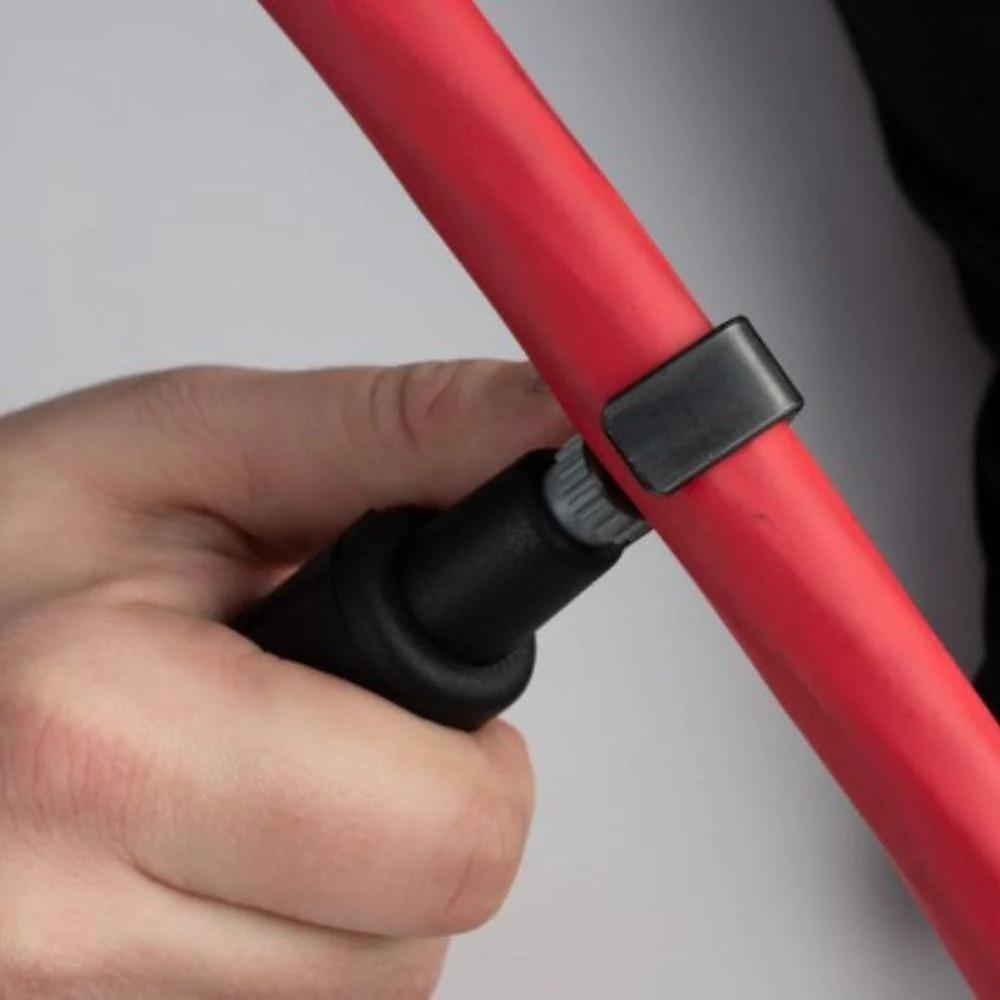

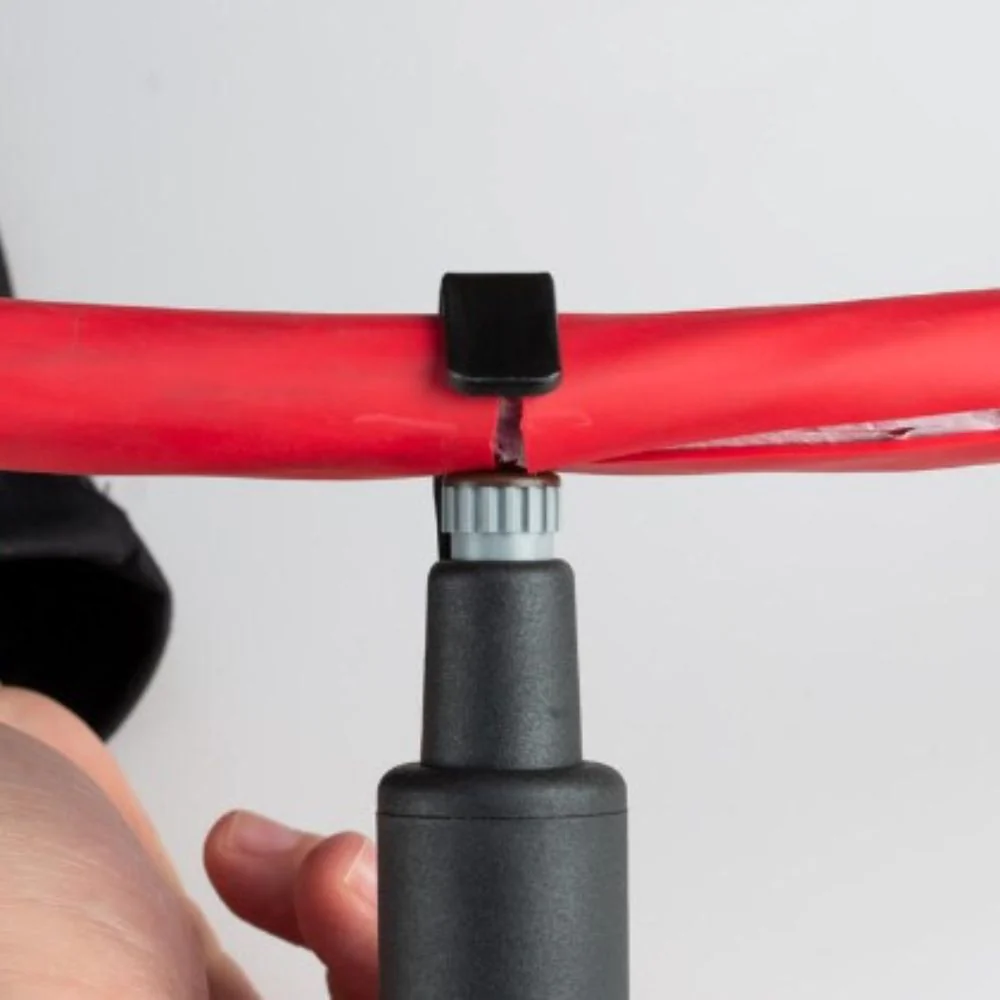

• Triple action design makes longitudinal cuts for end stripping, spiral cuts for end and mid-span stripping, and circular cuts for jacket removal

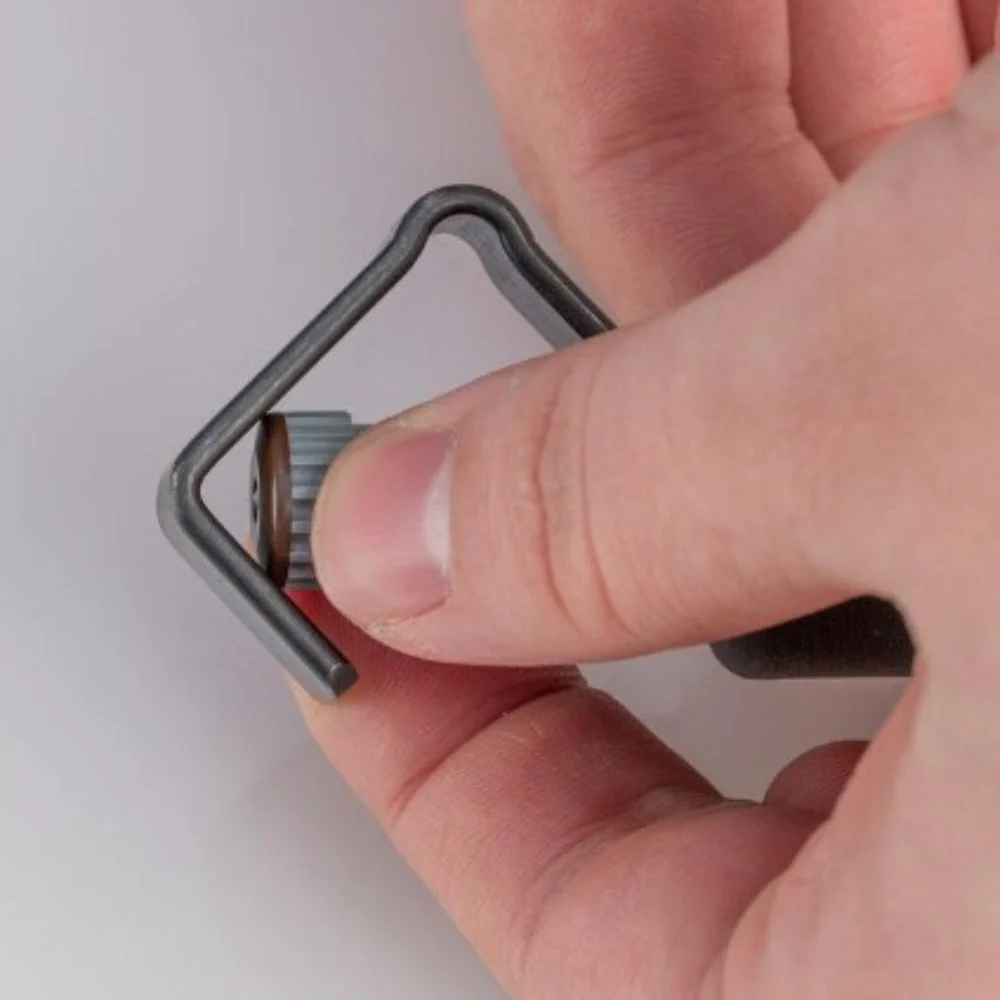

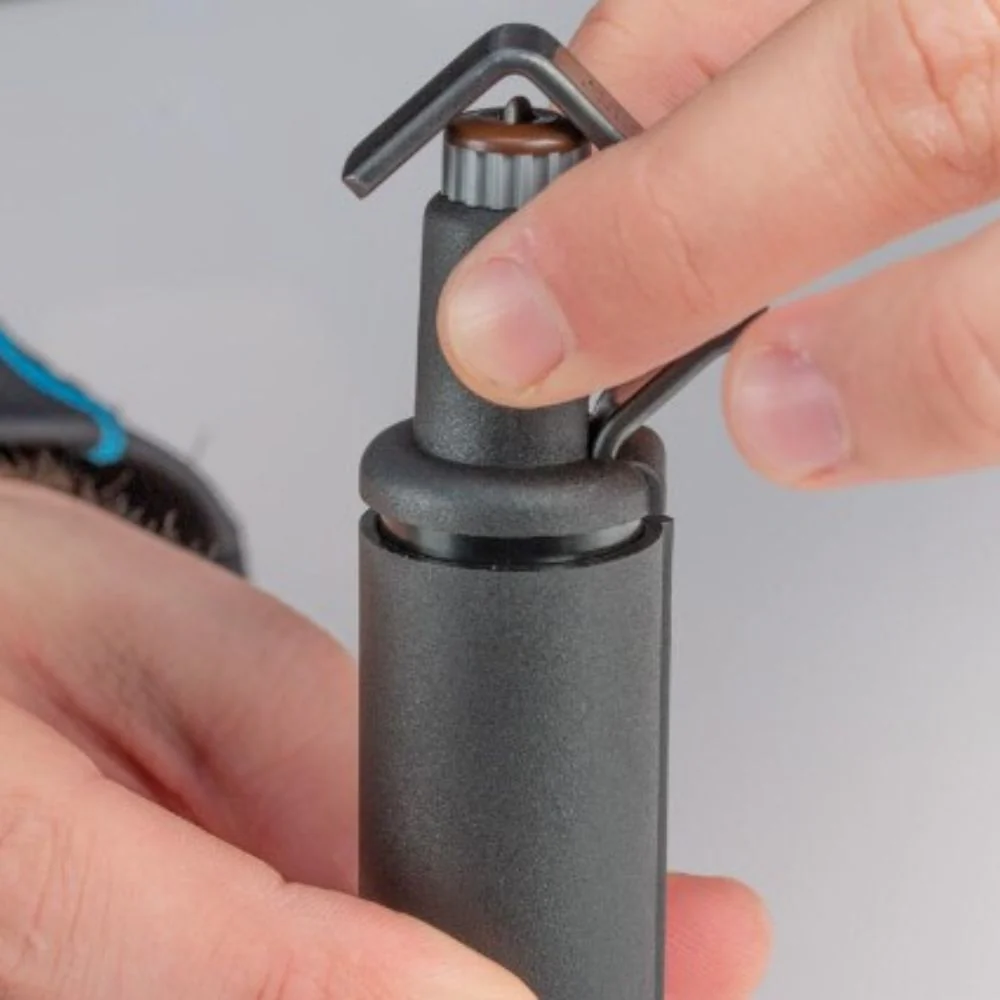

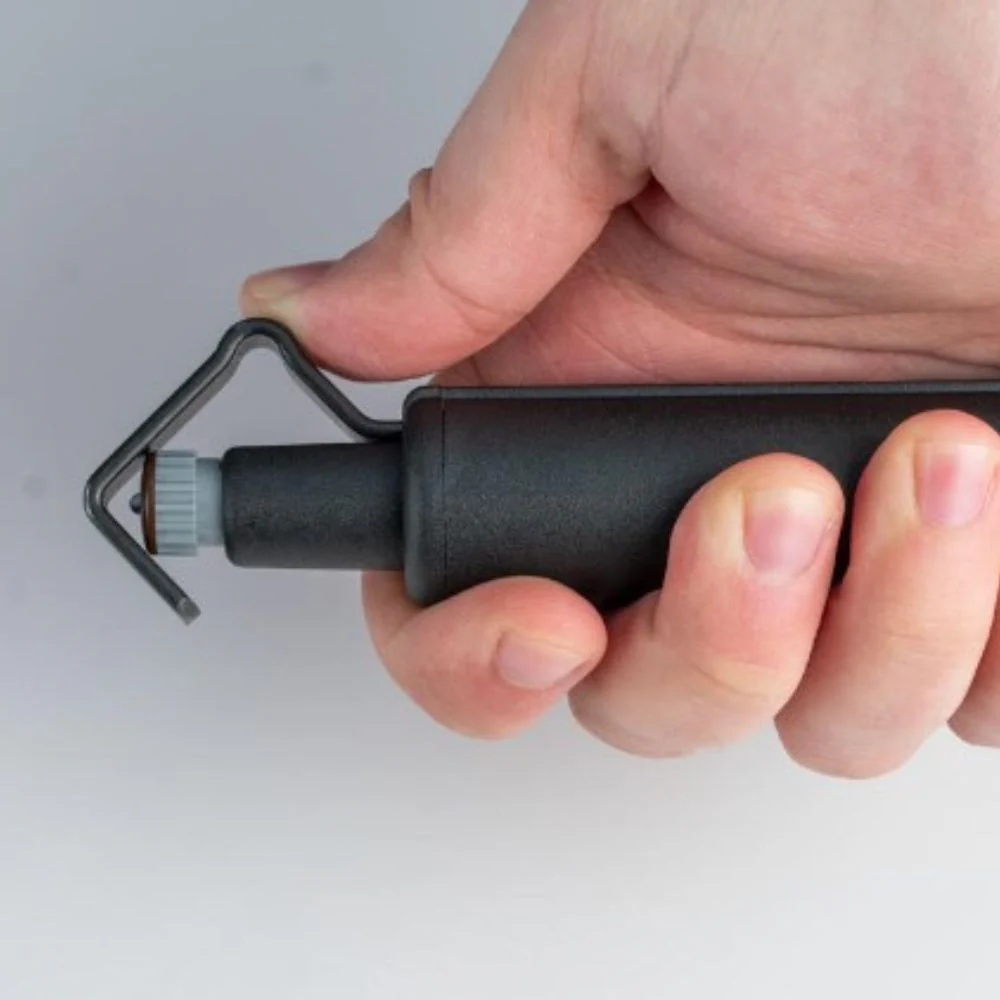

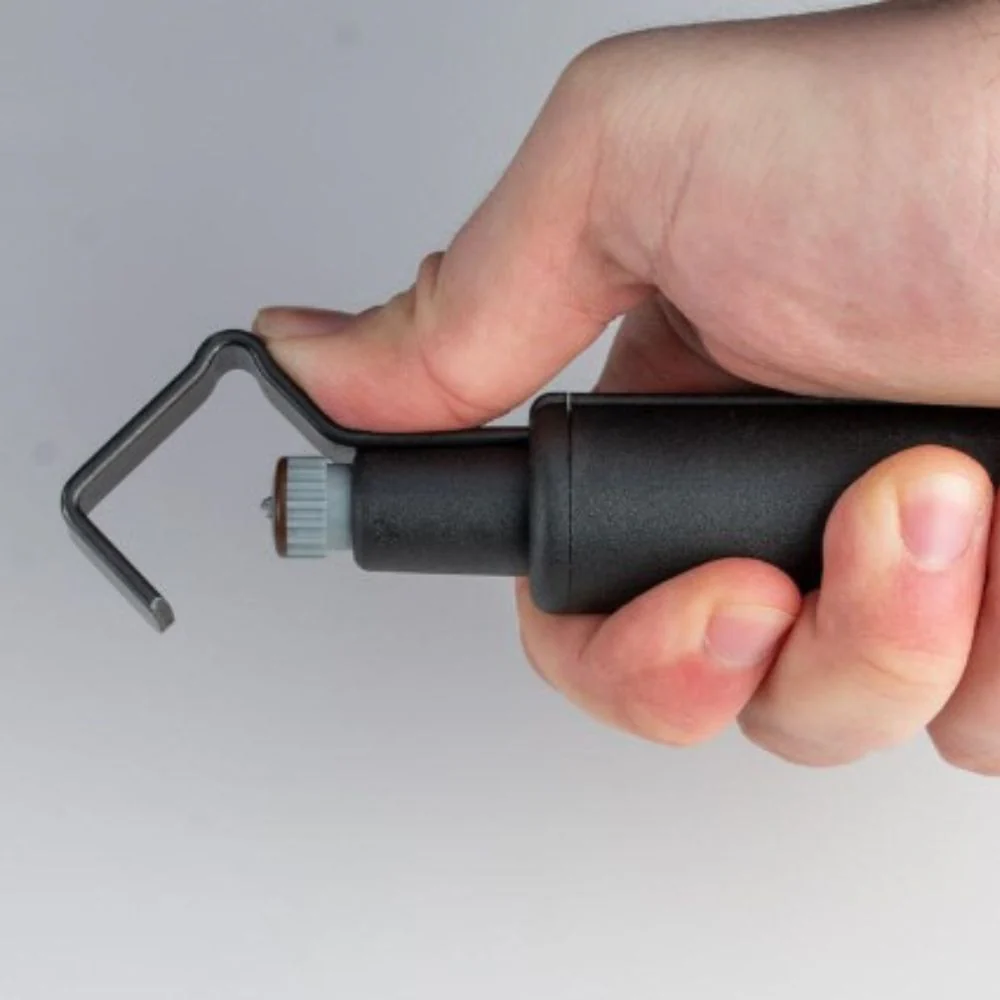

• A spring-loaded blade can be rotated 90 degrees for versatile slitting and can be adjusted for multiple round cable sizes from 3/16" to 1 1/8" (4.5 mm-29 mm) in diameter
• Blade depth 0 mm-3 mm

Specifications

• Cut Type: Slit, Ring
• Cable Type: Jacket, Round Distribution
• Cable Diameter: 3/16"-1 1/8" (4.5 mm-29 mm)
• Blade Depth: 0 mm-3 mm
• Overall Length: 5 1/4" (133 mm)
• Dimensions: 5.4 in x 1.49 in x 1.2 in (13.7 cm x 3.78 cm x 3.04 cm)
• Weight: 0.21 lb (95.34 g)

Product Video

Product Literature

• Jonard Tools Round Cable Strip & Ring Tools Data Sheet
