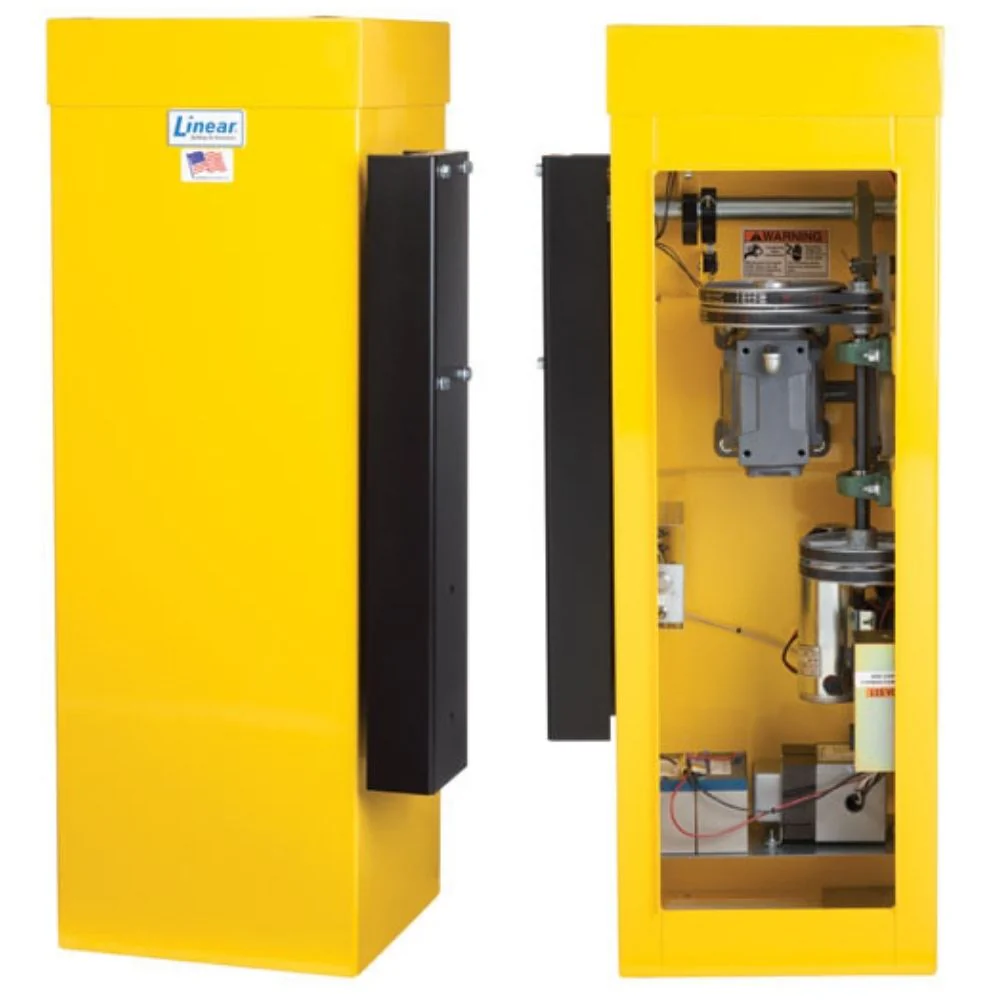

Linear BGUS-D 1/2HP Barrier Gate
Linear BGUS-D 1/2HP Barrier Gate
Note: This product has already been discontinued and replaced with StrongArm 14F (HYS-O-STRONGARM14F) and StrongArmPark DC 14 (HYS-STRONGARMPARKDC14).
Slower operating, counterbalanced arm. For traffic control and parking applications, available in 1/2 horsepower, 115V, or 230V supply voltage, various arm lengths.
Through switch selections, the gate operator is universal and suitable for all installation and operational functions. Switch selection allows for full flexibility as to how and when the arm comes down in traffic control situations.
The BGUS-D has four programmable options for gate operation in case of an AC power failure:
With Fail Safe selected, if AC power fails and the backup battery voltage becomes low, the gate will cycle open and remain open until AC power is restored or the battery gets charged by solar panels. Then, the BGUS-D will resume normal operation and auto-close if programmed to do so.
With Fail Secure selected, if AC power fails and the backup battery voltage becomes low, the gate will cycle closed and remain closed until AC power is restored or the battery gets charged by solar panels. Then, the BGUS-D will resume normal operation.
With Open Immediate selected if AC power fails the operator will cycle open immediately and remain open until AC power is restored. Then, the BGUS-D will resume normal operation and auto-close if programmed to do so.
With Close Immediate selected, if AC power fails the operator will cycle closed immediately and remain closed until AC power is restored. Then, the BGUS-D will resume normal operation.
Features
- Integral APeX Controller
- Power on/off switch
- Duplex receptacle (115 VAC units only)
- 24 VDC permanent magnet motor (BGUS-D only)
- 115 VAC supply converted to 24 VDC for motor and controls (BGUS-D only)
- Dual batteries charged by 115 VAC or optional solar panels (BGUS-D only)
- On-board APeX Controller three-button control station
- All accessory connections 24 VDC
- Easily adjustable cam-operated limit switches
- Lockable and removable front cover for easy access
- Built-in maximum run timer and auto close timer
- Master/second with a simple 3-wire connection
- Quad V-belt
- Heavy-duty right-angle gear reducer
- Heavy-duty harmonic link with oil-impregnated bronze bushings
- Motor has a manually-resettable overload
- Full system capable of access control and reversing devices
- Weather-resistant galvanized steel cabinet with powder coat finish
Warranty
- 5 years
Technical Specifications
- HP: 1/2
- Voltage and Phase: DC Battery Backup, 115-1 Supply or DC Solar
- Arm Size: 14 Ft., 16Ft., 18Ft.
- Application: Slower operating, counterbalanced arm, provision for single-button, detector, radio, 3-button controls, 24VAC, and accessories
- Maximum Duty Cycle: Continuous
