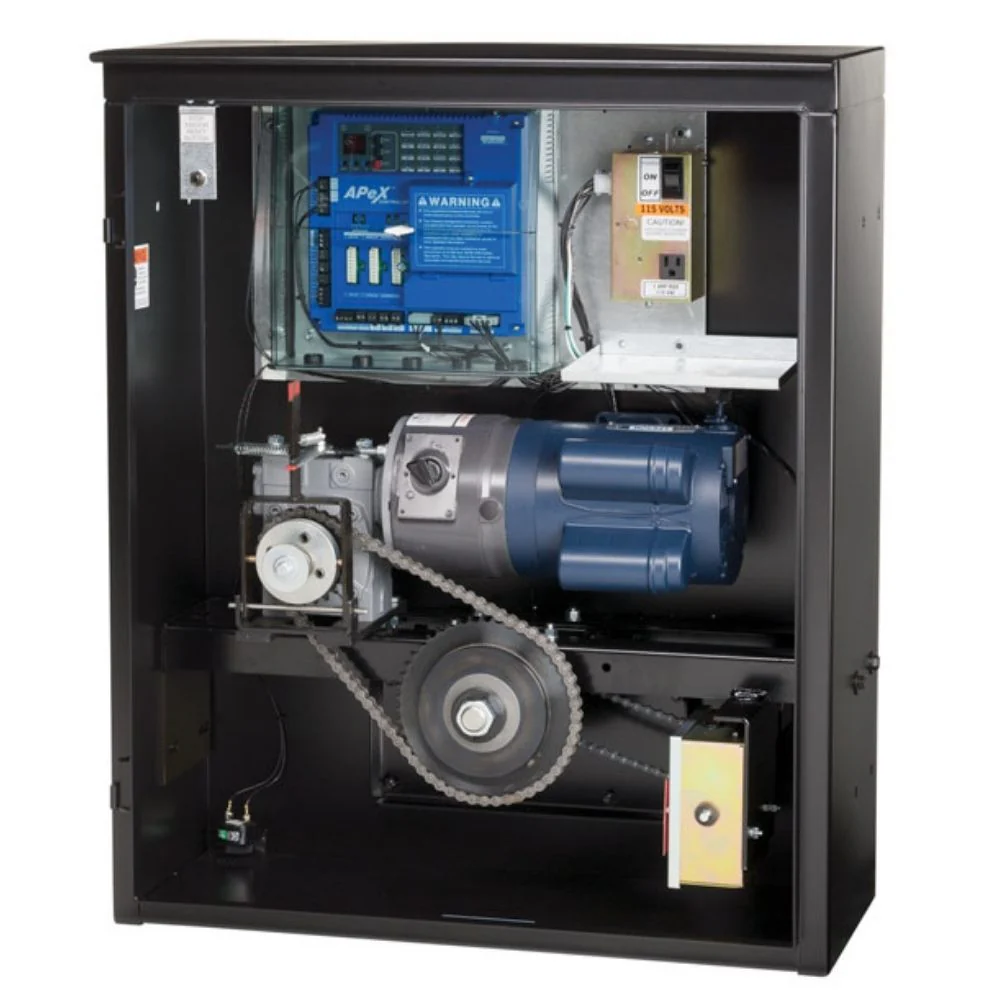

Linear GSLG-A 1/2 HP Industrial Slide Gate Operator

GSLG-A Series. Available in 1/2, 3/4, and 1 horsepower, various supply voltages, and phases, 12″ per second gate speed.

Features

• Integral APeX Controller
• Direct motor to gear reducer drive
• C-face brake
• #50 roller chain
• 1/2, 3/4, or 1 HP motor
• All voltages, single or three-phase
• Emergency manual disconnect handle
• Powder coat finish
• Post mount standard

Electrical

• 1/2, 3/4, or 1 HP, 115 or 230 VAC, single phase, thermally protected, heavy-duty PSC motor
• 1/2, 3/4, or 1 HP, 230 or 460 VAC, three-phase heavy-duty motor
• Double C-face brake
• Power on/off switch
• Emergency stop/reset button on the front cover
• Duplex receptacle on 115 VAC units
• On-board APeX Controller three-button control station
• AC and DC power available for access control accessories and reversing devices
• All accessory connections 24 VDC
• Easily adjustable rotary limit switches

Mechanical

• Heavy-duty 15:1 right-angle C-face gear reducer
• #50 roller drive chain and sprockets
• Adjustable torque limiter
• Heavy-duty pillow block bearings

Factory Options

• Optional pad mount pedestal
• Optional thermostatically-controlled strip heater

Warranty

• 5  years

Technical Specifications

• HP: 1/2
• Voltage and Phase: 460V-3PH, 230V-3PH, 230V-1PH, 115V-1PH
• Max. Gate Weight: 1,100 Lbs.
• Max. Gate Length: 45 Ft.
• Maximum Duty Cycle: Continuous
