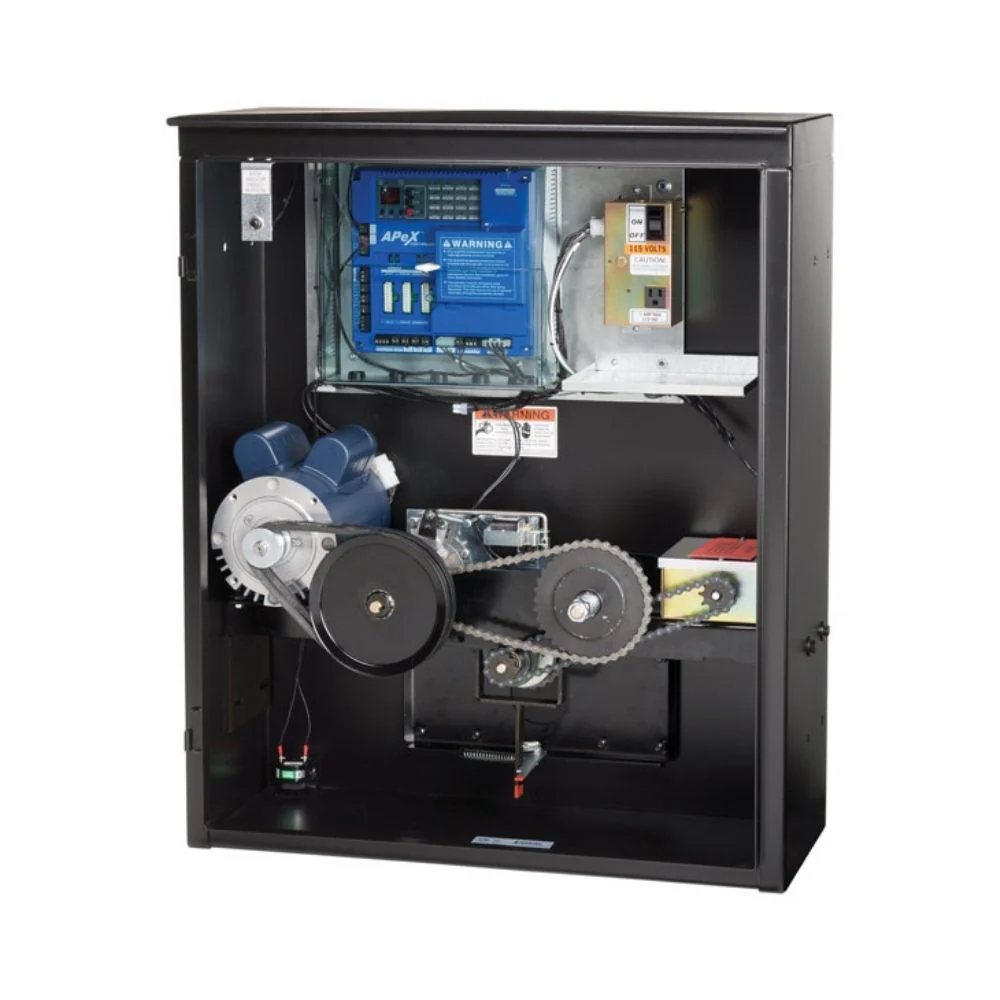

Linear HSLG 1/2 HP Slide Gate Operator

HSLG SERIES – Industrial/commercial duty slide gate operator series, available in 1/2, 3/4, and 1 horsepower, various supply voltages, and phases, 10″ per second gate speed.

Features

• Integral APeX Controller
• Double V-belt to chain reduction
• #40 roller chain
• 1/2, 3/4, or 1 HP motor
• All voltages, single or three-phase
• Emergency manual disconnect handle
• Powder coat finish
• Post mount standard; pad mount optional

Electrical

• Integral entrapment sensing system with dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
• Continuous-tone entrapment alarm with reset button
• Integrated warning beeper during gate movement
• 15 diagnostic LEDs on board for ease of setup and troubleshooting
• Selectable pre-start alarm with provision for ADA compliant visual pre-start and run alarm
• On-board APeX Controller three-button control station
• AC and DC power available for access control accessories
• All accessory connections 24 VDC
• Solenoid disc brake
• Duplex receptacle on 115 VAC units
• Built-in master/slave capability using 3-wire shielded cable

Mechanical

• Heavy-duty steel chassis
• Adjustable torque limiter
• #40 roller chain and sprockets
• Efficient double V-belt drive

Technical Specifications

• HP: 1/2
• Phase: 460 3-Phase, 230 3-Phase, 230 Single-Phase, 115 Single-Phase
• Max. Gate Weight: 1,000 lbs.
• Max. Gate Length: 35 ft.
• Maximum duty cycle: Continuous

Product Literature

• Linear HSLG Series Installation Manual
