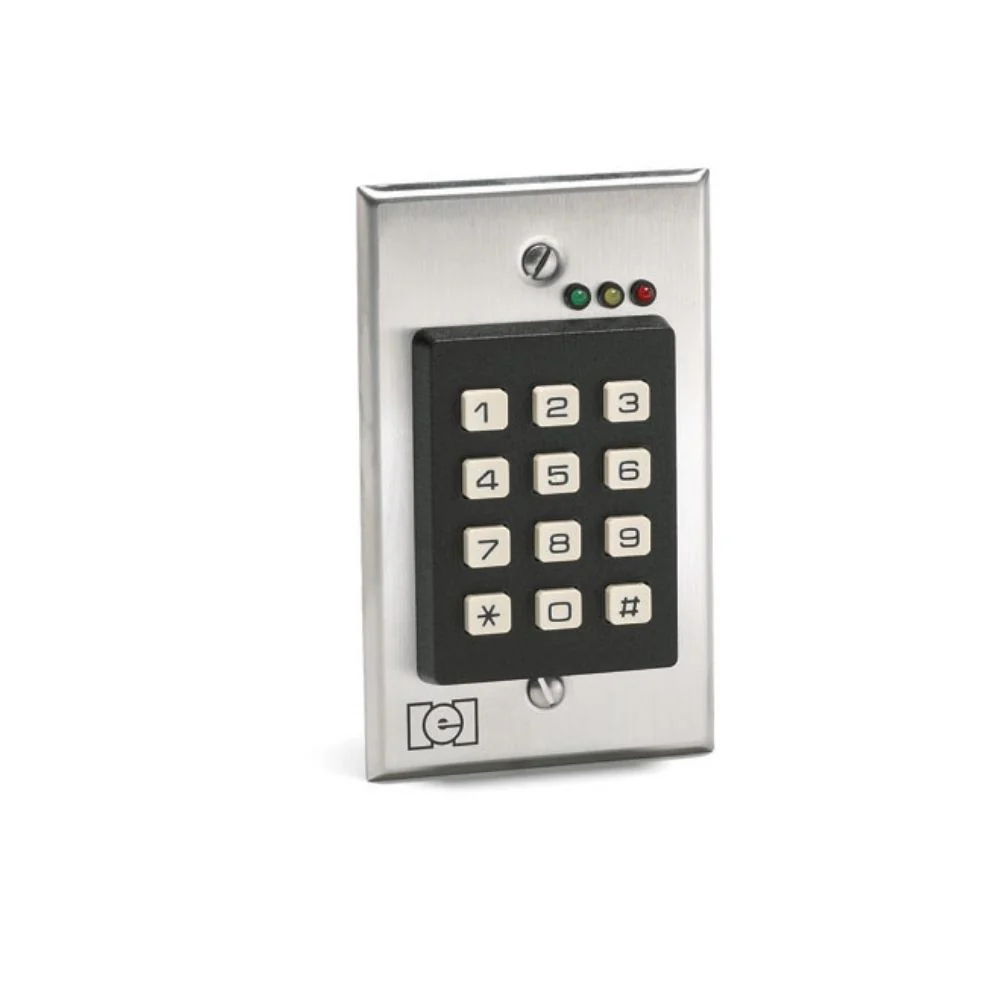

Linear Indoor Flush-mount Keypad | LIN-232i
Linear Indoor Flush-mount Keypad | LIN-232i
Affordable single door access control keypad designed to meet the indoor flush mount needs of lighter volume access control environments. There are three LEDs to indicate operation status and provide the user with visual PIN entry confirmation. The I-style keypad mounts to most standard single-gang electrical back boxes.
Features
- 120 users
- Single gang design
- 1 SPDT 5 amp relay
- 3 1 amp SPDT relays
- Door Position Monitoring
- Door Ajar, Forced door
- Alarm shunt outputs
- Indoor use only
- Functionality mode: 212, 232
Technical Specifications
- Operating voltage: 12-24 VAC/VDC – auto-sensing
- Dimensions: 2.75″ W x 4.50″ H x 1.3 ” D
- Current draw: 94 mA maximum (add 30 mA for each relay)
- Temperature tolerance: -20F to 130F
- Order number: 0-213111
Product Literature
$48.30
Original: $160.99
-70%Linear Indoor Flush-mount Keypad | LIN-232i—
$160.99
$48.30Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Linear Indoor Flush-mount Keypad | LIN-232i
Affordable single door access control keypad designed to meet the indoor flush mount needs of lighter volume access control environments. There are three LEDs to indicate operation status and provide the user with visual PIN entry confirmation. The I-style keypad mounts to most standard single-gang electrical back boxes.
Features
- 120 users
- Single gang design
- 1 SPDT 5 amp relay
- 3 1 amp SPDT relays
- Door Position Monitoring
- Door Ajar, Forced door
- Alarm shunt outputs
- Indoor use only
- Functionality mode: 212, 232
Technical Specifications
- Operating voltage: 12-24 VAC/VDC – auto-sensing
- Dimensions: 2.75″ W x 4.50″ H x 1.3 ” D
- Current draw: 94 mA maximum (add 30 mA for each relay)
- Temperature tolerance: -20F to 130F
- Order number: 0-213111
