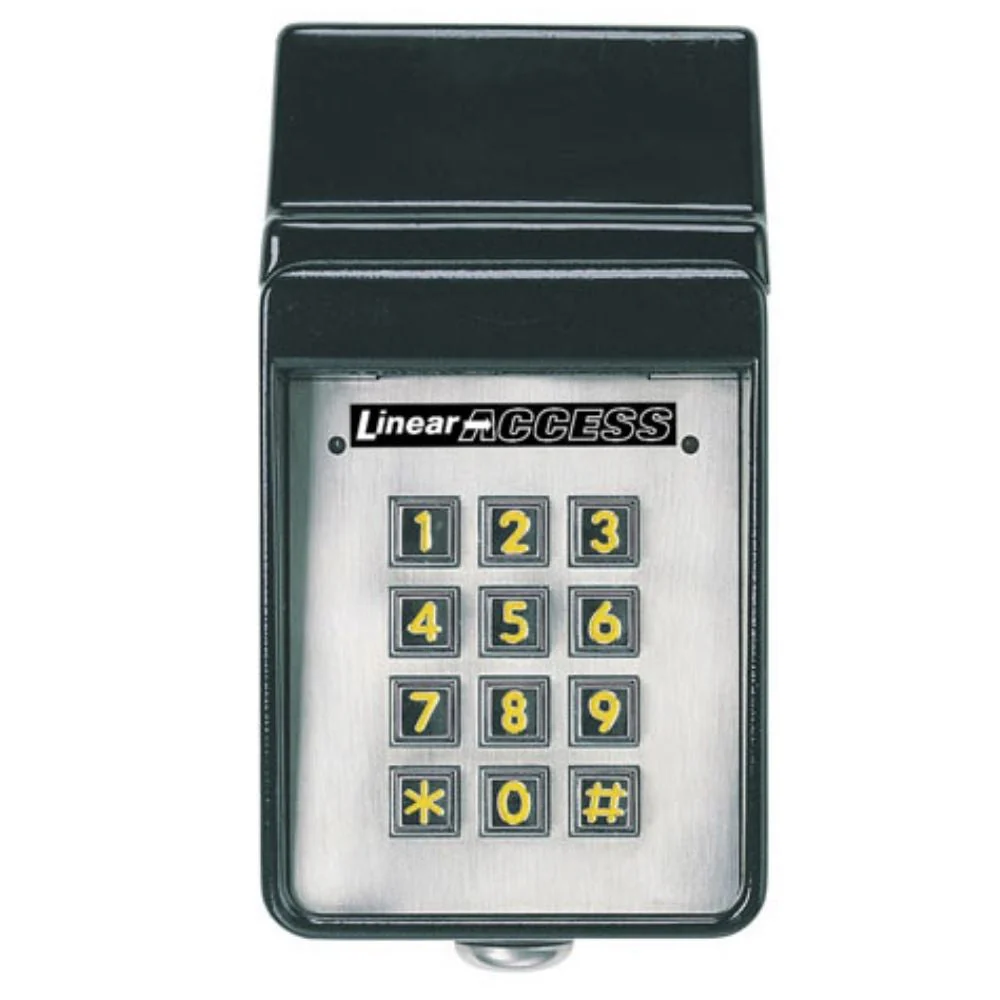

Linear Exterior MegaCode Wireless Keypad | LIN-MDKP
Linear Exterior MegaCode Wireless Keypad | LIN-MDKP
Can transmit a unique signal for each 1-6 digit PIN code entered. It has a built-in radio transmitter with a 250-foot range in line-of-sight conditions. Access codes are programmed into the access controller or receiver, the maximum number of codes possible depends on the receiver model used.
To operate the MDKP, a user simply enters a PIN followed by the # key, and the code is transmitted to the receiver for validation. Downlighting can be turned on by pressing the # key twice; it remains on for 30 seconds or until a code is sent. The MDKP can be mounted on either a wall or a gooseneck.
Includes
- 9V lithium battery
Features
- Internal antenna
- 1-6 digit PIN for each user
- Long-life lithium battery
- Rugged cast aluminum housing
- Built-in downlight
Technical Specifications
- Frequency: 318 MHz
- Battery Life: 5 years with 25 activations per day
- Operating Temperature: -22° to +149° F (-30° to +65° C)
- Power: 9 V lithium battery (supplied)
- Codes: 1,000,000+ (MegaCode format)
- Dimensions: 4″ W x 7″ H x 3″ D (101.6 x 177.8 x 76.2 mm)
- Accessories for use with the MDKP: GNB-1, GNC-1
Compatibility
- Linear AKR-1
- Linear AM-RPR
- Linear AM-RRR
- Linear MDR
- Linear MDR-2
- Linear MDRG
- Linear SMDRG
- Linear WOR
