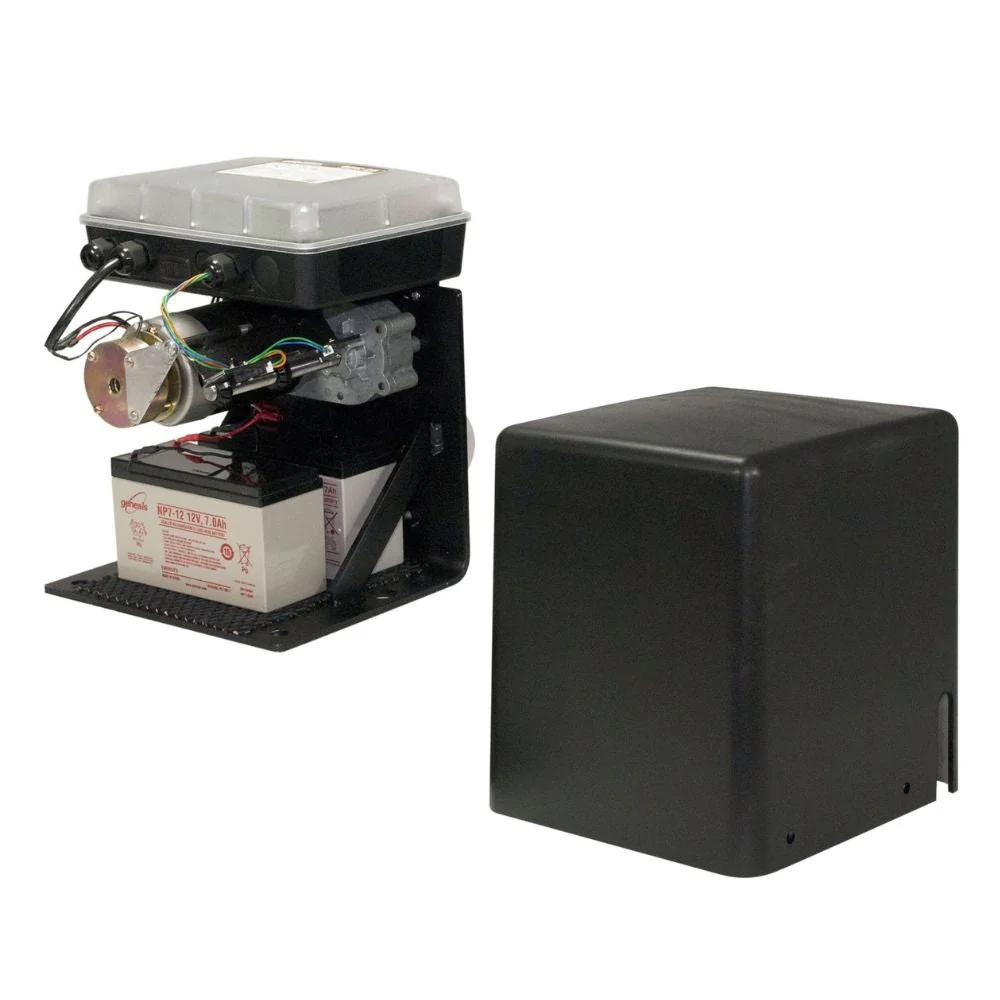

Linear Slide Gate Operator 650Lbs. / 20' | LIN-GPX-SL25

For gates up to a maximum of 650 lbs. (294.8 kg) and 24' (7.3 m) in length with a 20' (6.1 m) opening.

Includes

• Transmitter
• Radio receiver

Features

• Solar Compatible
• Full systems capable “add on ready” heavy-duty control board includes adjustable obstruction sensing, gate sequencing, and auto close settings (OFF and 3-120 seconds)
• Inherent battery backup
• Post mount (R4983) and adjustable pad mount adapters (R4984) are available (not included)
• Chain disconnect for manual operation
• Designed to address applications up to 100 cycles per day
• Dual gates require an additional operator (GPX-SL252)
• Works on all types of gates;*chain link, tube, panel, ornamental, wood, and vinyl
• U.L. rated for Class I. System certified to be in compliance with U.L. 325, 5th edition

Electrical

• 12 Volt DC / 7.0 amp hour, sealed, rechargeable battery (included).
• Battery charge is maintained by a regulator on the control board
• Powered by a reliable 12 Volt (1/4 HP) DC motor, case hardened
• steel gear reducer
• “Sleep draw” is 40 mA; “active draw” is 2 to 9 amps

Mechanical

• Operating temp -5 F (-21C) to +160 F (71 C)
• #41 Chain 25' with master link
• The fully compatible accessory terminal block provides connections for safety loops, exit wands, intercoms, card readers, phone systems
• Operation, diagnostic and safety alarms
• Inherent obstruction sensing

Technical Specifications

• Dimensions : Height: 12.5 In. x Depth: 12 In. x Width: 10.5 In.
• Shipping Weight: 50 lbs. (22.7 kg) Meets UPS shipping standards
• Opening time: 1 ft. (.31 m) per second maximum

Product Literature

• Linear GPXSL25 Installation Manual
• Linear GPXSL25 Product Brochure
