Linear Indoor and Outdoor Surface-mount Keypad 212SE/212R

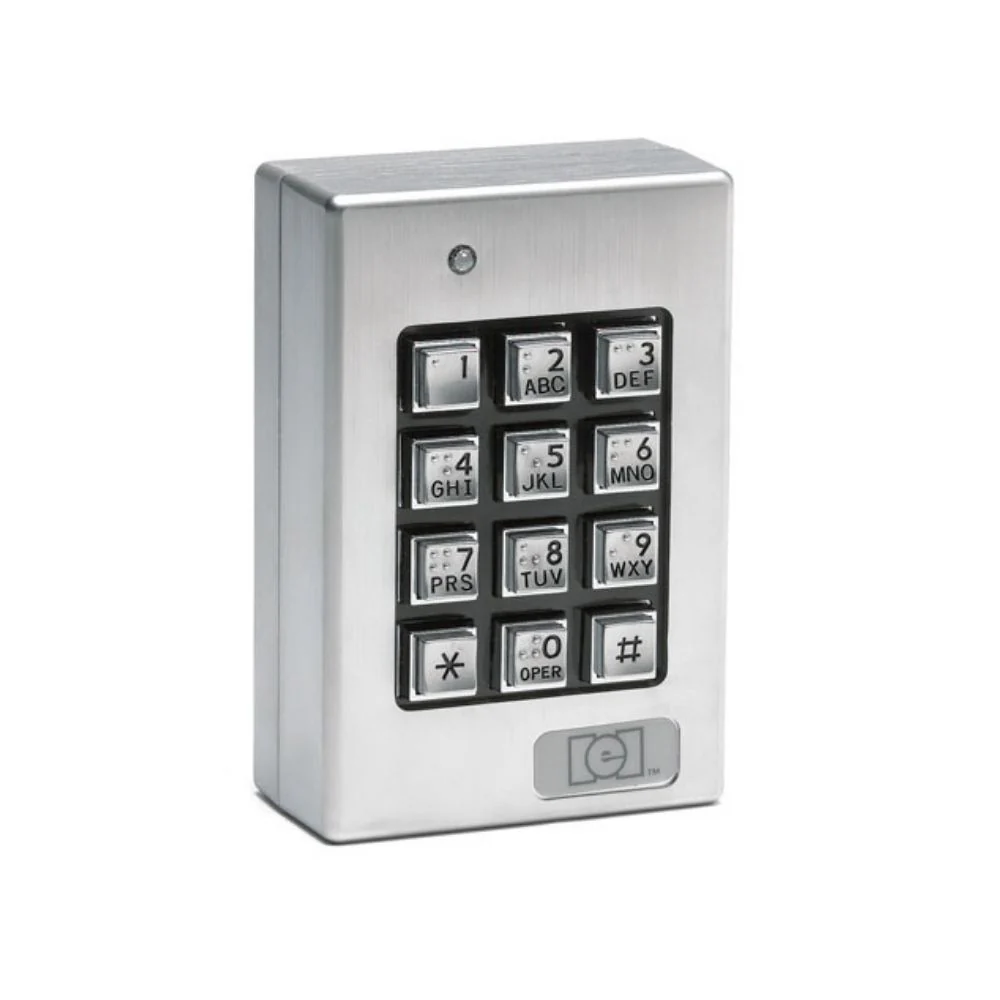

The sealed environment 212SE style keypad features a brushed metal housing that has been treated to resist corrosion and an all metal Braille, alpha-numeric keypad. There is an internal sounder that is used to indicate key press feedback, and a bi-color LED to indicate operation. The housing has been designed to mount directly on a standard single-gang electrical box, or to most flat surfaces.

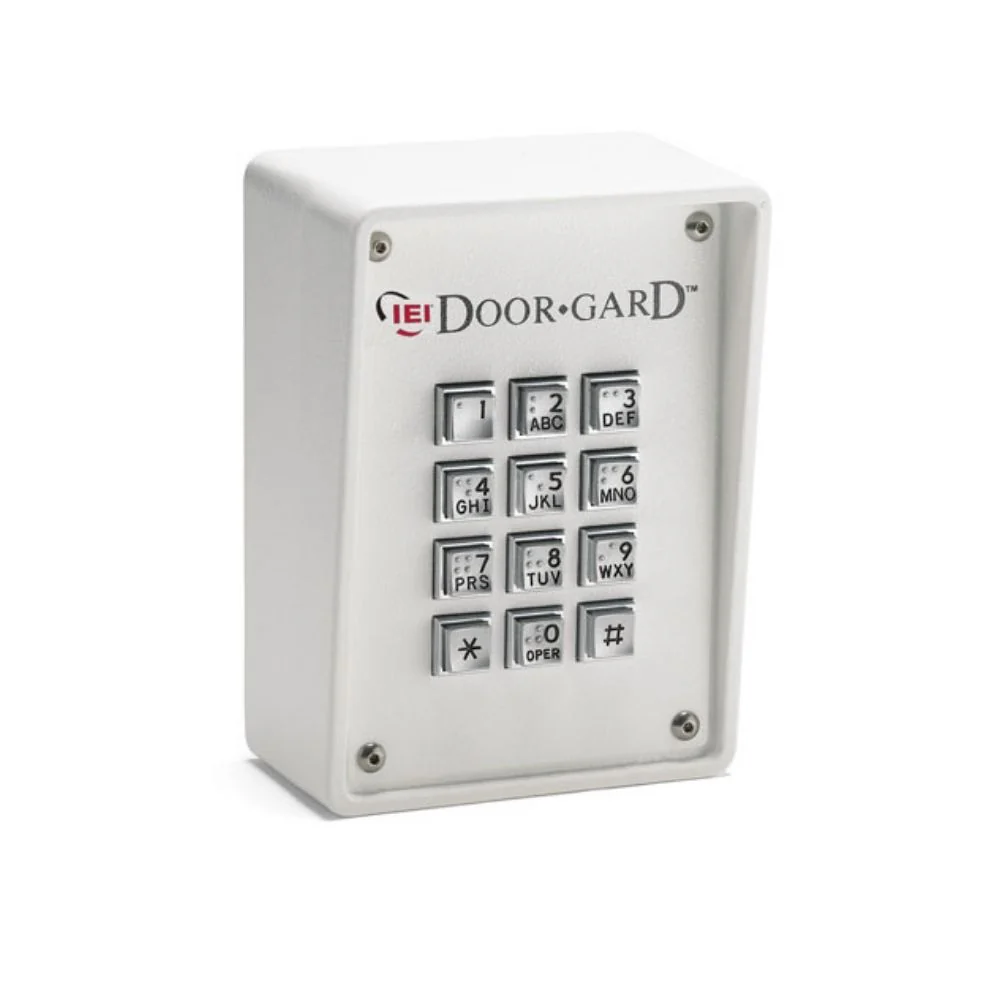

The ruggedized R style 212R keypad features a cast aluminum housing and all-metal faceplate that has been treated with polyurethane to increase its protection from corrosion. The ruggedized keypad uses all-metal Braille and alpha-numeric keys. There is also an internal sounder that is used to indicate key press feedback. The ruggedized keypad’s housing can be mounted to a variety of surfaces. Suggested mounting includes; gate goosenecks, post, concrete walls, etc.

Features

• 120 users
• Indoor/outdoor self-contained brushed metal housing, weather-resistant
• Surface mount vandal-resistant design
• One-piece housing suitable for wall, post, or gooseneck mounting
• Durable metal Braille alpha-numeric keys
• 4 onboard programmable timed relays
• Tamper loop functionality mode: 212, 232

Technical Specifications

• Current draw: 108 mA maximum (add 30 mA for each additional relay)
• Operation voltage: 12-24 VAC/VDC – auto adjusting
• Dimensions: 3.00″ W x 4.50″ H x 1.55″ D (212SE) / 3.75″ W x 5.25″ H x 2.50″ D (212R)
• Temperature tolerance: -20F to 130F
• Order number: 0-212140 (212SE) / 0-211466 (212R)

Product Literature

• Linear 212 SE/R Instruction Manual
