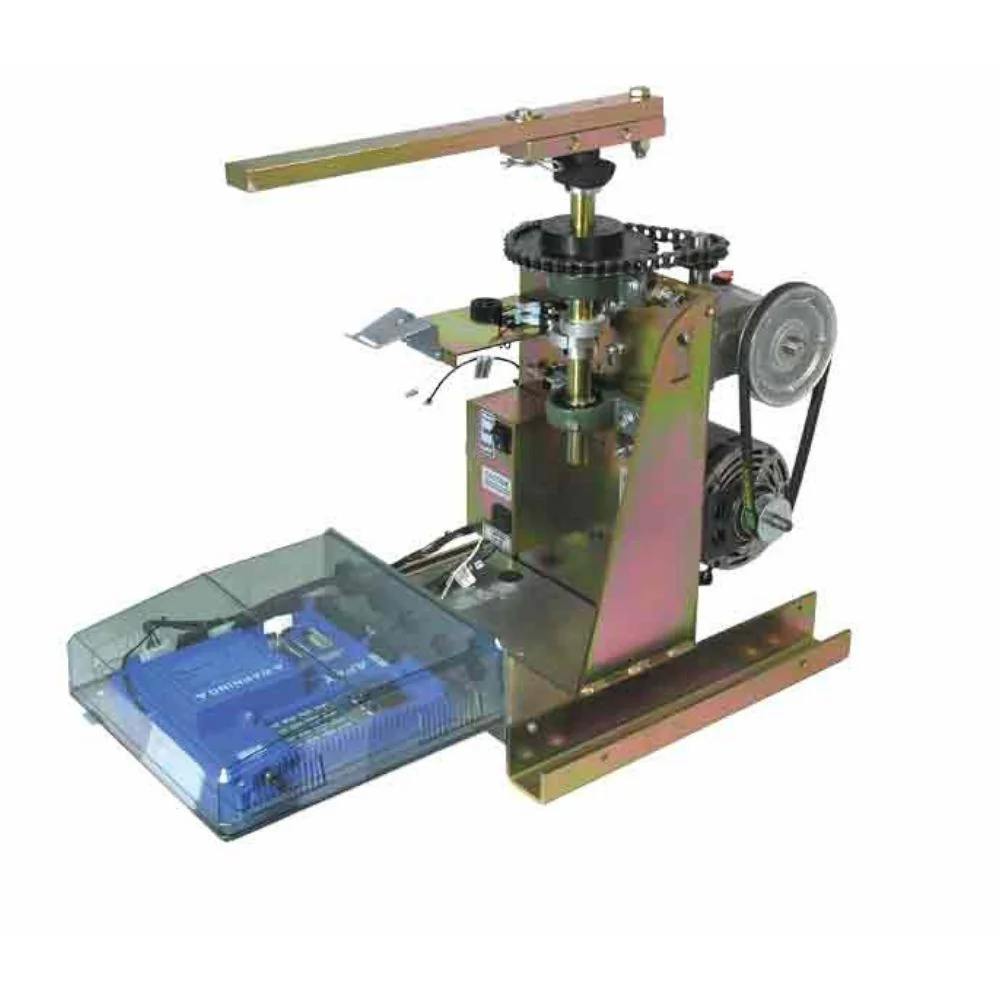

Linear SWR 1/2 HP Residential Swing Gate Operator

SWR Series residential duty swing gate operator series, available in 1/2 horsepower, 115V or 230V supply voltage, 11-14 second gate opening speed.

Note: The product has already been discontinued and replaced with Vanguard 3501.

Features

• APeX™ Controller
• Black polyethylene cover
• Built-in MegaCode receiver
• Quick disconnect crank assembly
• Exterior reset button
• ETL Listed for UL 325 (Class I-IV) for U.S. and Canada

Electrical

• Integral entrapment sensing system with a digital setpoint for quick accurate adjustment and enhanced safety
• Continuous-tone entrapment alarm with reset button
• LED diagnostic display for ease of setup and troubleshooting
• Selectable pre-start and run alarm with provision for ADA-compliant visual pre-start and run alarm
• Regulated 24 Volt DC power available for access control accessories
• Integrated maximum run and auto close timer (0-9 minutes)
• Built-in networked dual-gate capability using 3-wire shielded cable

Mechanical

• Heavy-duty, zinc-plated, steel chassis
• Lockable steel access door
• Universal pad mount standard; optional post-mount kit

Warranty

• 5 years

Technical Specifications

• HP: 1/2
• Voltage & Phase: 230V - 1PH, 115V - 1PH
• Drive Type: Crank
• Max. Gate Length: 17 ft.
• Max. Gate Weight: 500 lbs.
• Seconds to open: 11-14 sec.
• Maximum duty cycle: 150 cycles per day

Product Literature

• Linear SWR Series Installation Manual
