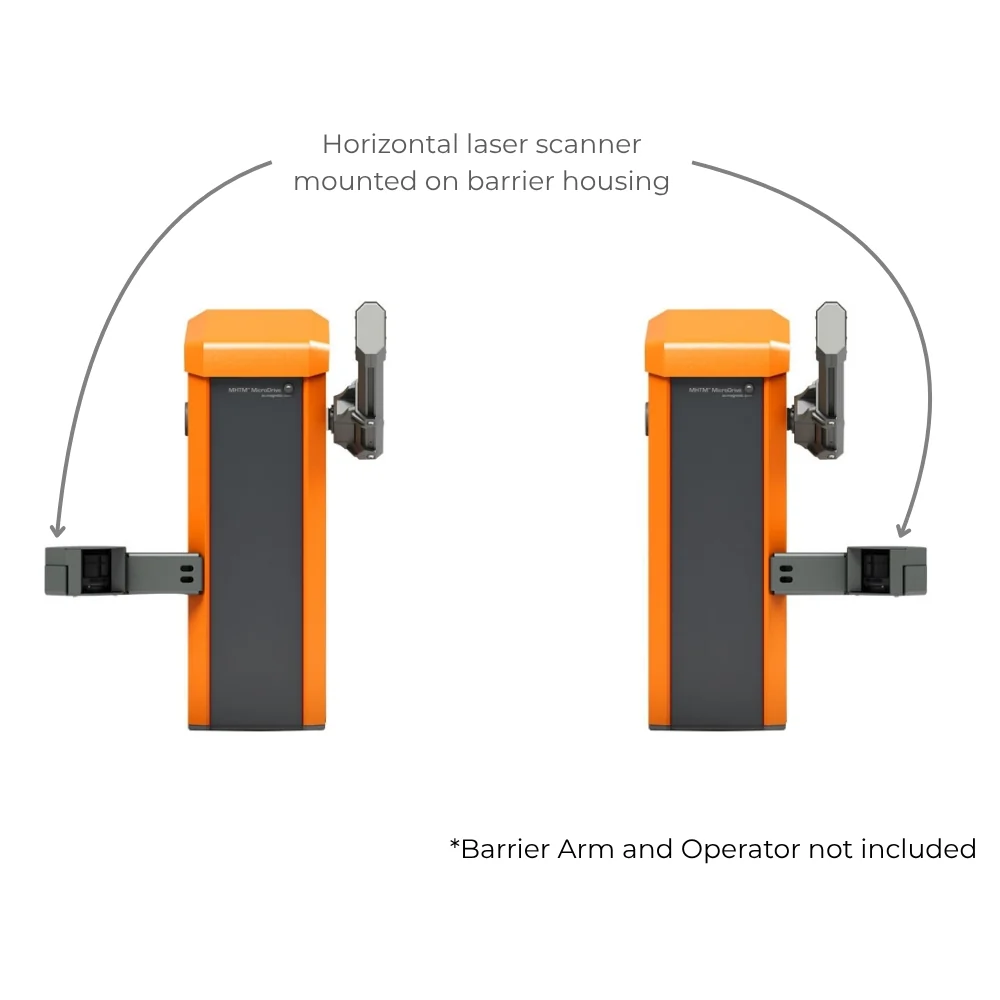

Magnetic Autocontrol Horizontal Scanner Mounted on Barrier Housing (Uninstalled) | MAG-MLHH01_E

Reliable detection of vehicles and persons to accelerate passage or for installation situations that prevent the use of induction loops.

The Horizontal Laser Scanner expands the scope of applications for your Magnetic barriers. It can be used wherever barriers with high impact forces are intended to provide rapid processing, but not bar pedestrian passage. The laser scanner reliably detects vehicles and persons, ensuring maximum personal protection. Another area of use is in structural situations where no induction loops can be installed or when optimum operation is prevented by, for example, electrical ramp heating.

The laser scanner inspects a field area of max. 32 x 32 ft. The scanning area can be divided into one safety field and one opening field. Vehicles and persons are detected within the safety field; only very small objects (such as pendulum supports) are cut out. Depending on the selected settings, the barrier only opens when a vehicle is detected, not a person. The barriers then only close when nobody is present within the safety field. The laser scanner generates four overlying beams, effectively suppressing any interference.

Includes

• Power Supply

Manufacturer's Warranty Period

• 1 year

Note: This product has an updated part number.

• New Part Number: MLHH01_E (Old Part Number: MLHH01-E)
