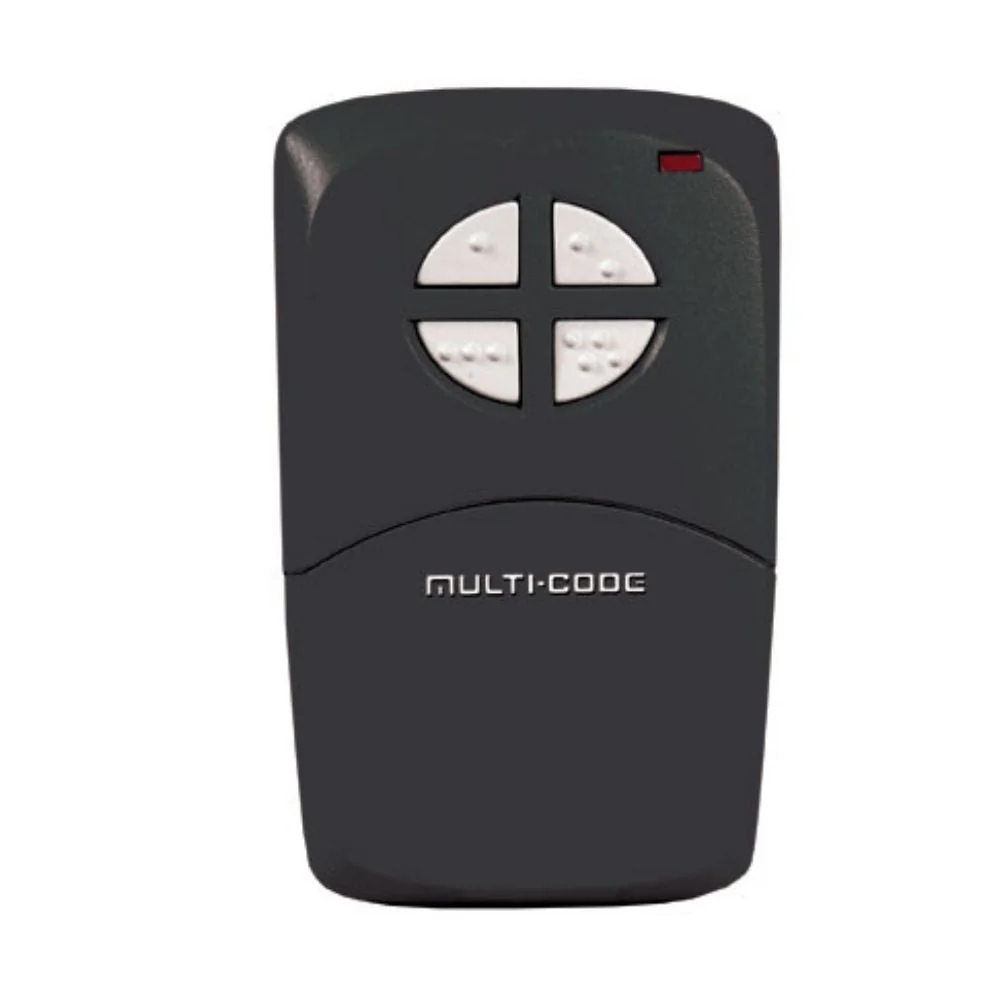

Multi-Code 4-Channel Visor Transmitter | MUL-109710

A portable transmitter designed for automatic door and gate operator applications. This transmitter is a four-channel device. Each button activates one of the four channels.

The Multi-Code format with two 10-position coding switches provides 512 possible codes for each channel. The transmitter will only activate receivers set with the same code.

Includes

• Visor Clip

Features

• Supplied with visor clip

• Easy access to battery and coding switches
• Buttons feature raised dimples for easy, or vision-impaired identification
• Test/operate indicator

Compatibility

• 310 MHz Stanley Receivers
• Multi-Code 109950 Receiver
• Multi-Code 302850 Receiver
• Multi-Code 309013 Receiver

Technical Specifications

• Power: 9-volt battery
• Codes: 512 per channel (set by dip switches)
• RF frequency: 310 MHz
• Dimensions: 2.5″ W x 3.75″ H x 0.875″ D

Product Literature

• Multi-Code 109710 Installation Manual
• Multi-Code 109710 Product Brochure
