Multi-Code Safety Edge Transmitter | MUL-302210

This transmitter is for adding obstacle sensing for motorized gates or barrier arms. Using a safety edge transmitter is more economical and discrete than the traditional coiled cord connection method.

The transmitter mounts directly on the gate or barrier arm and wires to a standard exterior safety edge sensor (a Miller gate edge sensor is recommended). If an obstacle is encountered, the sensor will present a closed circuit across the connecting wires and the 302210 will transmit a message to the receiver signaling entrapment to the gate operator. The operator then stops or reverses the movement of the gate.

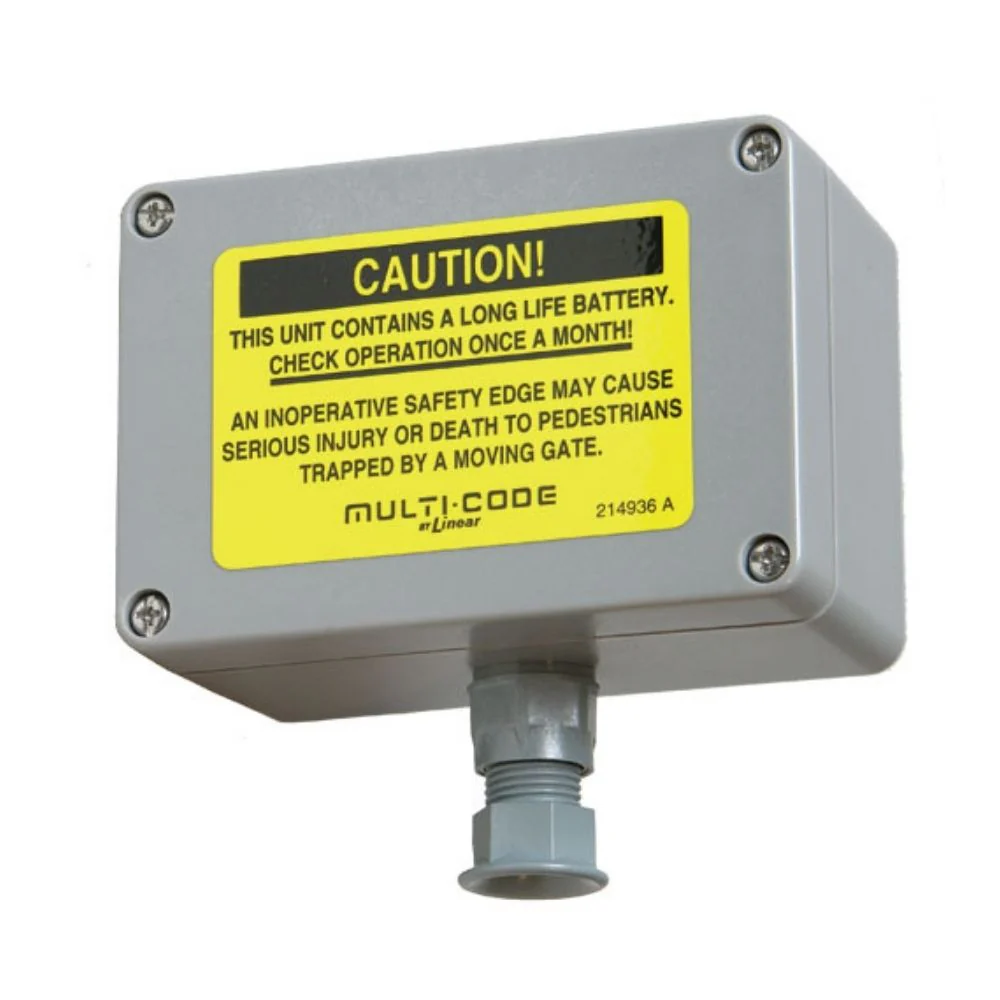

The 302210 transmitters are supplied in a weather-resistant, fiberglass box. Its circuit board is coated to prevent moisture damage. The enclosure mounts to the gate, door, or barrier arm through sealed interior mounting screws.

Compatibility

• 300 MHz Multi-Code Receivers
• Linear 109950 Receiver
• Linear 302850 Receiver

Features

• Safety edge transmitter
• Activates receiver for a stop or reverse entrapment
• No cables or coiled wires
• Mounting hardware (4 screws) supplied

Technical Specifications

• Power: 9-volt battery
• Codes: 1,024 (set by dip switches)
• RF frequency: 300 MHz
• Dimensions: 4.28″ W x 2.875″ H x 2.25″ D

Product Literature

• Multi-Code 302210 Installation Manual
• Multi-Code 302210 Product Brochure
