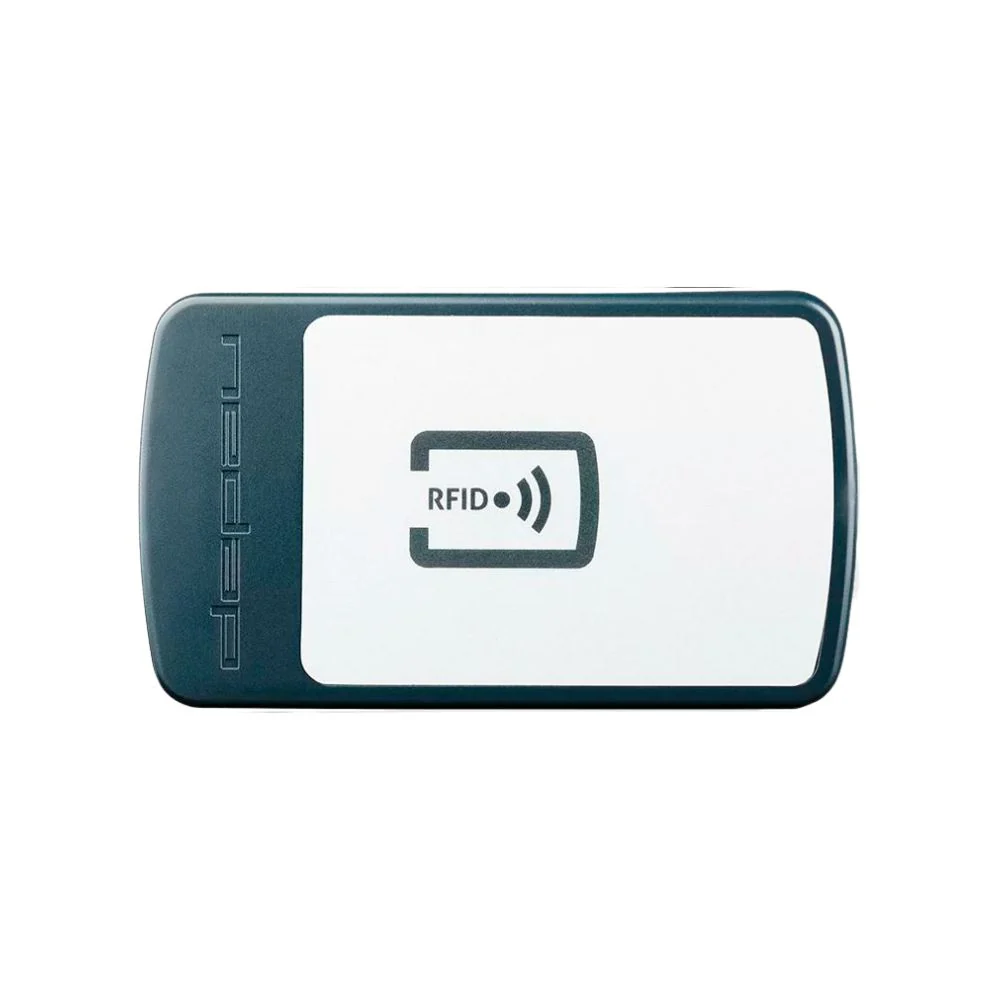

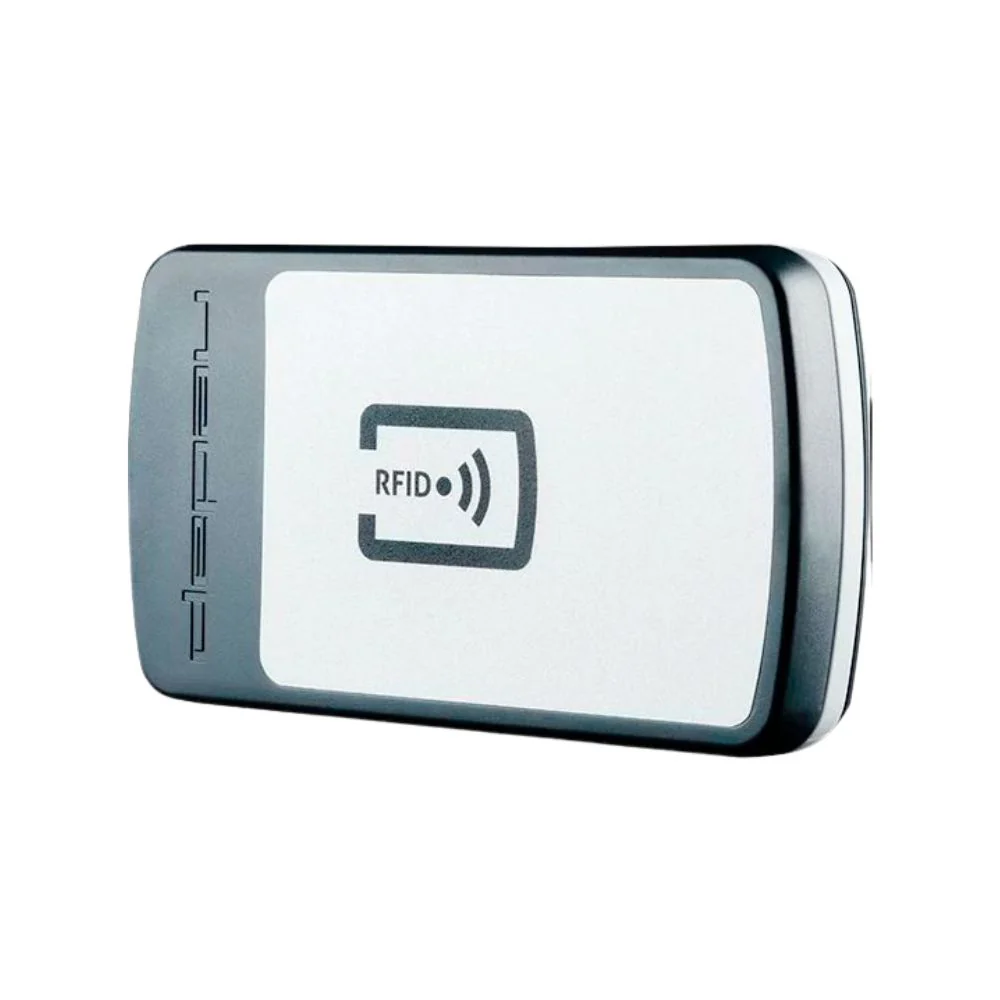

Nedap Window Tag Ultimate (Pack of 10) | NED-9564314

The Window Tag Ultimate is a long-range vehicle identification tag. Based on semi-active RFID technology (2,45 GHz), the Window Tag Ultimate is identified at distances up to 10 meters (33 feet) with Nedap’s TRANSIT Ultimate reader.

Note: The advanced tag authentication function is only functional when the Security Key Pack has been installed in the TRANSIT Ultimate.

Typical Applications

• Applications where vehicles need to be identified
• Secure vehicle access to corporate sites, gated communities, and parking facilities.

Read-only

The Window Tag Ultimate is read-only factory programmed with a unique customer-specific security code, a customer-defined tag ID number, and unique AES128 authentication encryption keys. The part number, tag ID number, and date of manufacture are laser etched into the back case of the tag.

User activation

For applications that require user activation, the Window Tag Ultimate can be applied. This tag is designed for situations where the driver determines the time and distance of the vehicle being identified. When the switch on the front of the tag is activated by the driver, the tag ID is transmitted to the TRANSIT reader for 5 seconds.

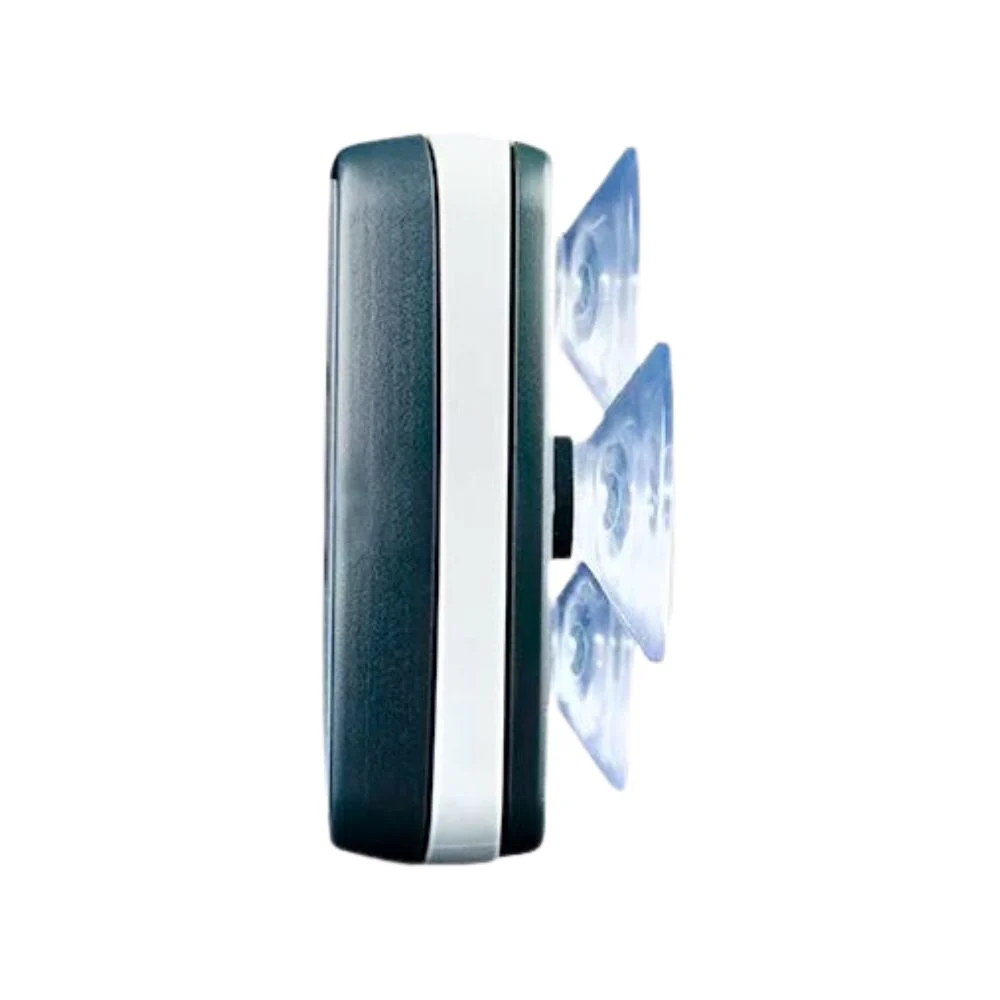

Windshield mounting

As the Window Tag Ultimate is equipped with suction pads on the backside, it can be mounted onto the windshield easily. Thanks to this convenient design, installing the Window Tag Ultimate only takes seconds.

Two frequencies

The Window Tag Ultimate uses the 2,45 GHz for reliable identification and the 433 MHz frequency for advanced tag authentication* using AES standards.
