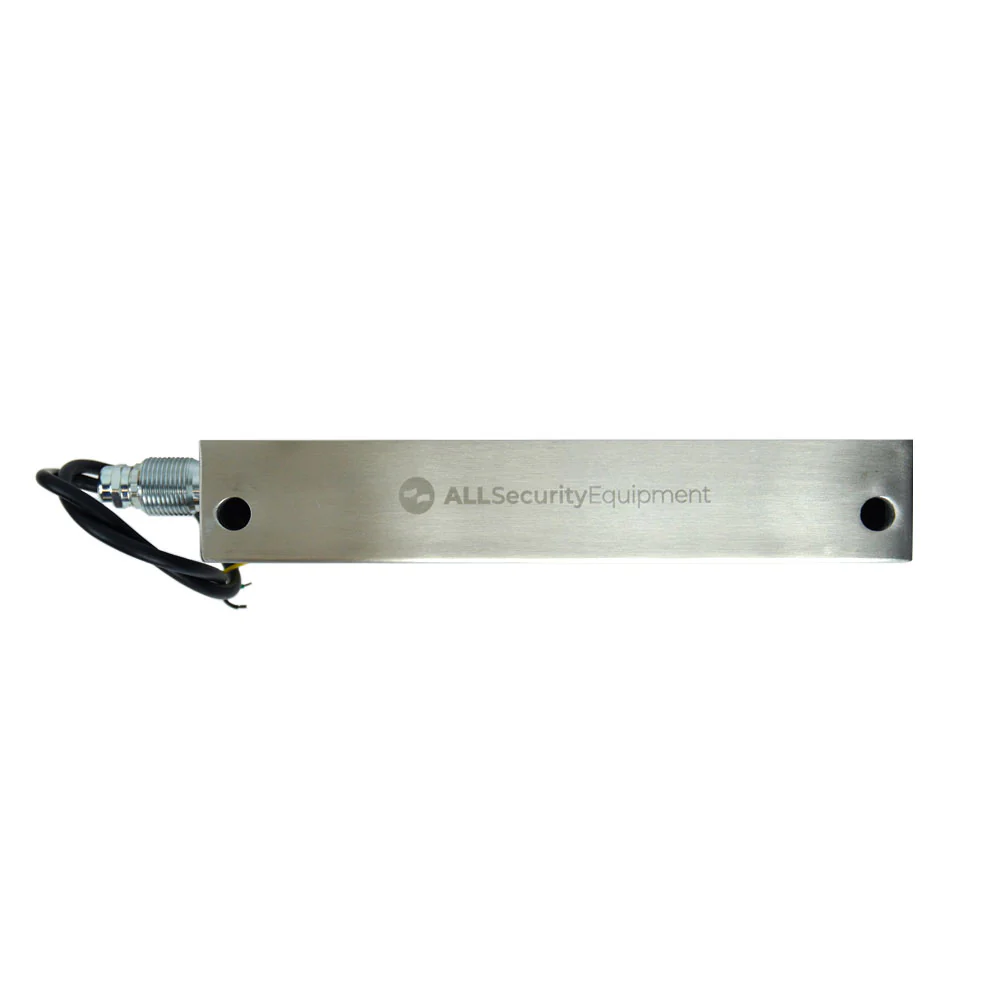

ASE Outdoor Magnetic Lock 1200 lb. Holding Force | FAS-OUT1200

Stainless steel weatherproof magnetic gate lock designed for outdoor use. Heavy-duty weatherproof construction and attached conduit for connection.

Our maglocks come with a mounting plate to allow for better positioning and easy installation. Just attach the plate to the gate and then screw in the maglock when the plate is set correctly.

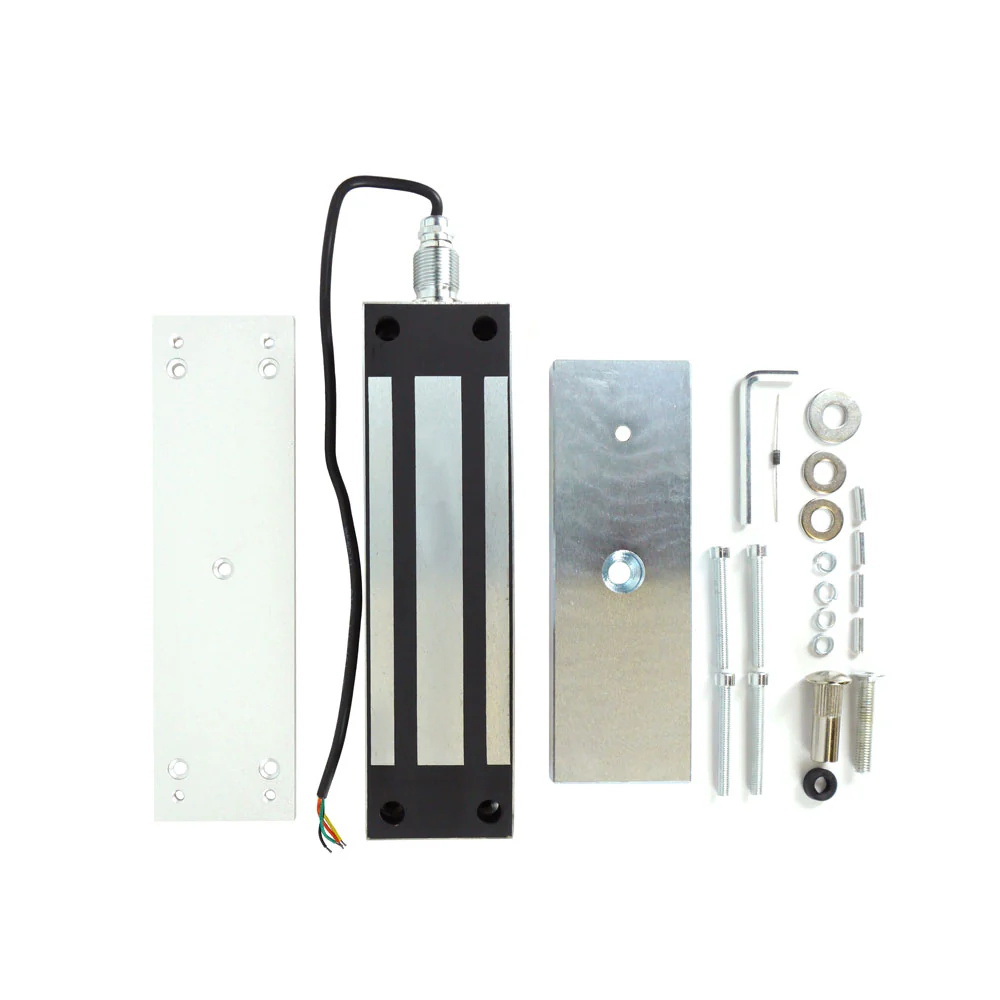

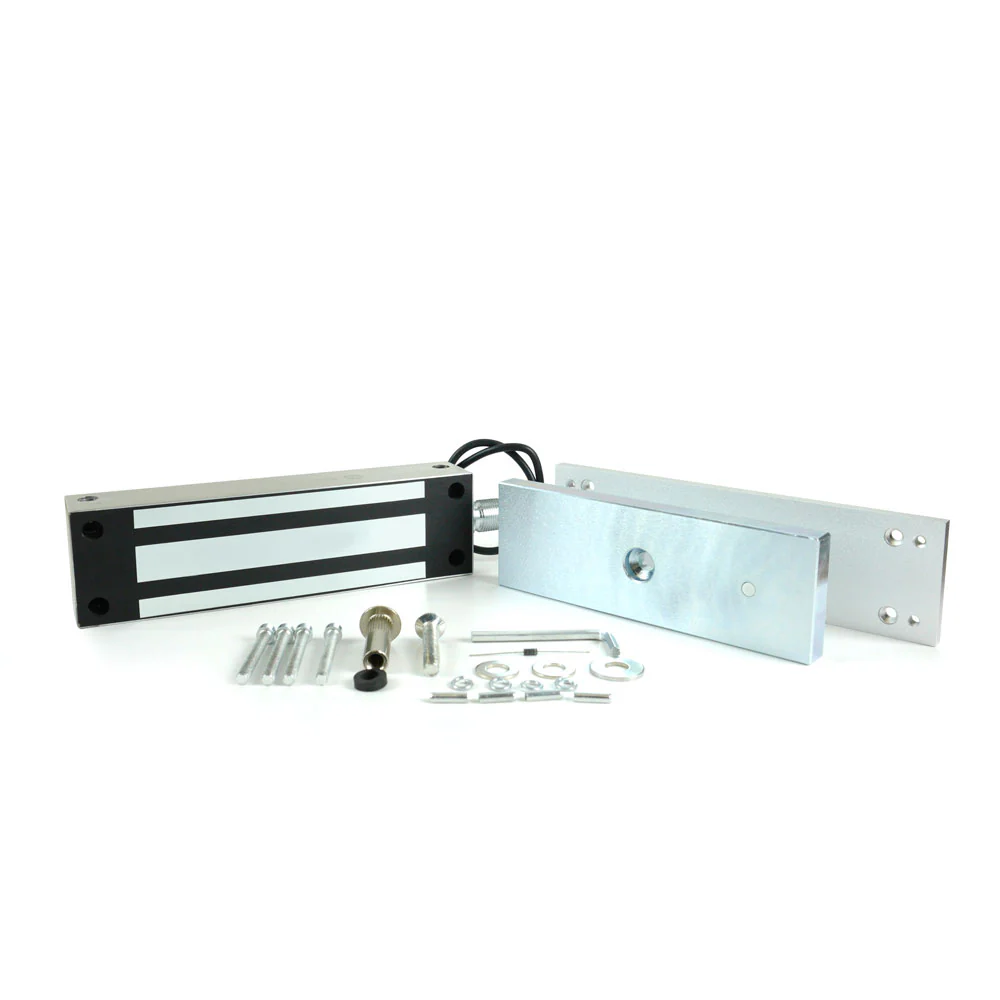

Includes

• Manual
• Armature Plate
• Mounting Hardware For Basic Out-swing Applications

Features

• Heavy-duty stainless steel housing for weatherproof
• Fully sealed for water resistance
• A magnetic bond sensor monitors the output
• Side and face fixing

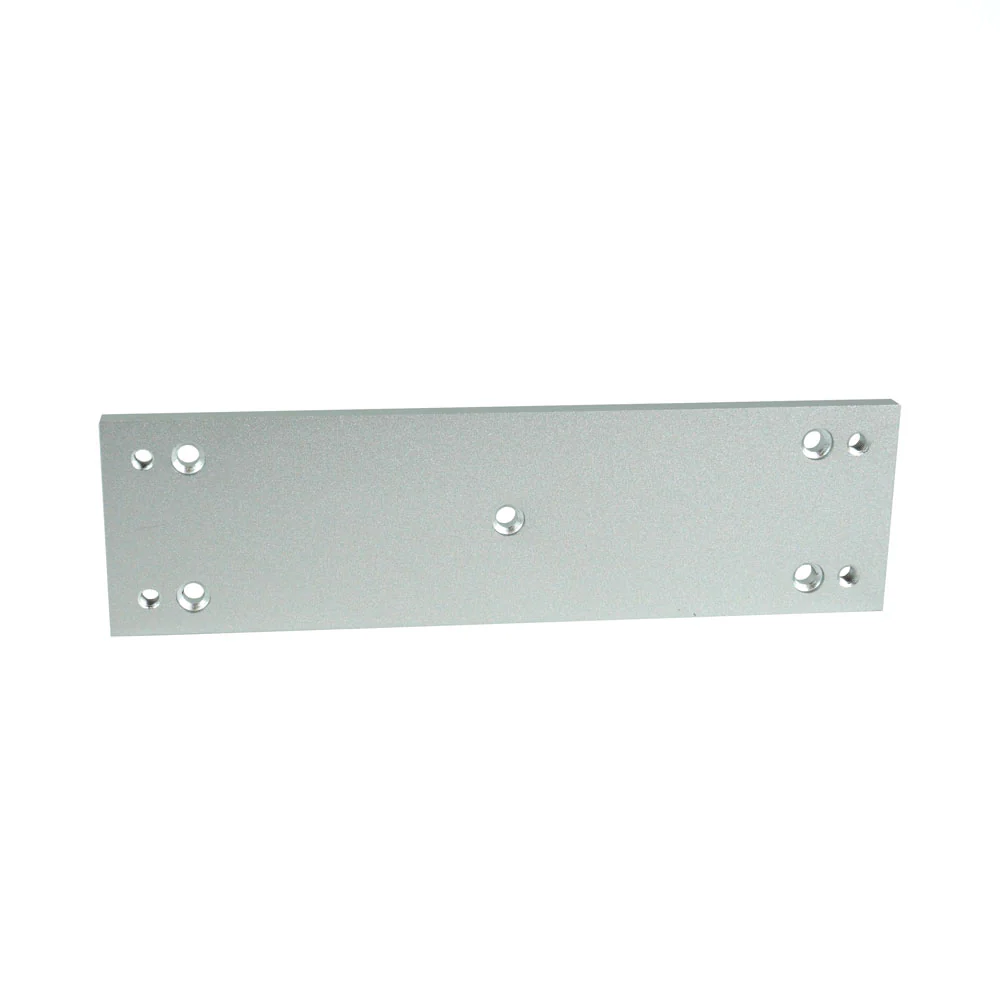

• Easy installation mounting plate

Technical Specifications

• Holding force: Up to 1200 lbs.
• Dual voltage:  12Vdc / 24Vdc

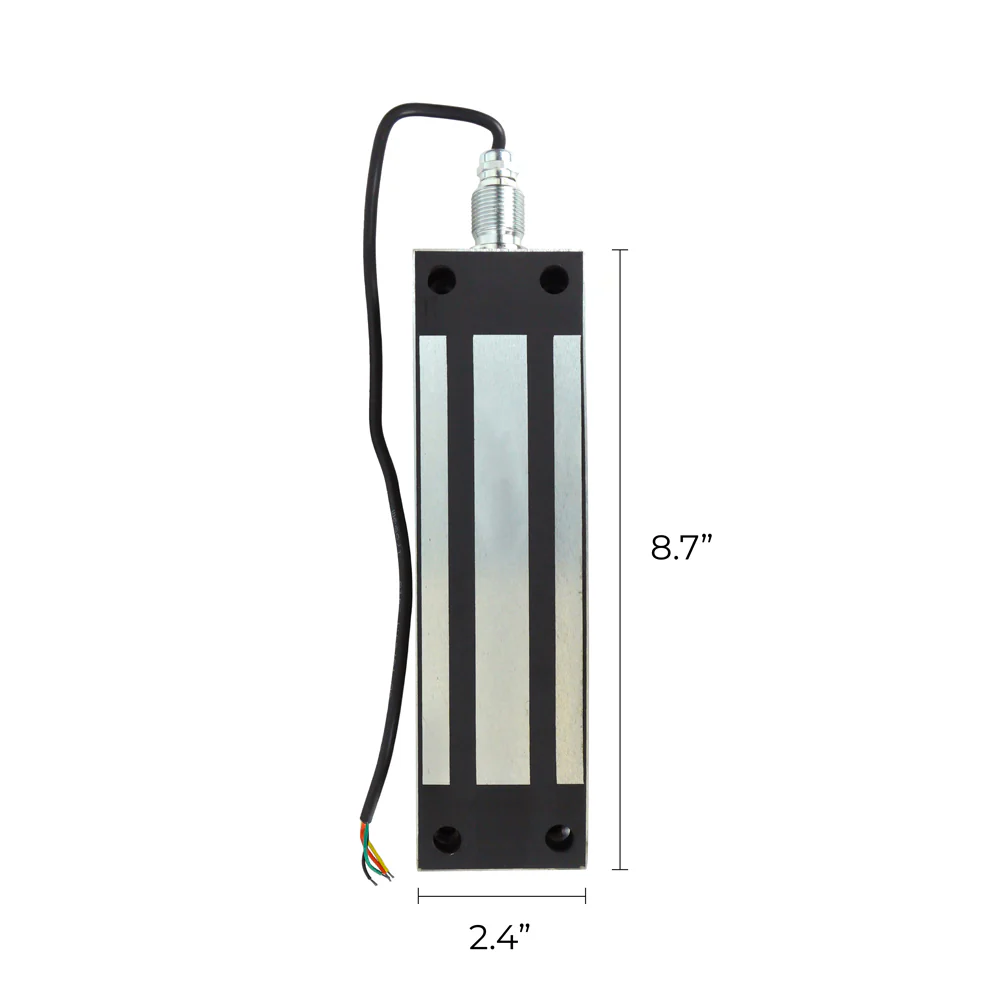

• Magnet: 8.7"(L) X 2.4"(W) X 1.6"(H)
• Armature zinc plated: 7.3"(L) X 2.4"(W) X 0.6"(H)
• Weight: 11 lbs(approx.)

Manufacturer's Warranty

• 2 Years

Note

• **In-Swing applications of this maglock require brackets (available above)

Product Literature

• FAS-OUT1200 Magnetic Lock Manual
• FAS-OUT1200 Magnetic Lock Dimensions
