Pach and Company Quantum Q7000VOIP Series Residential Intercom (250 Tenants) Surface Mount | PAC-Q7000VOIP

VOIP Web-Based Multi-Tenant Systems with Free Phone Bill with Google Voice

Note: Must have internet service.

Features

• AATA2 included (Nominal monthly fees and taxes required based on zip code for activation)
• Web-Based Remote Programming
• 26-Bit Wiegand Input
• QWCM IP module
• Remote access touch-tone phone
• Programming via LAN, WAN, Direct Connect, or System's Keypad
• No dedicated IP needed
• Backlit Keypad
• Postal Lock Ready

Manufacturer's Warranty

• 24 Months

Technical Specifications

• Input Power: 12VAC/12VDC Transformer Included
• Current Consumption: 1200mA
• Operating Temperature: 10ºF to 145ºF
• Liquid Crystal Display: 16 x 1, Viewing area 99mm x 13mm
• Tenant Capacity: 250
• Card Capacity: 600
• Code Capacity: 600
• Auto Door Schedules: 10
• Time Zones: 10
• Holidays: 20
• Temporary cards/codes: 10 cards/codes up to 10 times used
• Unlock Hold Door with cards/codes: 10 cards/codes
• Unlock Hold Door Timer: 1-98 hours
• Dry Contact Relay: 2
• Door Sensor: 2
• Auxiliary Input: 2, Programmable
• Satellite Access Control RS-485: max. 8 card reader, keypad, or combo
• Event report: 600 buffer
• Dimension (HWD): 10-13/16” x 8-5/8” x 3-3/4”

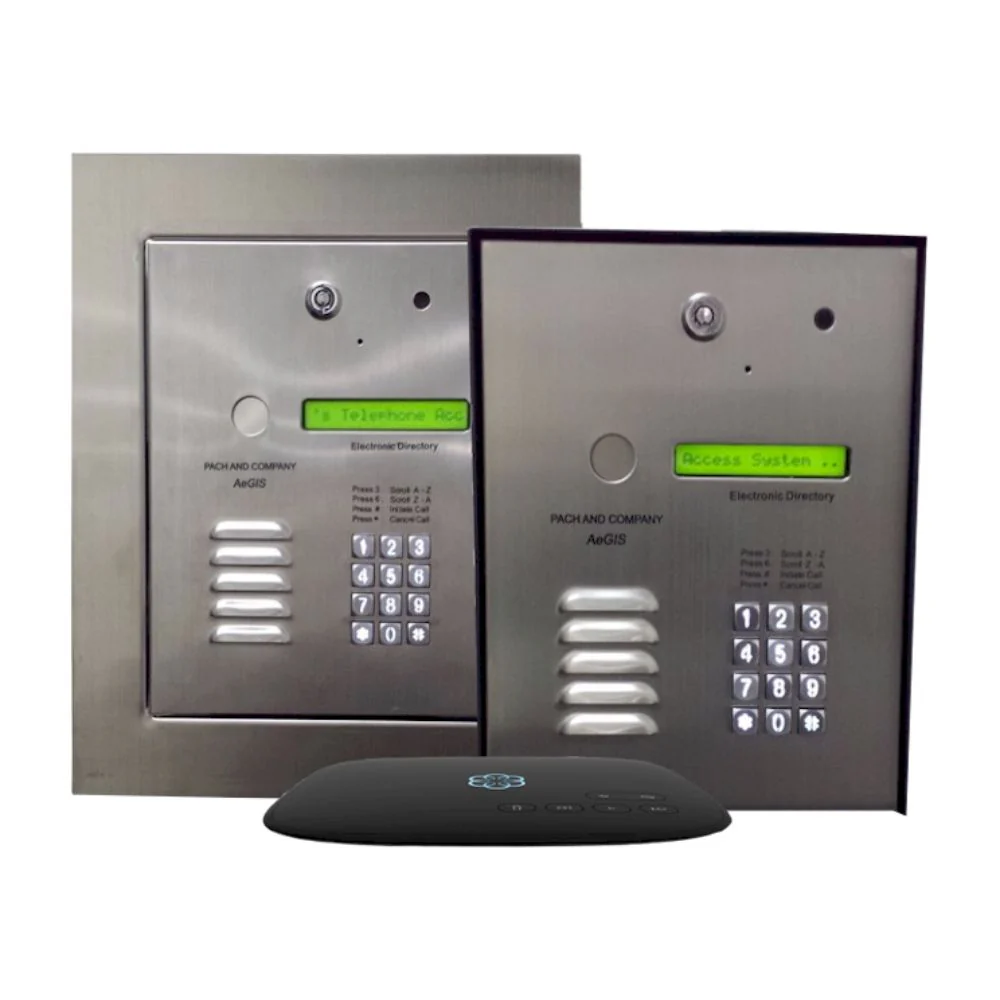

Note: The image shown is the full flush mount and surface mount version. If you need the Full Flush Mount Version please click here: PAC-Q7000VOIPFF

Product Literature

• Pach and Company Q7000VOIP Series Cut Sheet
• Pach and Company Q7000VOIP Series Quick Guide
• Pach and Company Q7000VOIP Series Programming Manual
• Pach and Company QWCM Manual
