Pach and Company Quantum QC Series Multi-Tenant System (250 Tenant) Surface Mount | PAC-QC2IP

Quantum QC Series Analog Web-Based Multi-tenant Systems (250 Tenant)

250 tenants, 1000 cards/codes, IP browser, Built-in 26-bit Wiegand, rs-485, Surface mount.

Manufacturer's Warranty

• 24 Months

Technical Specifications

• Input Power (12VAC included): 12VAC/12VDC
• Current Consumption: 900mA
• Operating Temperature: 10°F-145°F
• Liquid Crystal Display (LCD): 16 x 1
• Tenant Capacity: 250
• Telephone Line: Analog
• Code Capacity: 1000
• Card Capacity (Built-in Proprietary Reader): 1000
• Dry Contact Relay: 2
• Auto Door Schedules: 10
• Time Zones: 10
• Holidays: 20
• Unlock hold cards/codes: 10
• Temporary Cards/codes: 10, 10 times used
• Unlock Hold Timer: 1-98 hours
• Auxiliary Input: 2
• Door Sensor: 2
• Event Report: 600 buffer

• Satellite Access Control RS-485 (slave) reader, keypad or combo: Max. 8
• Dimensions (HWD): 6-7/16" x 10-3/8" x 3-1/2"

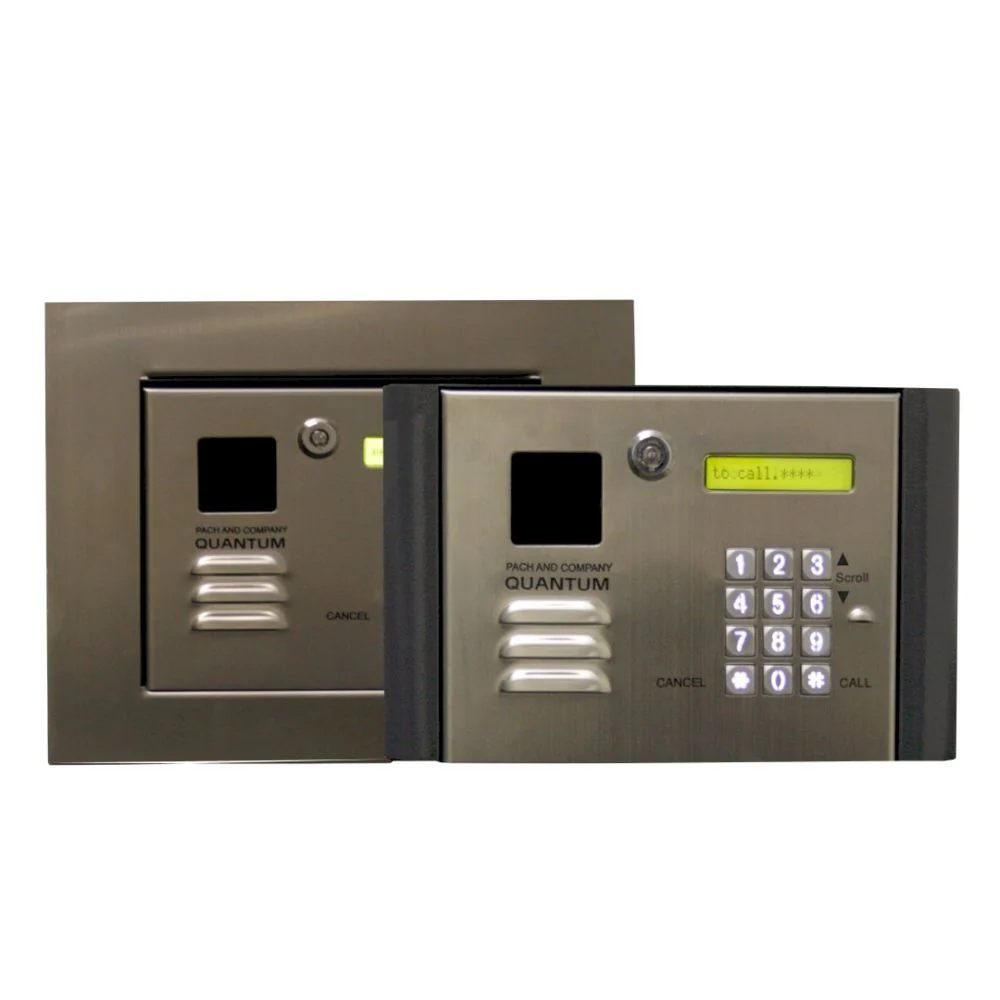

Note: The image shown is the full flush mount and surface mount version. If you need the Full Flush Mount Version please click here: PAC-QC2IPFF

Product Literature

• Pach and Company QC Series Cut Sheet
• Pach and Company QC Series Quick Guide
• Pach and Company QC Series Manual
