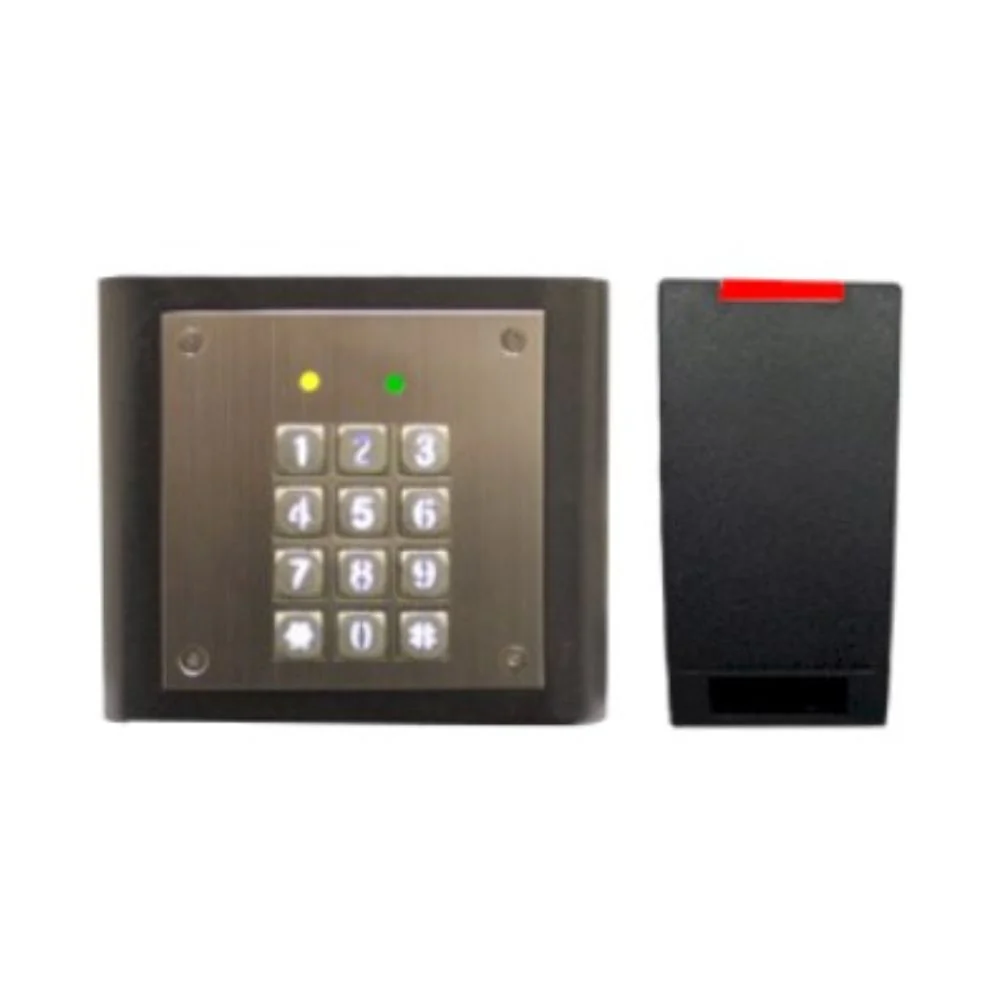

Pach and Company Proprietary 26-Bit Weigand Slave Reader-Keypad for Quantum Series | PAC-USKPR

Satellite Keypad and Card Reader Combo

Features

• Up to 8-32 USKPR can be interfaced with the Quantum Series
• Single relay
• Audible tone and LED indicator for valid and invalid access
• Independent access
• 4-Digit access code and 26-BIT Wiegand Reader
• Brushed stainless steel, dark gray powder-coated back box
• Tamper Proof Screws
• Indoor or outdoor

Manufacturer's Warranty

• 24 Months

Technical Specifications

• Power Input: 12VAC 40VA or 12VDC 2 Amps (12VAC is supplied by Pach & Company).
• Current Consumption: 50mA Idle, 475mA operation
• Emergency Battery: 12VDC, 4Ahr rechargeable (customer supplied)
• Communication: RS-485 (maximum distance not to exceed 4000 ft, daisy chain connection)
• Operating Environment: 10°F to 145°F. Relative Humidity 0% to 95%
• Relay Output: From C Dry Contact 120VAC 10A/ 24VDC 10 A/ 250VAC 7A with 5 seconds output duration
• Mounting: Surface, Indoor or outdoor
• Construction: 16 Gauge Cold Rolled Steel with Brushed Stainless Steel Faceplate
• Dimensions
• Main Unit: 6-1/8”” (H) x 7-1/16“ (W), 1-1/2” (D)
• Card Reader: 4-1/16"(H) x 1-7/8" (W) x 13/16" (D)
• Weight: 5 lbs.

Product Literature

• Pach and Company USKPR Cut Sheet
• Pach and Company USKPR Manual
