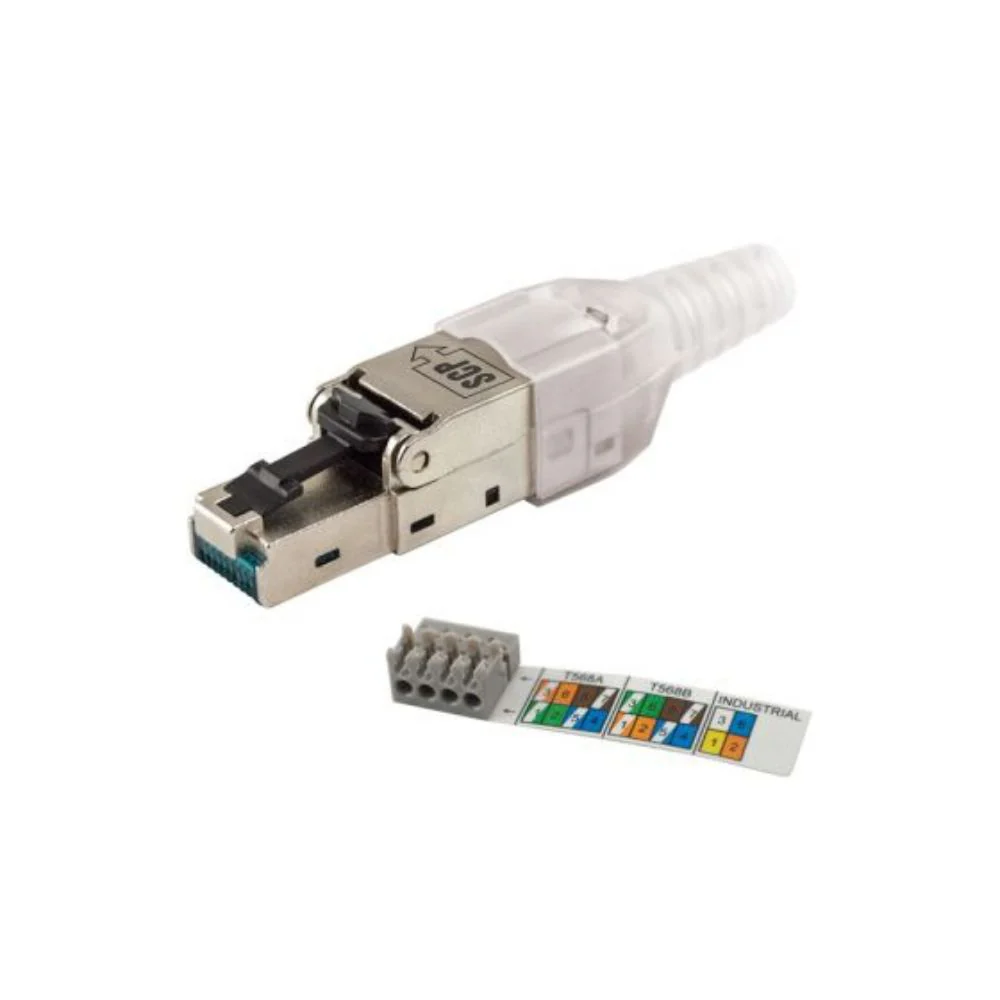

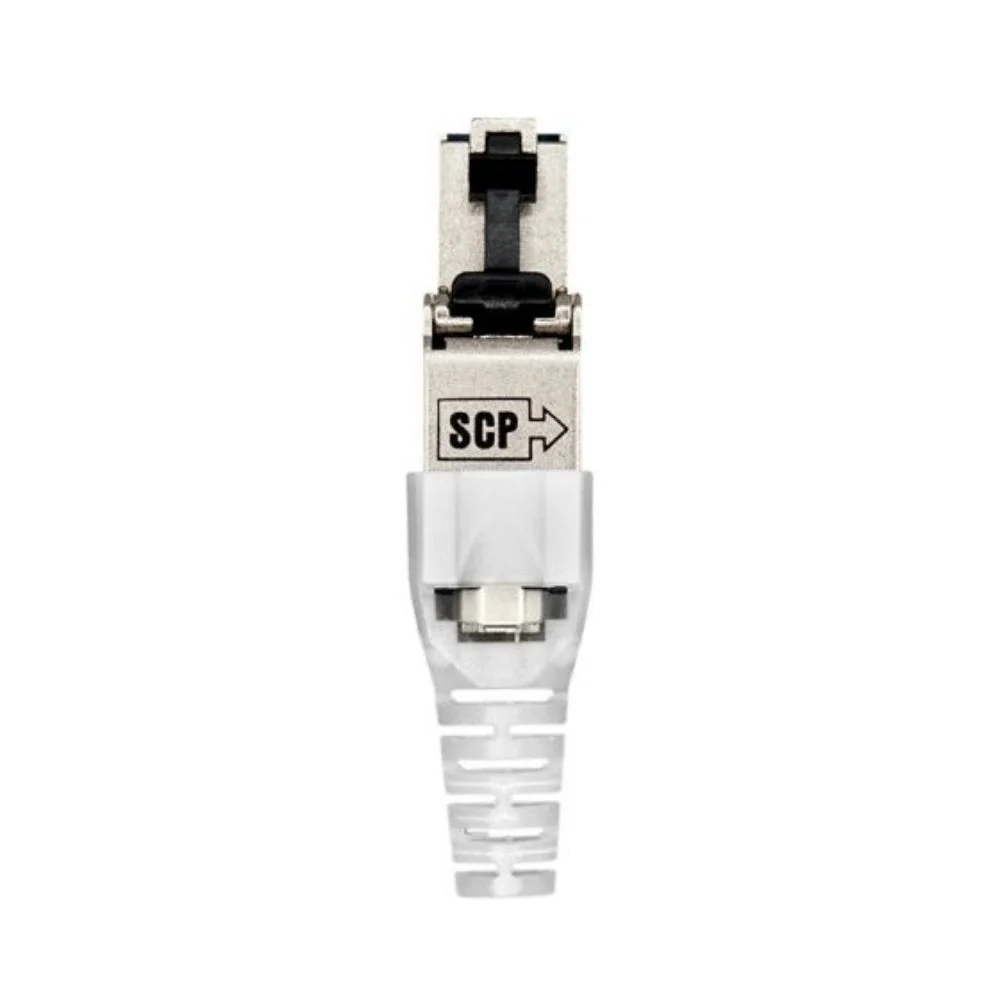

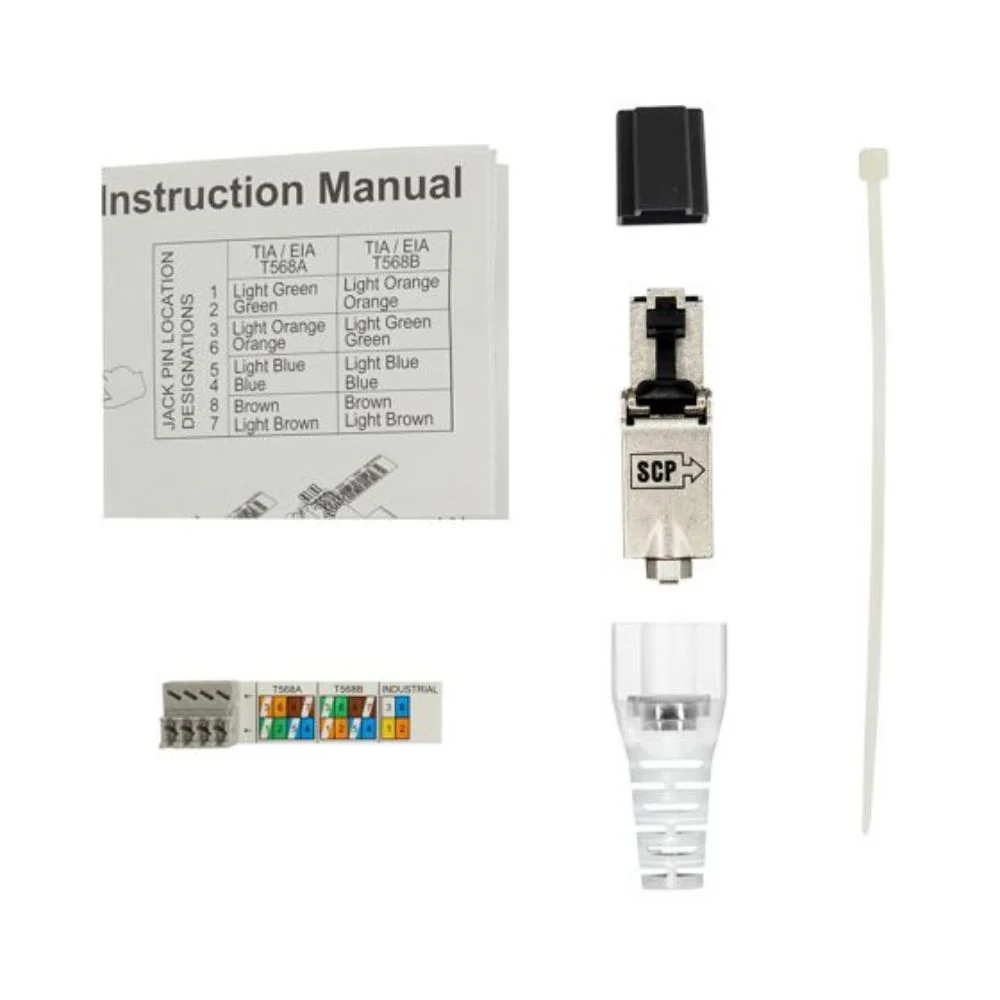

SCP ProGrade 10GBaseT Shielded RJ45 Field Plug (Sold by 10) | SCP-10G-FP

SCP ProGrade 10G RJ45 Field Plugs - Best Solution for 10G & HDBaseT™ Cable Terminations.

SCP 10G-FP is commonly used for quick & easy termination for 10G solutions. Obtain highest performance with SCP 10G-FP rated at max loss of .02. Ideal for all unshielded terminations Cat5/6/6a 568a or 568b wiring. Supports 22-26 AWG solid conductors. Highly recommended for PoE applications. This toolless method saves time and provides 100% accuracy for all 8 wires being terminated properly every time. Installer friendly with no special tools required

Features

• Improves system performance
• Fast & easy termination of category cables
• Outperforms other RJ45 connectors
• 26-22 AWG wire gauge
• CAT7A | CAT7 | CAT6A | CAT6
• Fully Shielded (10G-FP) for PoE and Chassis grounded systems
• Unshielded (10G-FP-U) for HDBaseT floating power terminations
• HDBaseT PoE+ Compliant
• 1 Piece design
• Load bar for faster & easier wire pattern termination
• No Special tools needed
• UL Rated

• Compliance- ISO/IEC 11801 Class Ea / DIN EN 50173-1 / TIA/EIA 568-C.2 Cat6A / IEEE 802.3an 10GBit Suitable

Product Literature

• SCP 10G-FP Datasheet
• SCP 10G-FP Instructions
