SCP CAT5E Shielded Cable PVC - Blue (1000 ft. Box) | SCP-CAT5E-SH-BL

CAT5E SHIELDED 350 MHz 24AWG SOLID BC, 4PR, F/UTP, UL CMR, ANSI/TIA 568.2-D, ISO/IEC 11801 CLASS D

SCP Cat5e Shielded F/UTP cables meet ANSI/TIA 568.2-D Category 5e and ISO/IEC 11801 Class D standards. SCP Cat5e Shielded F/UTP cables are recommended in environments with potential EMI or RF interference. The SCP Cat5e Shielded F/UTP cables are UL and Riser Rated.

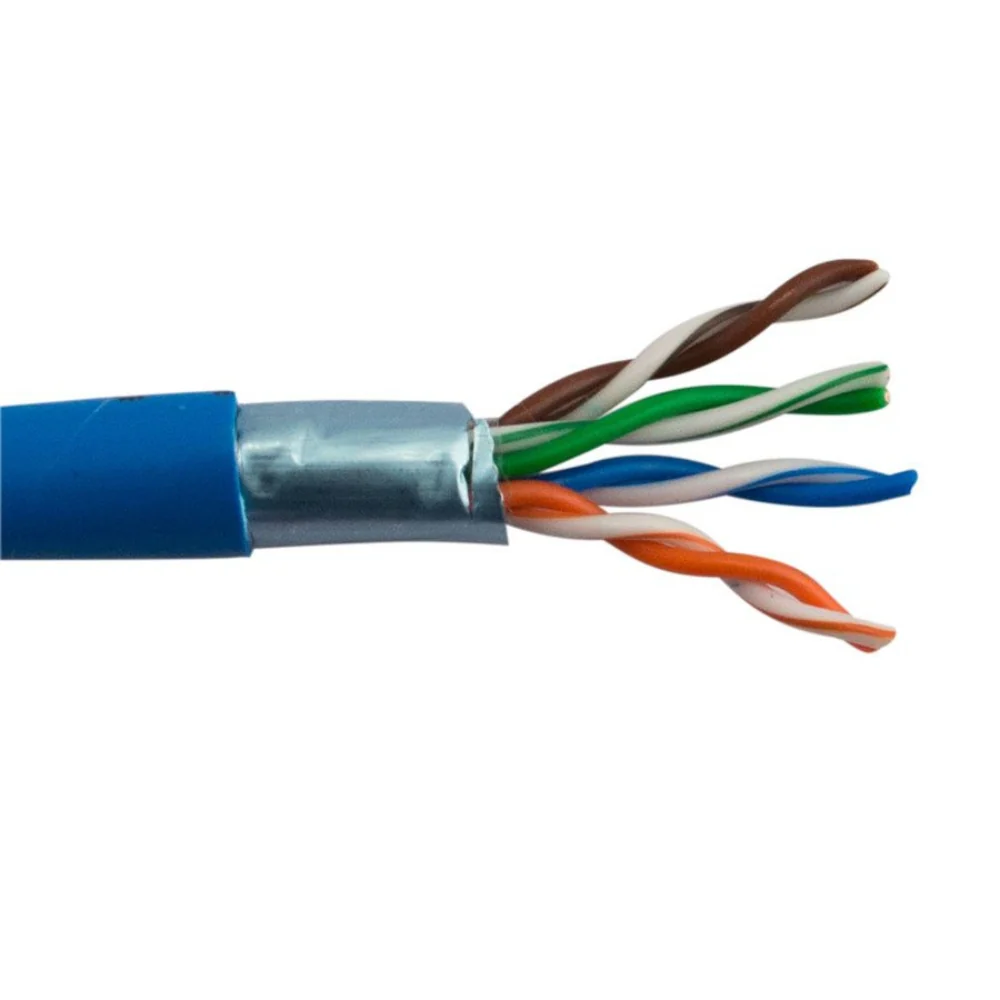

Each Cat5e Shielded F/UTP cable is 350 MHz 24 AWG insulated solid bare copper conductors with a center spline separating the pairs. It is shielded with an overall AL foil shield providing superior noise resistance. This creates a round and flexible cable for easy pulling and stripping of the cable jacket.

Applications

• High-performance IT, LAN & Ethernet installations. Suitable for use in all Class D structured wiring systems. PoE/PoH Compliant.

Features

• 350MHz tested Gigabit Ethernet
• HDBaseT Enhanced
• UL Plenum/Riser Rated
• UV Sun Resistant
• Descending FT and Zone/Outlet Jkt Markings

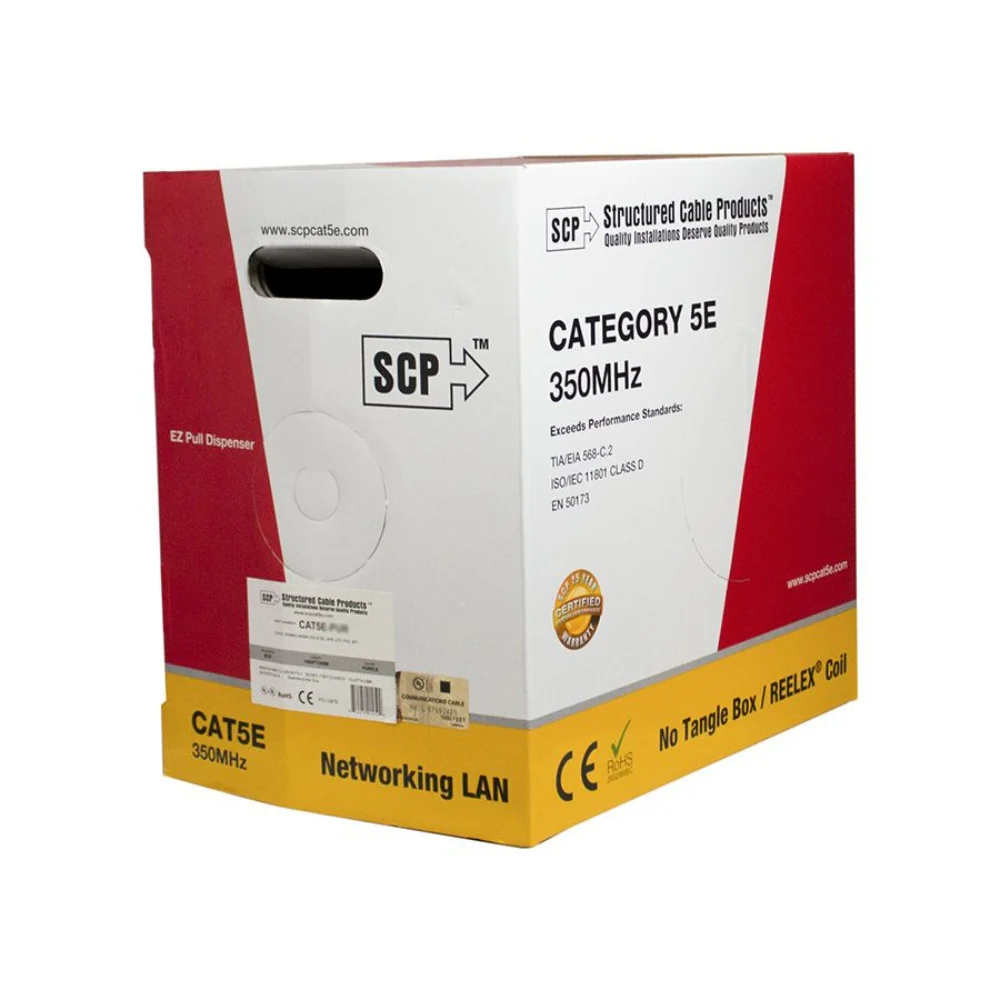

• SCP Tangle-Free Reelex II Boxes

SCP Standard Limited Warranty

• Lifetime Limited Warranty

Product Literature

• SCP CAT5E-SH-BL Data Sheet
