SCP CAT6 Shielded F/UTP Enhanced Cable Plenum - White (1000 ft. Spool) | SCP-CAT6SHP-WT

CAT6 SHIELDED F/UTP PLENUM- ENHANCED 550MHz 23AWG SOLID BC 4PR, F/UTP, ANSI/TIA 568.2-D, ISO/IEC 11801 CLASS E, ETL CMP

SCP Cat6 Shielded F/UTP Plenum cables comply with NFPA-262 and are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low smoke. Only plenum-rated cables are allowed for USA installation in spaces such as raised flooring systems and air handling ducts.

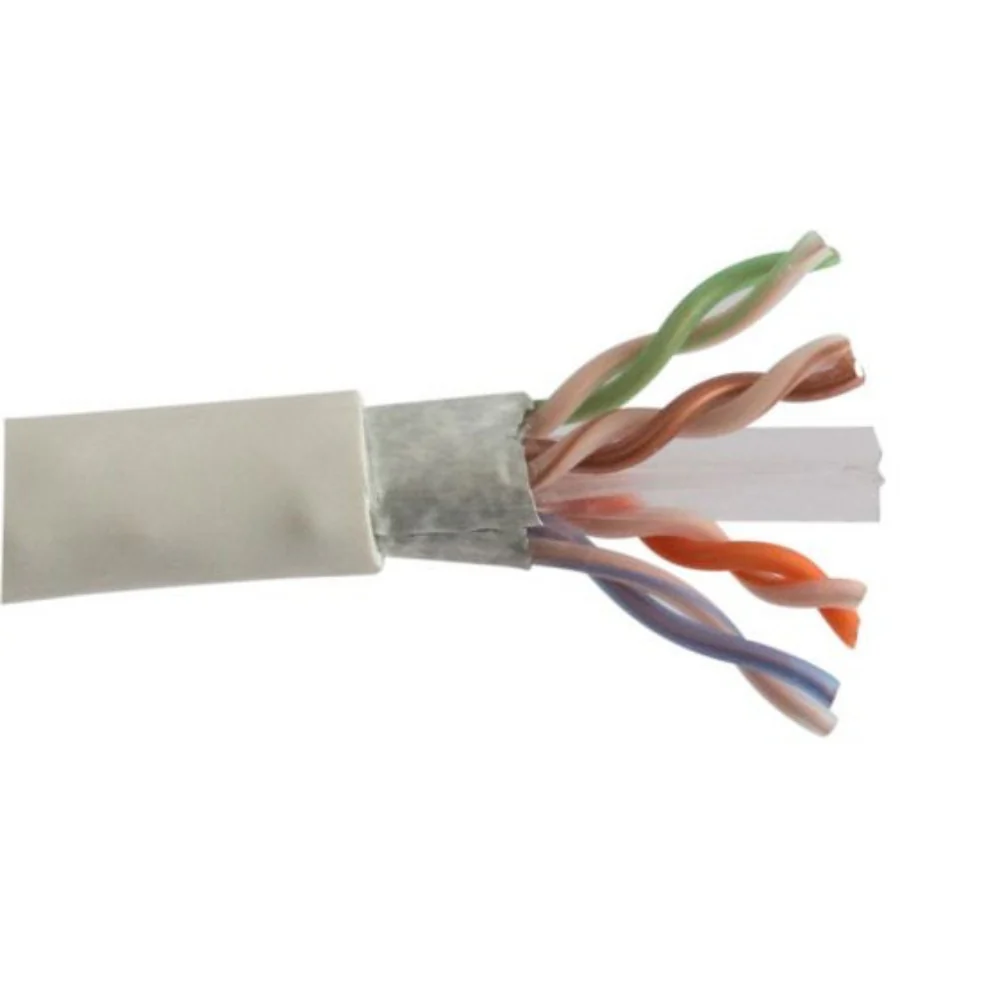

SCP Cat6 Shielded F/UTP Plenum cables meet ANSI/TIA 568.2-D Category 6 standards. Each Cat6 Shielded F/UTP cable is a 550 MHz 23 AWG insulated solid bare copper conductor with a center spline separating the pairs. It is shielded with an overall AL foil shield providing superior noise resistance. This creates a round and flexible cable for easy pulling and stripping of the cable jacket.

Applications

• High-performance IT, LAN & Ethernet installations. Suitable for use in all Class E structured wiring systems. PoE/PoH Compliant.

Features

• 550MHz tested 1000BaseT Gigabit
• HDBaseT Enhanced
• UL Plenum/Riser
• UV Sun Resistant
• Descending FT and Zone/Outlet Jkt Markings

SCP Standard Limited Warranty

• Lifetime Limited Warranty

Product Literature

• SCP CAT6SHP-WT Data Sheet
• SCP CAT6SHP-WT DOP
