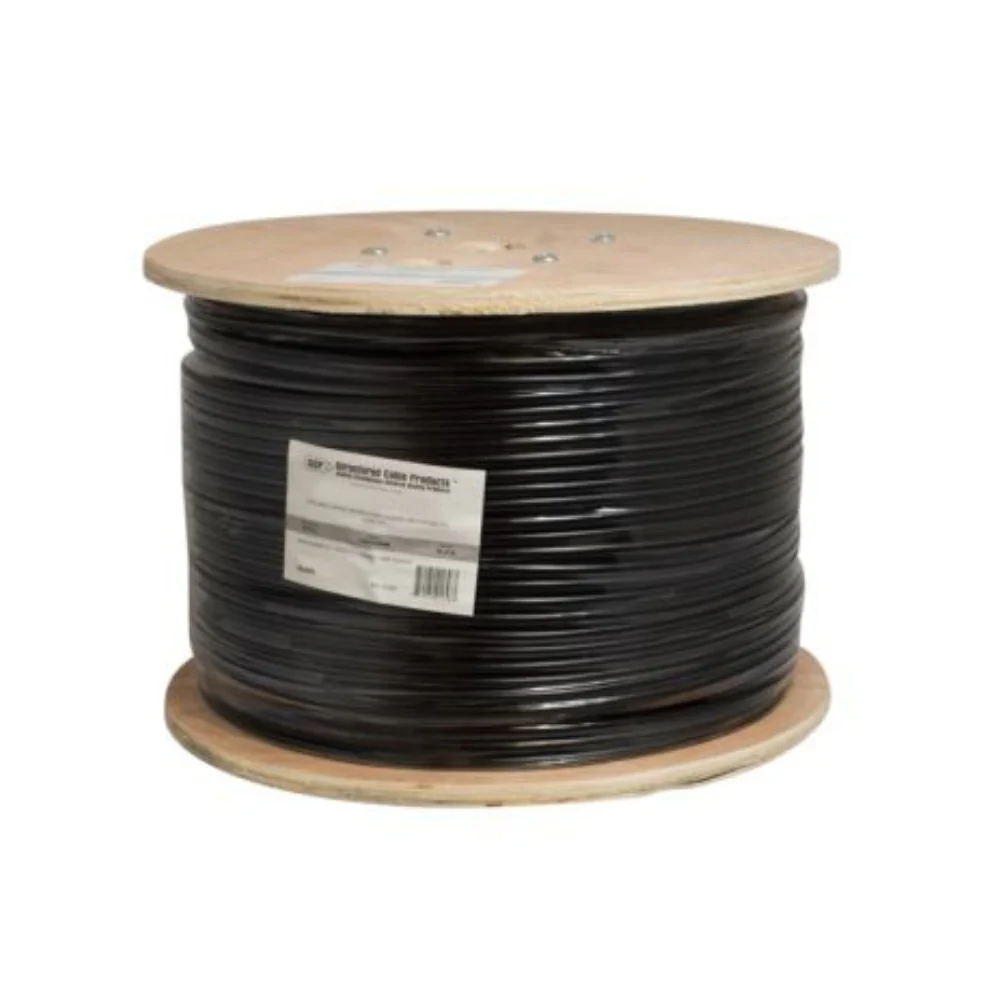

SCP 2C/24AWG DMX Lighting Control Cable PVC - Black (1000 ft. Spool) | SCP-DX24/2-BK

1 PAIR 24AWG STRANDED, TWISTED, AND SHIELDED CABLE NEC TYPE CM AND CEC YPTE CMG FT4.

Standard

UL 444 Type (UL) CM, CMG/CL2 c(UL) EU RoHS 2011/65/EU Compliant.

Features

• DMX Lighting Control Cables
• Supports USITT Standards for DMX512 and RS485 120Ω impedance
• Low Capacitance
• Descending feet and Zone/Outlet Jkt Markings
• Compliance/Application: UL CM CL2/3, c(UL) FT4 75C;  ANSI/TIA 568.2-D; RoHS.

SCP Standard Limited Warranty

• Lifetime Limited Warranty

Construction

• DMX512/RS485 120Ω - 2C/24AWG STR TC (7x32) FPE (Blue/White), Dual Foil/Braid Shield w/Drain
• Jacket / Color: PVC - Black
• Packaged Length: 305m/1000ft Spool

Compliance / Application

UL CM CL2/3, c(UL) FT4 75C;  ANSI/TIA 568.2-D; RoHS.

Product Literature

• SCP DX24/2-BK Data Sheet
