SCP Lutron Grafix Eye Systems Cable PVC - Blue (500 ft. Spool) | SCP-LUT-BLUE

GRAFIX EYE- 2C/12 AWG STRANDED BC + 1C/18 AWG STRANDED BC + 2C/22 AWG STRANDED SHIELDED AL FOIL + DRAIN, PVC JKT- LIGHT BLUE W/BLUE STRIPE- 500 FT SPOOL

Features

SCP carries a complete line of composite cables for use with Lutron* various lighting and shade control systems. These include composite data/communications cables and composite data/control cables available in PVC-rated CM, Plenum CMP, and Low Smoke Zero Halogen (LSZH/LSOH) for commercial and institutional applications.\

• UL listed, NEC: CL3 rated, CEC: CMG FT4, UL 13 and 444, NEC Article 725 and 800. EU RoHS, CE. UL 1685 vertical tray.

Applications

SCP Lut-Blue cable is used with Lutron* Grafix Eye® Systems for specialty lighting control and power applications. The SCP Lut-Blue is comparable to the Lutron* GRX-CBL-46L-500 cable. For use with Lutron* Grafix Eye 4000/5000/6000/7000. The SCP Lut-Blue applications include data/communications and controls.

SCP Standard Limited Warranty

• Lifetime Limited Warranty

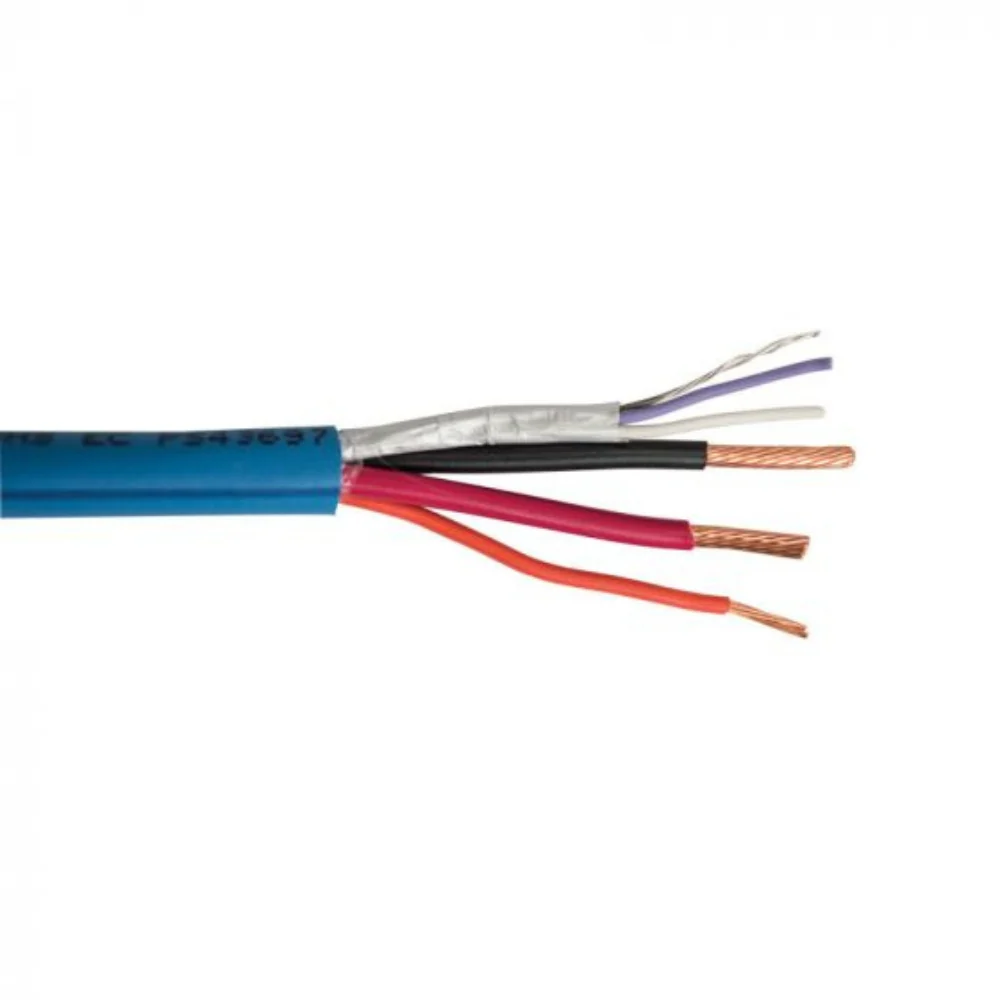

Construction

This cable consists of:

• (1) 2 conductor 12 AWG insulated stranded bare copper, twisted pair, unshielded, plus
• (1) 1 conductor 18 AWG insulated stranded bare copper unshielded, plus
• (1) 2 conductor 22 AWG insulated stranded bare copper, twisted pair, shielded with AL foil, and TC drain, and with an overall FR-PVC jacket.
• The cable includes SCP Cable Labeling System with sequential foot/meter markings and room/zone/outlet designations for easy cable identification.
• Packaged Length: 152m/500ft Spool
• Jacket / Color: PVC -Blue w/ Dark Blue Stripe
• Dimensions L*W*H (in): 14.96 x 7.87 x 6.29

LUT-BLUE is comparable to:

• Liberty LUTRON*-RBL
• LUTRON* GRX-CBL-46L-500

The cross reference numbers above represent competitor products that are functionally equivalent to the SCP product. Color codes, packaging, and some constructional differences may exist. While we have done our best with the cross-references, we are not responsible for any errors. If you find an error, please bring it to our attention so that we make the correction.

Please refer to the SCP data sheet for specific details or please call our technical support team at (800) 730-8382 for more information.

Note: *Lutron®, Homeworks®, Sivoia®, Grafik Eye®, and Quantum Systems® are registered trademarks of Lutron Electronics Co., Inc. Structured Cable Products Inc. is not affiliated with Lutron and our products are not endorsed or certified by Lutron.

Product Literature

• SCP LUT-BLUE Data Sheet
