SCP Lutron Grafix Eye Systems Cable Plenum - White w/ Blue Stripe (500 ft. Spool) | SCP-LUT-BLUE-P

PLENUM - GRAFIX EYE- 2C/12 AWG STRANDED BC + 1C/18 AWG STRANDED BC + 2C/22 AWG STRANDED SHIELDED AL FOIL + DRAIN, PLENUM CMP RATED JKT- WHITE W/BLUE STRIPE- 500 FT SPOOL

Features

SCP carries a complete line of composite cables for use with Lutron* various lighting and shade control systems. These include composite data/communications cables and composite data/control cables which are available in PVC-rated CM, Plenum CMP, and Low Smoke Zero Halogen (LSZH/LSOH) for commercial, and institutional applications.

• UL listed, NEC: CL3 rated, CEC: CMG FT4, UL 13 and 444, NEC Article 725 and 800. EU RoHS, CE. UL 1685 vertical tray.

Applications

SCP Lut-Blue cable is for use with Lutron Grafix Eye Systems for specialty lighting control and power applications. The SCP Lut-Blue is comparable to the Lutron GRX-CBL-46L-500 cable. For use with Lutron* Grafix Eye 4000/5000/6000/7000. The SCP Lut-Blue applications include data/communications and controls.

SCP Standard Limited Warranty

• Lifetime Limited Warranty

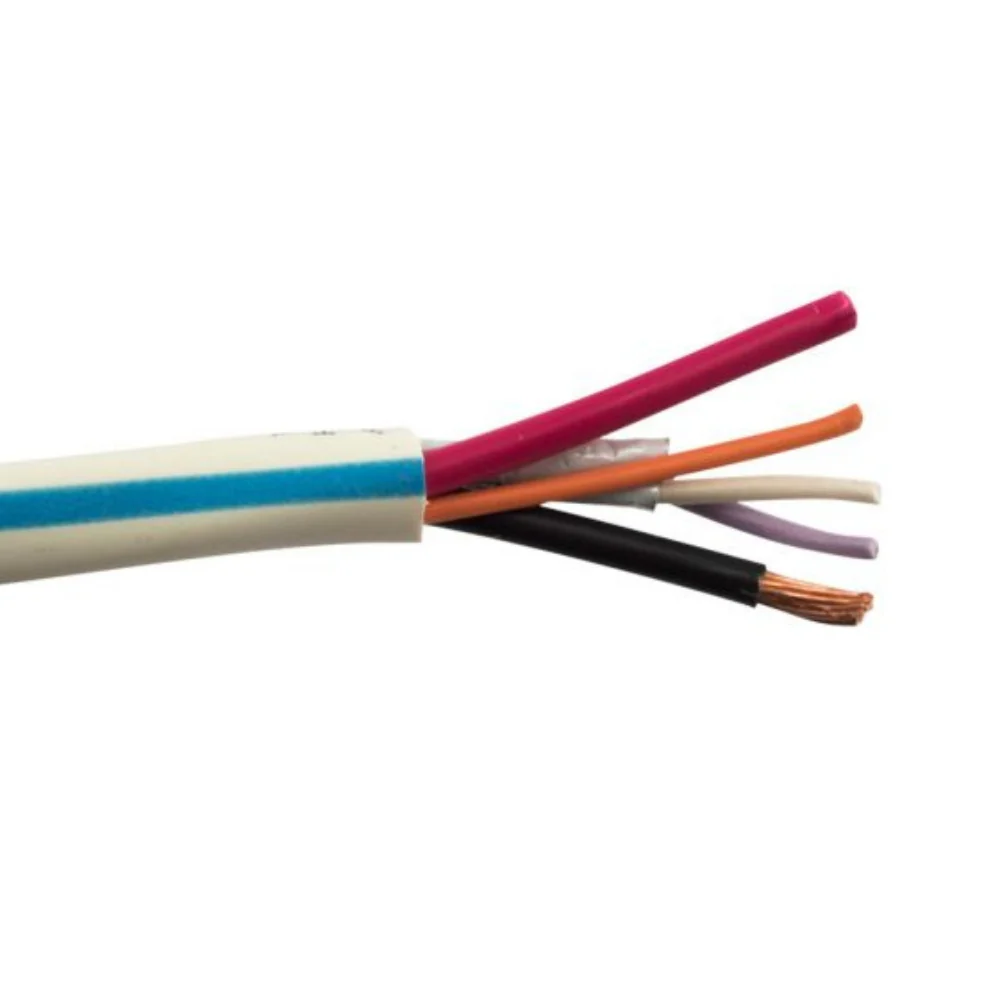

Construction

This cable consists of:

• (1) 2 conductor 12 AWG insulated stranded bare copper, twisted pair, unshielded, plus
• (1) 1 conductor 18 AWG insulated stranded bare copper unshielded, plus
• (1) 2 conductor 22 AWG insulated stranded bare copper, twisted pair, shielded with AL foil, and TC drain, and with an overall FR-PVC jacket.
• The cable includes SCP Cable Labeling System with sequential foot/meter markings and room/zone/outlet designations for easy cable identification.
• Packaged Length: 152m/500ft Spool
• Jacket / Color: Plenum - White w/Blue Stripe

Note: *Lutron®, Homeworks®, Sivoia®, Grafik Eye®, and Quantum Systems® are registered trademarks of Lutron Electronics Co., Inc. Structured Cable Products Inc. is not affiliated with Lutron and our products are not endorsed or certified by Lutron.
