SCP Lutron Grafix Eye Systems Cable Plenum -White w/ Green Stripe (1000' Spool) | SCP-LUT-GREEN-P
SCP Lutron Grafix Eye Systems Cable Plenum -White w/ Green Stripe (1000' Spool) | SCP-LUT-GREEN-P
SCP Lutron Grafix Eye Systems Cable Plenum -White w/ Green Stripe (1000 ft. Spool) | SCP-LUT-GREEN-P
PLENUM- GRAFIX EYE- 2C/22 AWG SHIELDED + 2C/18 AWG STRANDED + DRAIN, CMP JKT- WHITE W/GREEN STRIPE- 305M/1000 FT SPOOL
Features
SCP carries a complete line of composite cables for use with Lutron* various lighting and shade control systems. These include composite data/communications cables and composite data/control cables which are available in PVC-rated CM, PLENUM CMP, and Low Smoke Zero Halogen (LSZH/LSOH) for commercial, marine, and institutional applications.
- UL listed, NEC: CMP rated, CEC: CMG FT6, UL 13 and 444, NEC Article 725 and 800. EU RoHS, CE. UL 1685 vertical tray.
Applications
SCP LUT-GREEN-P cable is for use with Lutron Grafix Eye Systems for specialty lighting and window shade systems. The SCP LUT-GREEN-P is comparable to the Lutron* GRX-CBL-346S. The SCP LUT-GREEN-P is also a universal control system cable that can be used on various other Brand systems such as AMX® and Crestron®. Also can be used for systems control and instrumentation. This cable is also compatible with the AMX AXLink™ Systems.
SCP Standard Limited Warranty
- Lifetime Limited Warranty
Construction

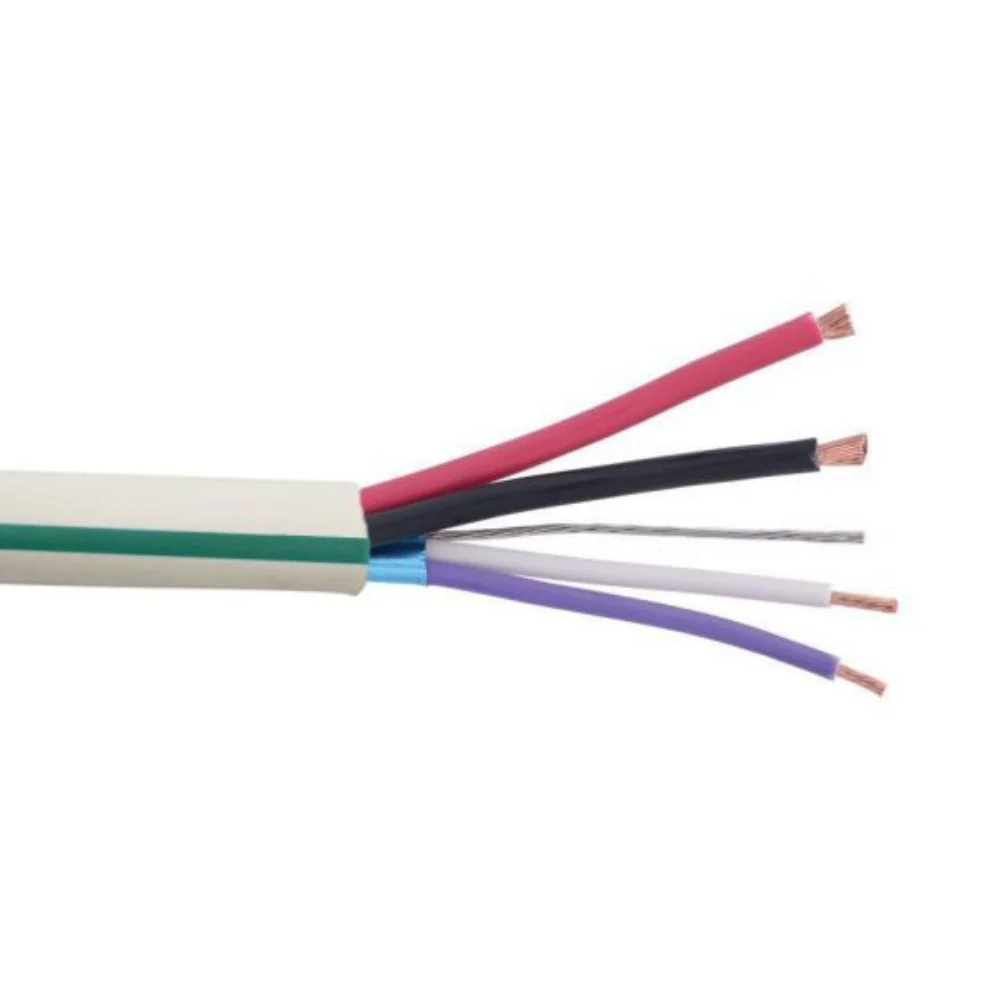

This cable consists of:
- 2 conductors 22 AWG insulated stranded bare copper, twisted pair, shielded with overall AL foil- low capacitance plus
- 2 conductor 18 AWG insulated stranded bare copper, twisted pair, unshielded, and a TC drain with an overall PLENUM jacket.
- The cable includes SCP Cable Labeling System with sequential foot/meter markings and room/zone/outlet designations for easy cable identification.
- Jacket / Color: PVC - Blue w/Green Stripe
- Packaged Length: 305m/1000ft Spool
- Dimensions L*W*H (in): 14.96 x 11.417 x 6.29
Note: *Lutron®, Homeworks®, Sivoia®, Grafik Eye®, and Quantum Systems® are registered trademarks of Lutron Electronics Co., Inc. Structured Cable Products Inc. is not affiliated with Lutron and our products are not endorsed or certified by Lutron.
Product Literature
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SCP Lutron Grafix Eye Systems Cable Plenum -White w/ Green Stripe (1000 ft. Spool) | SCP-LUT-GREEN-P
PLENUM- GRAFIX EYE- 2C/22 AWG SHIELDED + 2C/18 AWG STRANDED + DRAIN, CMP JKT- WHITE W/GREEN STRIPE- 305M/1000 FT SPOOL
Features
SCP carries a complete line of composite cables for use with Lutron* various lighting and shade control systems. These include composite data/communications cables and composite data/control cables which are available in PVC-rated CM, PLENUM CMP, and Low Smoke Zero Halogen (LSZH/LSOH) for commercial, marine, and institutional applications.
- UL listed, NEC: CMP rated, CEC: CMG FT6, UL 13 and 444, NEC Article 725 and 800. EU RoHS, CE. UL 1685 vertical tray.
Applications
SCP LUT-GREEN-P cable is for use with Lutron Grafix Eye Systems for specialty lighting and window shade systems. The SCP LUT-GREEN-P is comparable to the Lutron* GRX-CBL-346S. The SCP LUT-GREEN-P is also a universal control system cable that can be used on various other Brand systems such as AMX® and Crestron®. Also can be used for systems control and instrumentation. This cable is also compatible with the AMX AXLink™ Systems.
SCP Standard Limited Warranty
- Lifetime Limited Warranty
Construction
This cable consists of:
- 2 conductors 22 AWG insulated stranded bare copper, twisted pair, shielded with overall AL foil- low capacitance plus
- 2 conductor 18 AWG insulated stranded bare copper, twisted pair, unshielded, and a TC drain with an overall PLENUM jacket.
- The cable includes SCP Cable Labeling System with sequential foot/meter markings and room/zone/outlet designations for easy cable identification.
- Jacket / Color: PVC - Blue w/Green Stripe
- Packaged Length: 305m/1000ft Spool
- Dimensions L*W*H (in): 14.96 x 11.417 x 6.29
Note: *Lutron®, Homeworks®, Sivoia®, Grafik Eye®, and Quantum Systems® are registered trademarks of Lutron Electronics Co., Inc. Structured Cable Products Inc. is not affiliated with Lutron and our products are not endorsed or certified by Lutron.
