SCP Lutron Quantum System/Grafix Eye Cable Plenum - White (500 ft. Spool) | SCP-LUT-QS-P

PLENUM QUANTUM SYSTEM/GRAFIX EYE- 2C/16 AWG + 2C/22 AWG SHIELDED PLUS DRAIN, CMP JKT- WHITE w/LIGHT BLUE STRIPE- 500 FT/152 M SPOOL

Features

SCP carries a complete line of composite cables for use with Lutron* various lighting and shade control systems. These include composite data/communications cables and composite data/control cables which are available in PVC-rated CM, Plenum CMP, and Low Smoke Zero Halogen, (LSZH/LSOH) for commercial, marine, and institutional applications.

• UL listed, NEC: CL3P rated, CEC: CMG FT6, UL 13 and 444, NEC Article 725 and 800. EU RoHS, CE. UL 1685 vertical tray.

Applications

SCPs LUT-QS-P cable is for use with Lutron* Quantum Systems®, Grafik Eye®, Grafix Integrale®, and Homeworks® systems. The SCP LUT-QS-P is comparable to the Lutron* QSH-CBL-M-500 cable. The SCP LUT-QS applications include data/communications and controls.

SCP Standard Limited Warranty

• Lifetime Limited Warranty

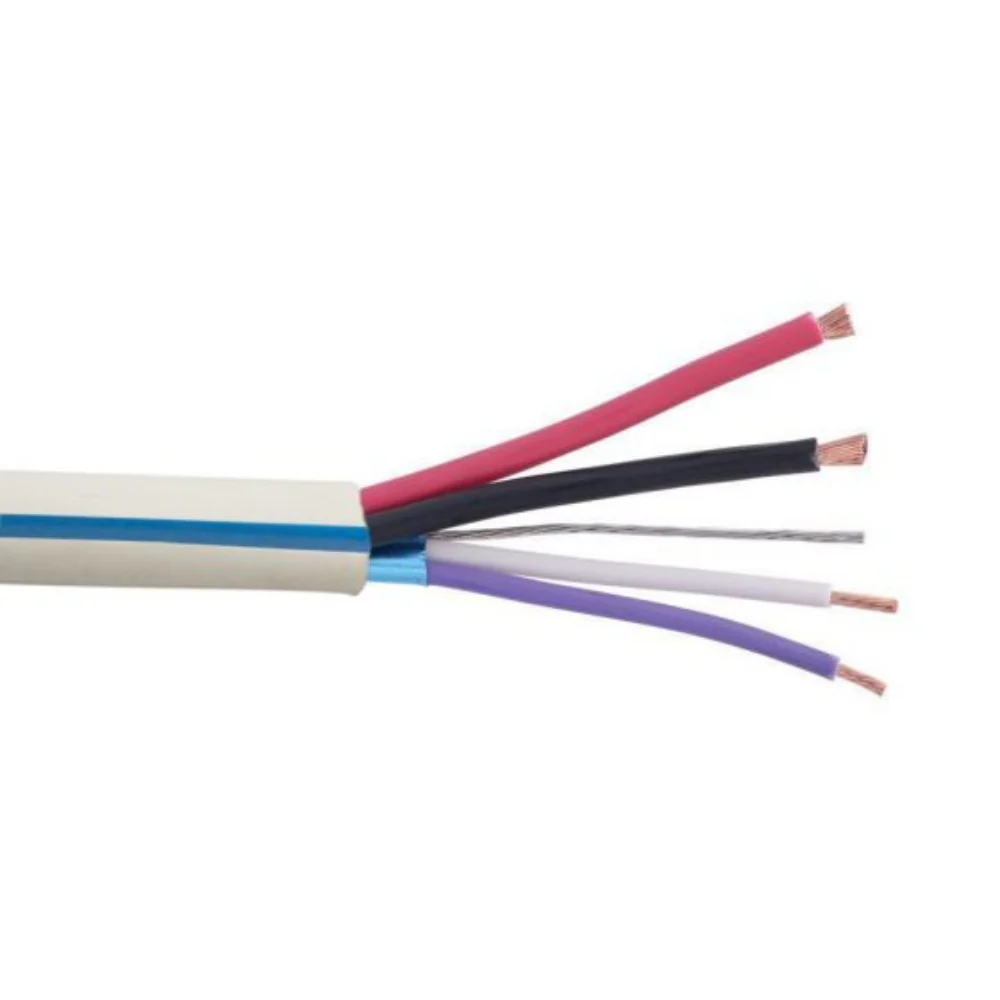

Construction

This cable consists of:

• (1) 2 conductor 16 AWG insulated stranded bare copper, twisted pair, unshielded, plus
• (1) 2 conductor shielded 22 AWG insulated stranded bare copper, twisted pair, with overall AL foil shield, and TC drain with an overall PLENUM jacket.
• The cable includes SCP Cable Labeling System with sequential foot/meter markings and room/zone/outlet designations for easy cable identification.
• Jacket / Color: PVC - White
• Packaged Length: 152m/500ft Spool

Note: *Lutron®, Homeworks®, Sivoia®, Grafik Eye®, and Quantum Systems® are registered trademarks of Lutron Electronics Co., Inc. Structured Cable Products Inc. is not affiliated with Lutron and our products are not endorsed or certified by Lutron.

Product Literature

• SCP LUT-QS-P Data Sheet
