SCP Simply45® ProSeries Pass Through RJ45 Mod Plug - Red (50 pcs./Plastic Jar) | SCP-S45-1750P

ProSeries Cat6 Shielded External Ground - Pass Through RJ45 with Cap45™ & Bar45™. Red Tint - 50pcs/Plastic Jar.

Simply45® the industry-leading brand for RJ45 modular plug innovation and performance solutions introduces our ProSeries Shielded with External Ground Pass Through RJ45 Modular Plug, S45-1750P. The uniquely designed and patented Simply45® ProSeries S45-1750P simplifies and improves the terminated plug performance for shielded Cat6 LAN cables. The Simply45® ProSeries S45-1750P Pass Through RJ45 modular plugs are by far the highest performing, easiest to use, and most cost-effective way to professionally terminate Cat6 Shielded STP and Cat6a F/UTP LAN cables.

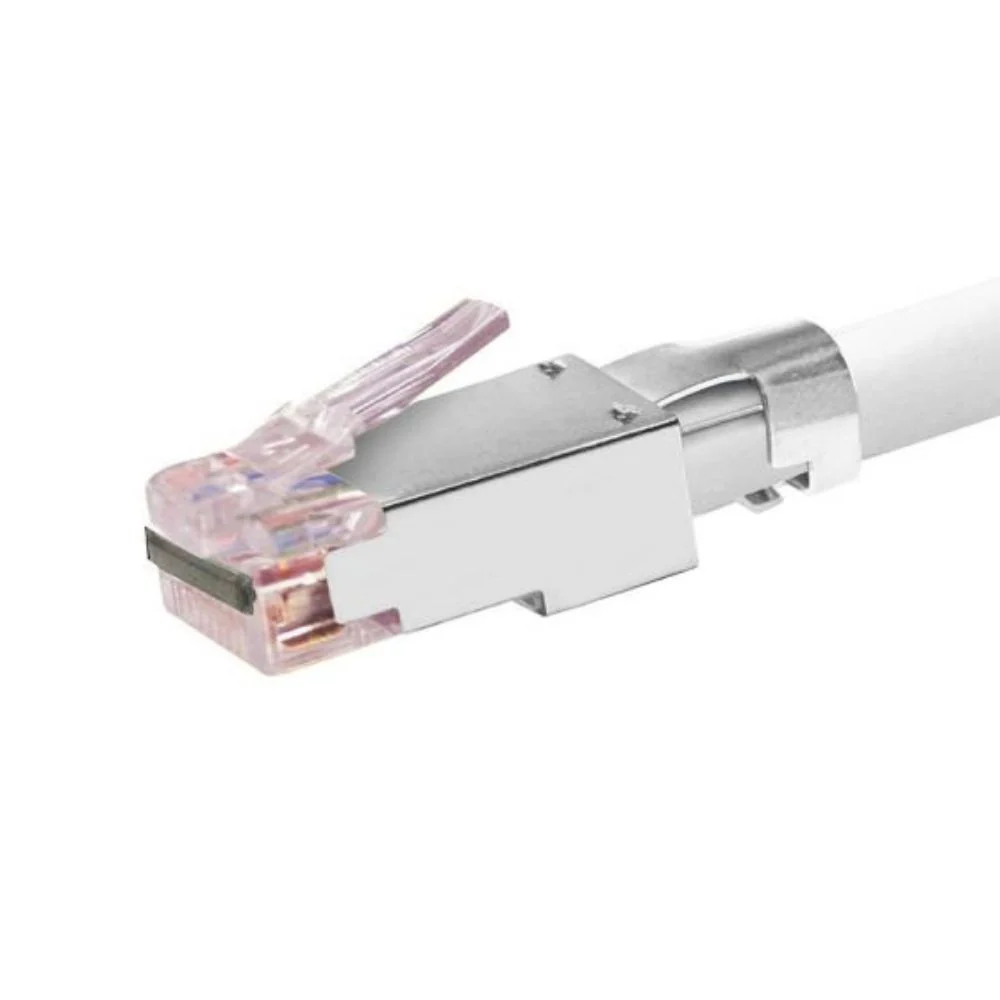

Simply45® ProSeries introduces the exclusive Cap45™ (PATENT: 10,811,831 B1). Cap45™ is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45™ prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or device sockets that may not be 100% compliant. With Cap45™, any electrical risks associated with exposed wire ends are now eliminated completely.

Features

• Two Piece Plug
• Bar45™ Load Bar - The uniquely designed Bar45™ load bar does 3 things:
• Is made of a material that provides better signal isolation improving NEXT performance;
• Improves the signal integrity by reducing the length of open untwisted wires inside the plug;
• Is the easiest and fastest load bar to use for 10G LAN cable termination.

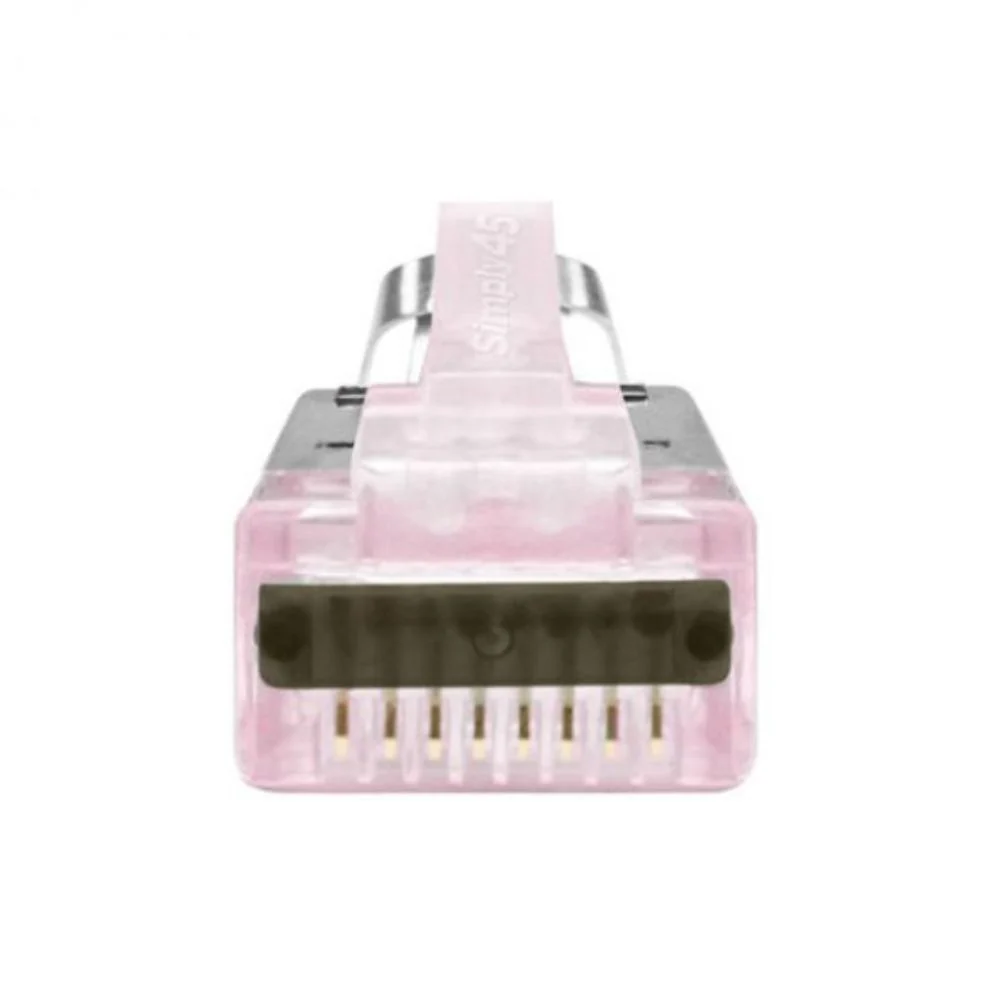

• Cap45™ - An isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45™ is a must-have for all pass-through RJ45 modular plugs used in commercial and certified system terminations.

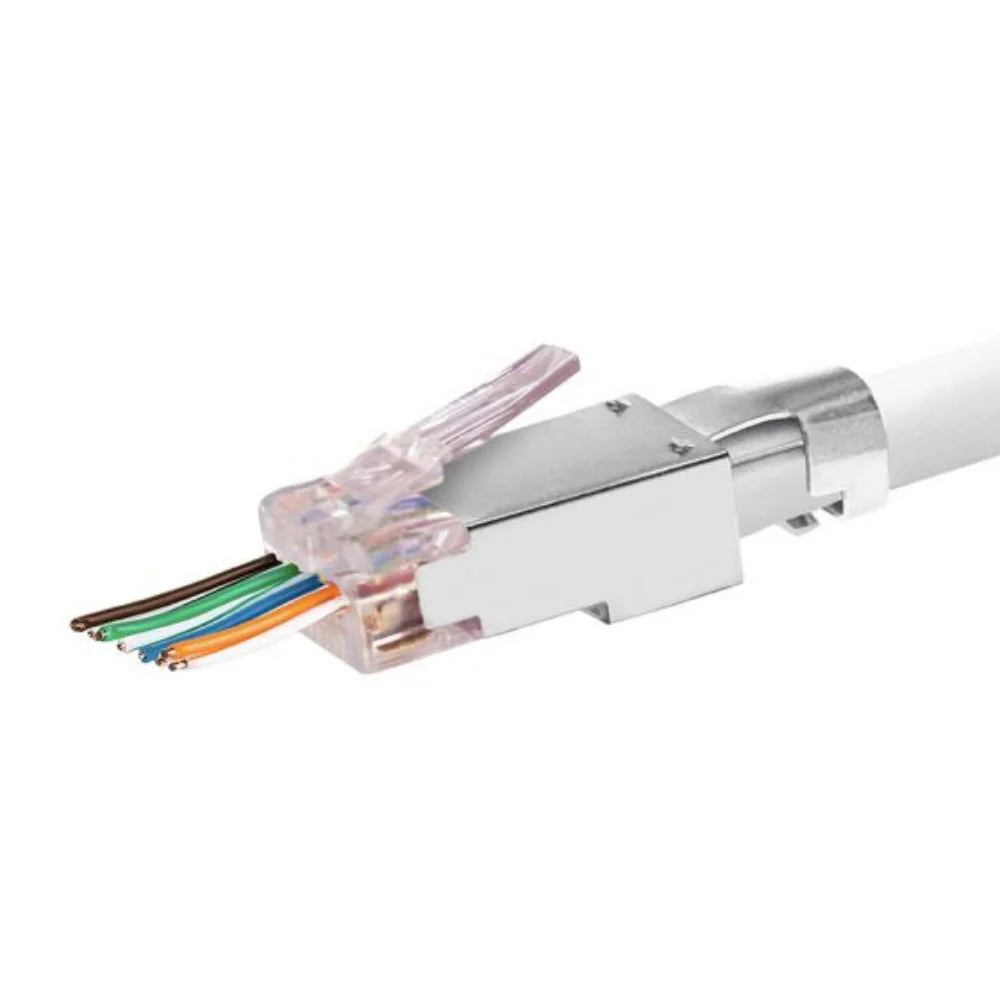

• High/Low Staggered Wire Insert - LAN cable wire conductors are easily inserted into the S45-1750P in a Staggered High/Low wire arrangement out through the front of the RJ45 pass-through modular plug.
• 3 Prong Pin Design with 50µ of True 24ct Gold Plating - This improves electrical performance and signal integrity, and also holds stronger onto the wire conductors.

• Improved Crosstalk Performance
• Commercial Rated
• Color-Tinted RJ45 Modular Plugs - The S45-1755P comes with a Red tint for easy pass-through RJ45 modular plug identification. No more trouble identifying which plug is which.
• Color-Coded Jar Caps - The S45-1750P jar cap is White. This makes it very easy to find the items in your bag or kit.
• Wide Mouth Jar for Easy Hand Access - No need to spill RJ45 mod plugs out of the jar just to reach them. Most hands can easily reach the last plug in the jar.
• UL Listed
• PoE/PoH Rated
• Compliant to Industry Standards - ANSI/TIA 568.2-D for Cat6 and Cat6a, 1096-A; ISO/IEC 11801 Class F, Ea, E; 60603-7; 8877:1992; FCC

SCP Standard Limited Warranty

• Lifetime Limited Warranty

Specifications

• Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
• Wire Cond(s) OD: 23AWG: 1.10mm - 1.20mm (0.043” - 0.047”)
• Max LAN Cable OD: 8mm (0.315”)
• Supports PoE/PoH: Yes
• Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
• Flame Autoextinguish: UL94 V0, IEC 60695-11-10
• Contact Material: Phosphor Bronze - .012" thick
• Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min
• Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
• Plug Material: Polycarbonate
• Shielded Material: Hard Brass
• Shielded Plating: 80 Micro-Inch minimum Nickel Plating
• Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
• Conductor Type(s): Solid and Stranded
• Operating Temperature: -40º C to +70º C
• Insertion/Extraction Life: 2000 Minimum Cycles
• Contact Resistance: 20 Milli-Ohms maximum
• Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
• Compliance: UL Listed, RoHS, FCC, NEC
• Dimensions (in/mm): 3.9 x 3.7 x 3.2 in / 100 x 95 x 82 mm
