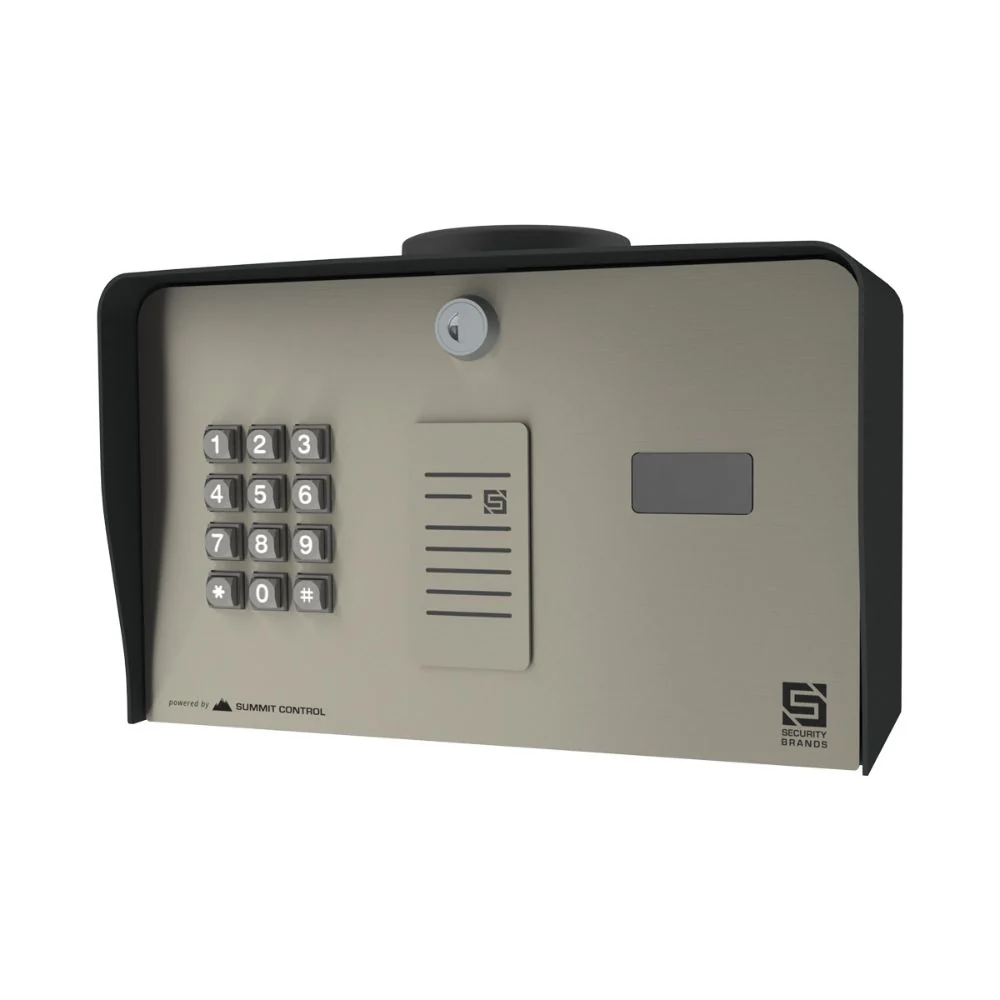

Security Brands Ascent K2 - Cellular Keypad with Proximity Card Reader Mount | SEC-25-K2

Our cellular keypads are powered by our best-in-class, cloud-based Summit Control software platform.

Ascent K2 gives you 2 Wiegand inputs and a proximity card reader mount so you can mount your favorite 26-bit Wiegand proximity card reader.

This unit features app, text, and voice control, a keypad, two Wiegand inputs, and time/use-limited QR code quick access for guests.

Includes

• GSM SIM card ready for activation
• 12-VDC AC/DC adapter (PS-12DC1)

Features

• Full cellular connectivity with auto network selection
• HD video capture with IR for low light
• Time/use-limited QR-code quick access
• Control up to 2 gates/doors
• 2 relays
• 2 Wiegand inputs
• Up to 10,000 app, text, and voice users*
• Up to 10,000 keypad codes*
• Push and/or email event and status notifications
• Cloud-based access control management
• LED downlight and LED-backlit keypad
• Mounting location for proximity card reader

Other Great Features

• Weekly Event Schedule
• Audit trail with detailed reports
• Stainless-steel faceplate
• Powder-coated steel enclosure
• Pluggable terminal blocks
• Powered by Summit Control
• Made in the USA from Global Materials

Versatile & Convenient
Control your gate from anywhere using a computer, tablet, or phone.

An Ascent with a View
Get visual ID on all visitors to your property with photo push notifications; get photos automatically or whenever you choose.

Just Swipe Your Card
Install your own compatible proximity card reader and enjoy added flexibility.

Keypad Convenience
Control up to two gates/doors with the onboard keypad, and easily add up to two additional Wiegand devices to your system.

Manufacturer's Warranty Period

• 2-Year Limited Warranty

Technical Specifications

• Dimensions: 8.42″(H) x 7.45″(W) x 5.15″(D)
• Shipping Weight: 8 lbs.
• Electrical Input: 12–24 VAC/DC (12-VDC power supply included (PS-12DC1))
• Current Draw: less than 190 mA @ 12 VDC | less than 160 mA @ 24 VDC (with relay latched and backlit components on)
• Contact Rating: 10 A @ 120 VAC / 24 VDC
• Max Switching Voltage: 250 VAC / 30 VDC
• Max Switching Current: 15 A
• Max Switching Power: 240 W / 2,770 VA
• Cellular Network: 4G LTE
• Operating Temperature: -15 to 158 °F
• Control it your way: App, Text, Voice, Keypad, Wiegand Devices

Product Literature

• Security Brands Ascent K2 Spec Sheet
• Security Brands Ascent K2 Installation Guide
• Access Code List Tracker
• Security Brands Two-Year Limited Warranty
