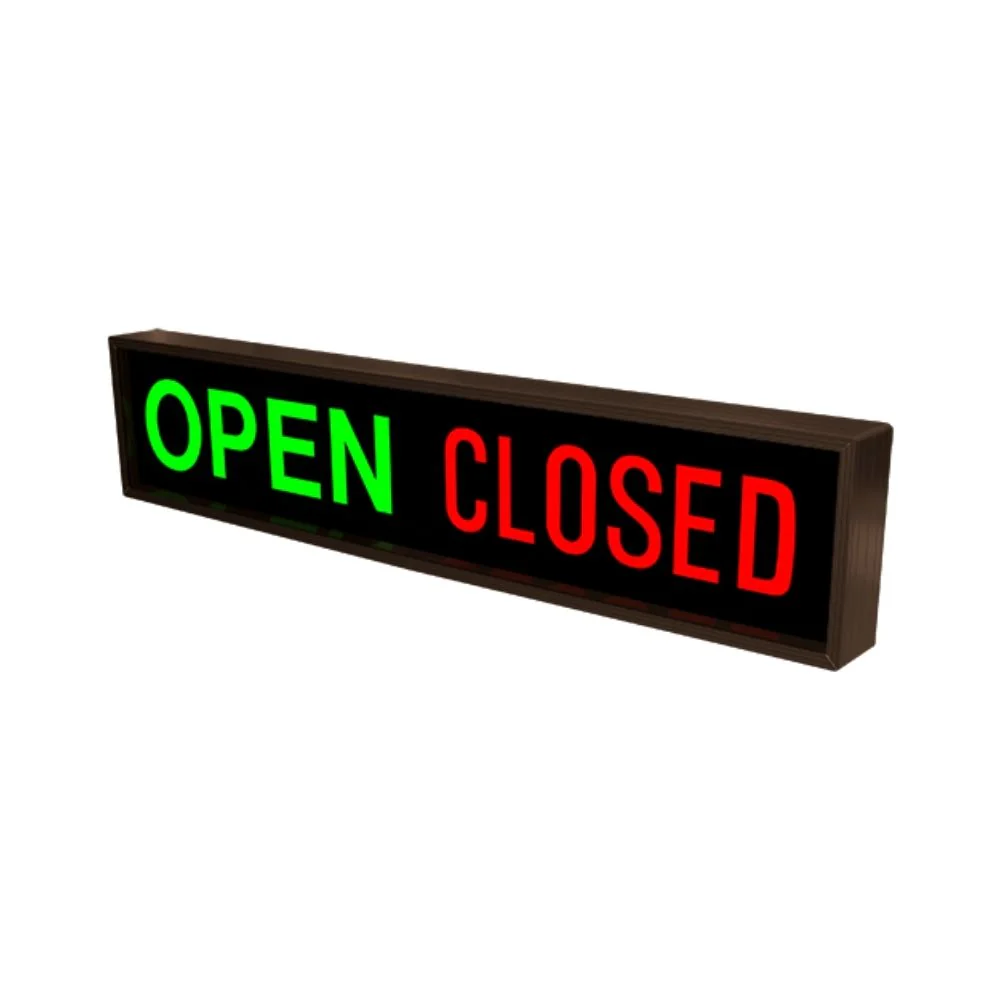

Signal-Tech OPEN | CLOSED PHX734GR-100/120-277VAC | SIG-25883

This PHX Series OPEN | CLOSED outdoor, blank-out sign is designed with high-intensity, LED reflected, backlit illumination, and a block letter-style message face. The sign message illuminates when turned on and blanks out or extinguishes when off. PHX Series signs are guaranteed readable in direct sunlight.

It is designed with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum, and ships with our Lift'N Shift back for wall mounting. Ceiling, post, and wall-projection mountings are available. The standard cabinet finish is Duranodic Bronze; custom paint finishes are available. The sign can be controlled by a switch or third-party relay. Control switches can be purchased separately. UL/cUL Listed for wet locations.

Includes

• Built-in Lift'N Shift Wall Mount

Technical Specifications

• Product #: 25883
• Product Line: PHX (Outdoor Blank-out LED Backlit Sign)
• Model: PHX734GR-100/120-277VAC Dimensions: 7" H x 34" W x 2.5" D
• Weight: 7.182 lbs.
• Faces: Single Face
• Graphic: Printed
• Color: Black Blockout
• LED Viewing Angle: Wide Angle LEDs Face Material: 1/8" Dark Grey Diffused Acrylic
• UL/cUL Listed: Wet Locations
• Finish: Duranodic Bronze
• Illumination: PHX LED
• Mounting Channel: None
• Input Voltage: 120-277 VAC
• Flashing: Not Included
• Cabinet: Combo 2.5"
• Warranty: 5 Year Warranty

Messages	Message Color	Character Height
OPEN	Green Wide Angle LED	3.75"
CLOSED	Red Wide Angle LED	3.75"

Manufacturer's Warranty

• 5 Years

Product Video

Product Literature

• Signal-Tech OPEN | CLOSED Installation & Wiring
• Signal-Tech OPEN | CLOSED Specifications Sheet
• Signal-Tech Manufacturer's Warranty
