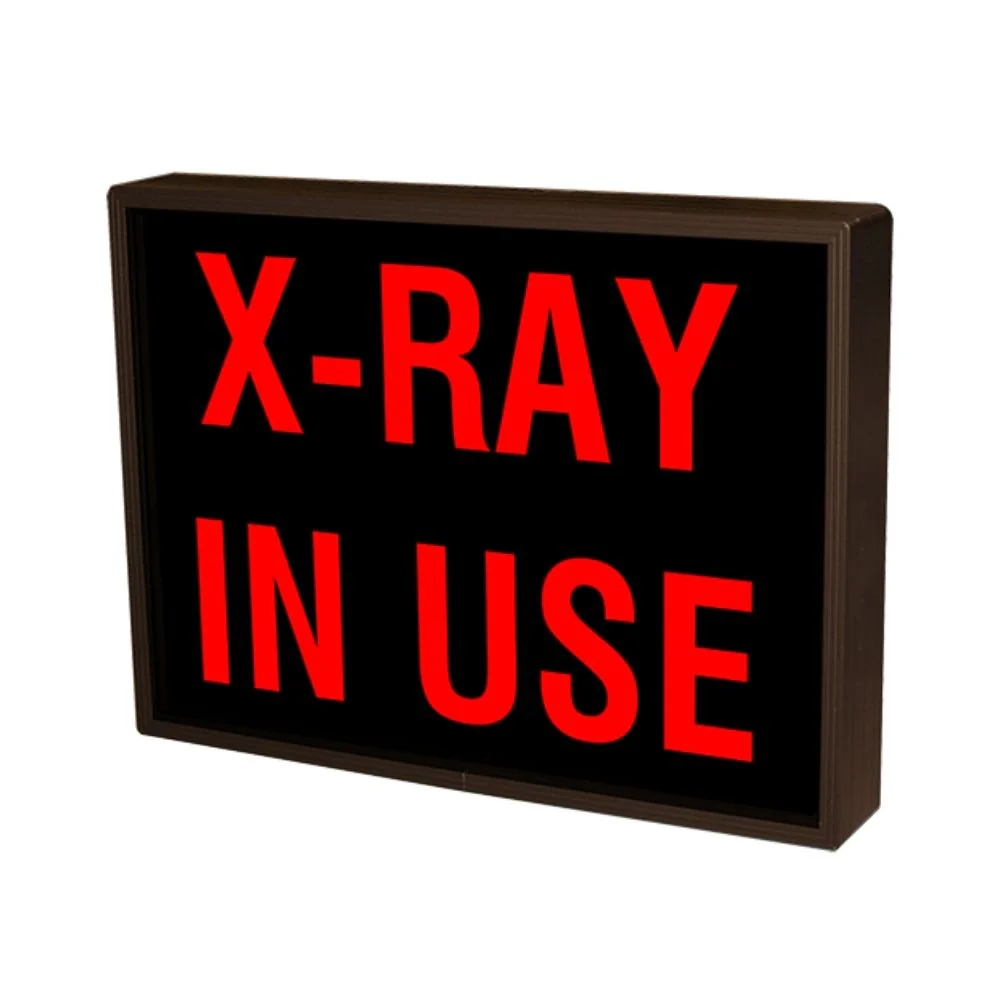

Signal-Tech X-RAY IN USE SBL811R-270/120-277VAC | SIG-38637

This SBL Series X-RAY IN USE indoor, blank out, LED backlit sign is designed with a matrix of energy efficient LEDs illuminating a block-style message. The sign features blackout technology that only displays the sign message when illuminated.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum, and ships with our Lift'N Shift back for wall mounting. Ceiling, post, and wall-projection mountings are available. The standard cabinet finish is Duranodic Bronze; custom paint finishes are available. The sign can be controlled by a switch or third-party relay. Control switches can be purchased separately. UL/cUL Listed.

Includes

• Built-in Lift'N Shift Wall Mount

Technical Specifications

• Product #: 38637
• Product Line: SBL (Indoor Blank-out LED Backlit Sign)
• Model: SBL811R-270/120-277VAC
• Dimensions: 8" H x 11" W x 2.5" D
• Weight: 2.761 lbs.
• Faces: Single Face
• Illumination: SBL LED
• Graphic: Printed
• Input Voltage: 120-277 VAC
• Color: Black Blockout
• Face Material: 1/8" Dark Grey Diffused Acrylic
• Finish: Duranodic Bronze
• UL/cUL Listed: UL Listed
• Flashing: Not Included
• Cabinet: Combo 2.5"

Messages	Message Color	Character Height
X-RAY IN USE	Red Wide Angle LED	2.5"

Manufacturer's Warranty

• 2 Years

Product Literature

• Signal-Tech X-RAY IN USE Installation & Wiring
• Signal-Tech X-RAY IN USE Specifications Sheet
• Signal-Tech Manufacturer's Warranty
