Signal-Tech Down Arrow TCL1010G-A437TS/12-24VDC | SIG-49033
Signal-Tech Down Arrow TCL1010G-A437TS/12-24VDC | SIG-49033

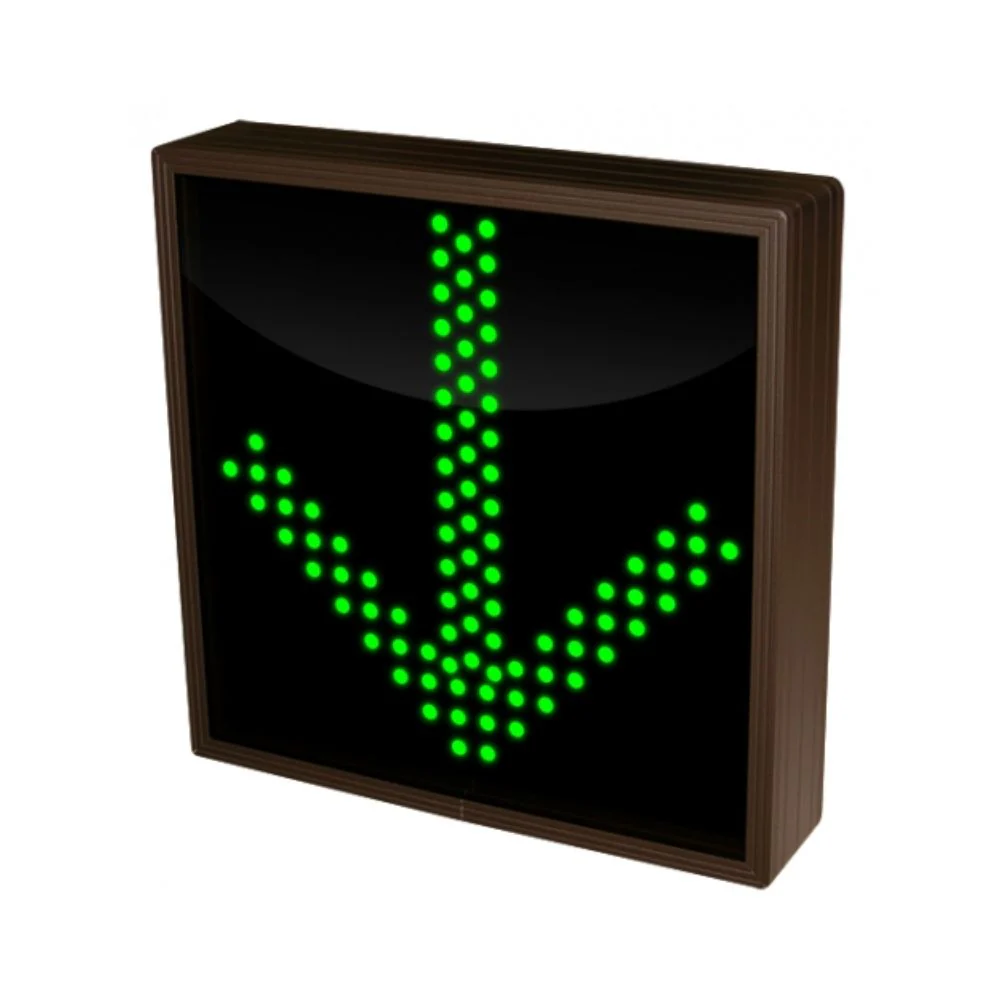

This TCL Series Down Arrow (12-24VDC) outdoor, blank-out sign is designed with super bright LEDs and a contrasting face; we guarantee it's readable in direct sunlight. The sign message is formed by visible LEDs on a black sign face and is designed to illuminate the message(s) when turned on and blank out or extinguish the message when off.
It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum, and ships with our Lift'N Shift back for wall mounting. Ceiling, post, and wall-projection mountings are available. The standard cabinet finish is Duranodic Bronze; custom paint finishes are available. The sign can be controlled by a switch or third-party relay. Control switches can be purchased separately. UL/cUL Listed for wet locations.
Includes
- Built-in Lift'N Shift Wall Mount
Product Specifications
- Product #: 49033
- Product Line: TCL (Outdoor Blank-out LED Direct-view Sign)
- Model: TCL1010G-A437TS/12-24VDC
- Dimensions: 10" H x 10" W x 2.5" D
- Weight: 3.482 lbs.
- Faces: Single Face
- Face Material: 1/8" Smoked Polycarbonate(5109)
- Illumination: TCL LED
- Input Voltage: 12-24 VDC
- LED Viewing Angle: Wide Angle LEDs
- UL/cUL Listed: Wet Locations
- Finish: Duranodic Bronze
- Mounting Channel: None
- Flashing: Not Included
- Cabinet: Combo 2.5"
| Messages | Message Color | Character Height |
| Down Arrow | Green Wide Angle LED | 8.125" |
Manufacturer's Warranty
- 5 Years
