SysParc Merchant Parking Validation Printer Model | SYS-MV2020

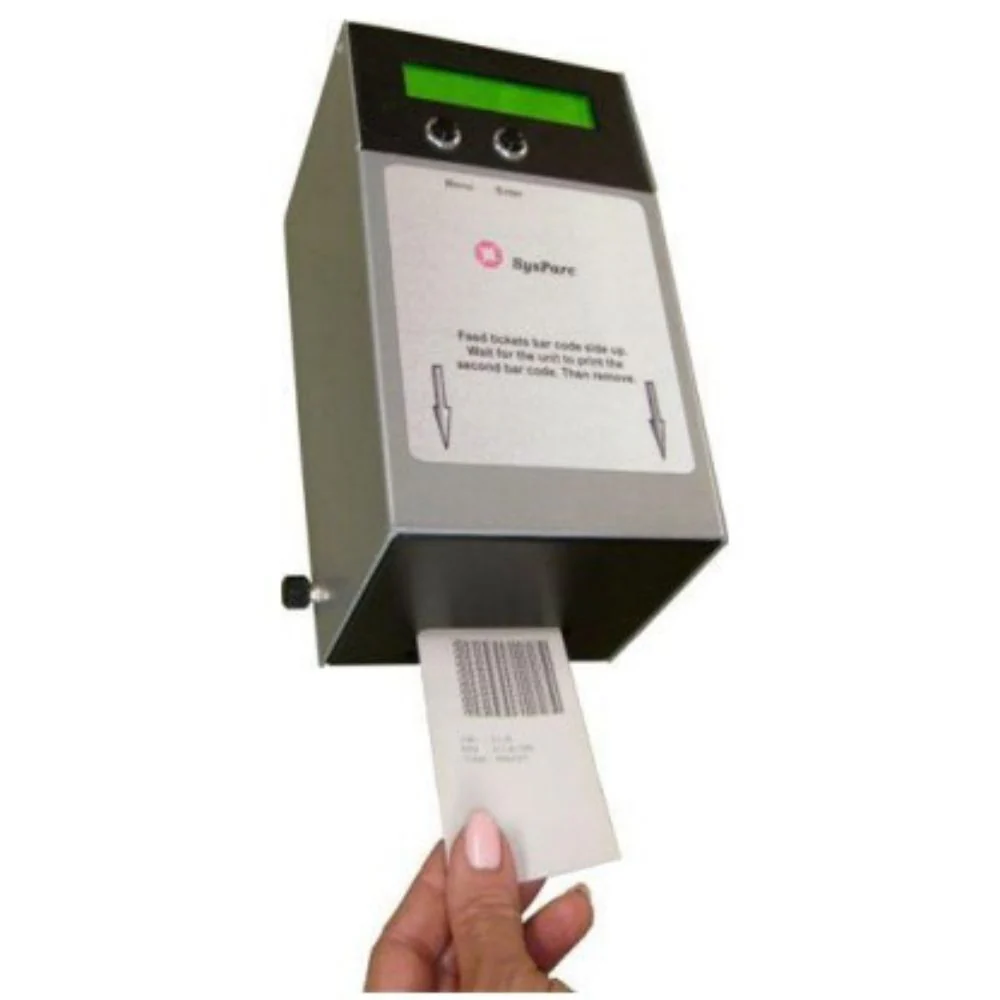

The SysParc Model MV-2020 Merchant Validation Printer is a revenue control device that provides a printed pre-programmed multiple-digit bar code machine-readable validation code on the face of the patron’s entry ticket when inserted into the front of the printer.

Features

• Easy front access ticket validating
• Safe, user-friendly operation
• Print On the Fly Barcode AutoRead
• Rugged rust-resistant heavy duty industrial plastic construction
• Large back-lit LCD displays date & time, and optional programmable message
• Optional built-in LCD counters

  • 1 Non-Resettable
  • 1 key Resettable
• Off-Line operation capable
• Each ticket validation is printed at time of ticket insertion with the validation account number, and a sequential ticket validation number. This data is printed in both man-readable and barcode machine-readable format utilizing a non-contact thermal printer technology.

Functions

• The SysParc Model MV-2010 Bar code Merchant Validation Printer is designed to issue a machine-readable validation code printed on the patron’s entry ticket.
• The SysParc MV-2010 is activated by insertion of the patron’s thermal stock entry ticket into the face of the validation printer.
• The Merchant Validation Printer issues one validation for each ticket inserted into the printer. In the event the patron’s ticket has already received such a validation, this previous validation imprint will be detected, and no subsequent imprinting will occur.

Technical Specifications

• Dimensions: 5.9" wide, by 6.8" deep, by 4.25" in height
• Weight: 3 lbs.
• Electrical Power Requirements: 115VAC at 60Hz, or 220VAC at 50Hz
• Construction: Heavy duty industrial plastic
• Standard Color: Charcoal Gray

Product Literature

• SysParc MV-2020 Brochure 1
• SysParc MV-2020 Brochure 2
• SysParc MV-2020 Operating Instructions
