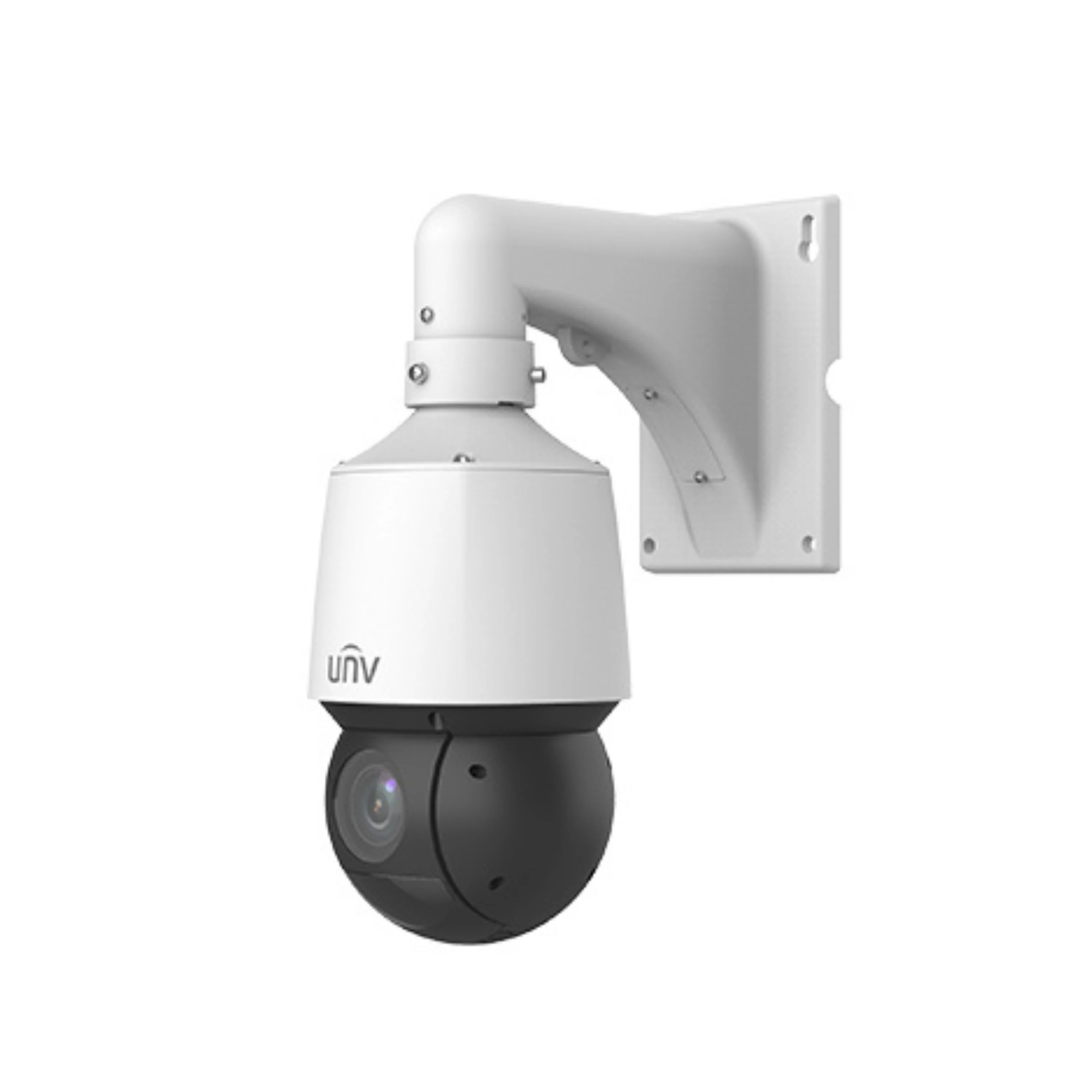

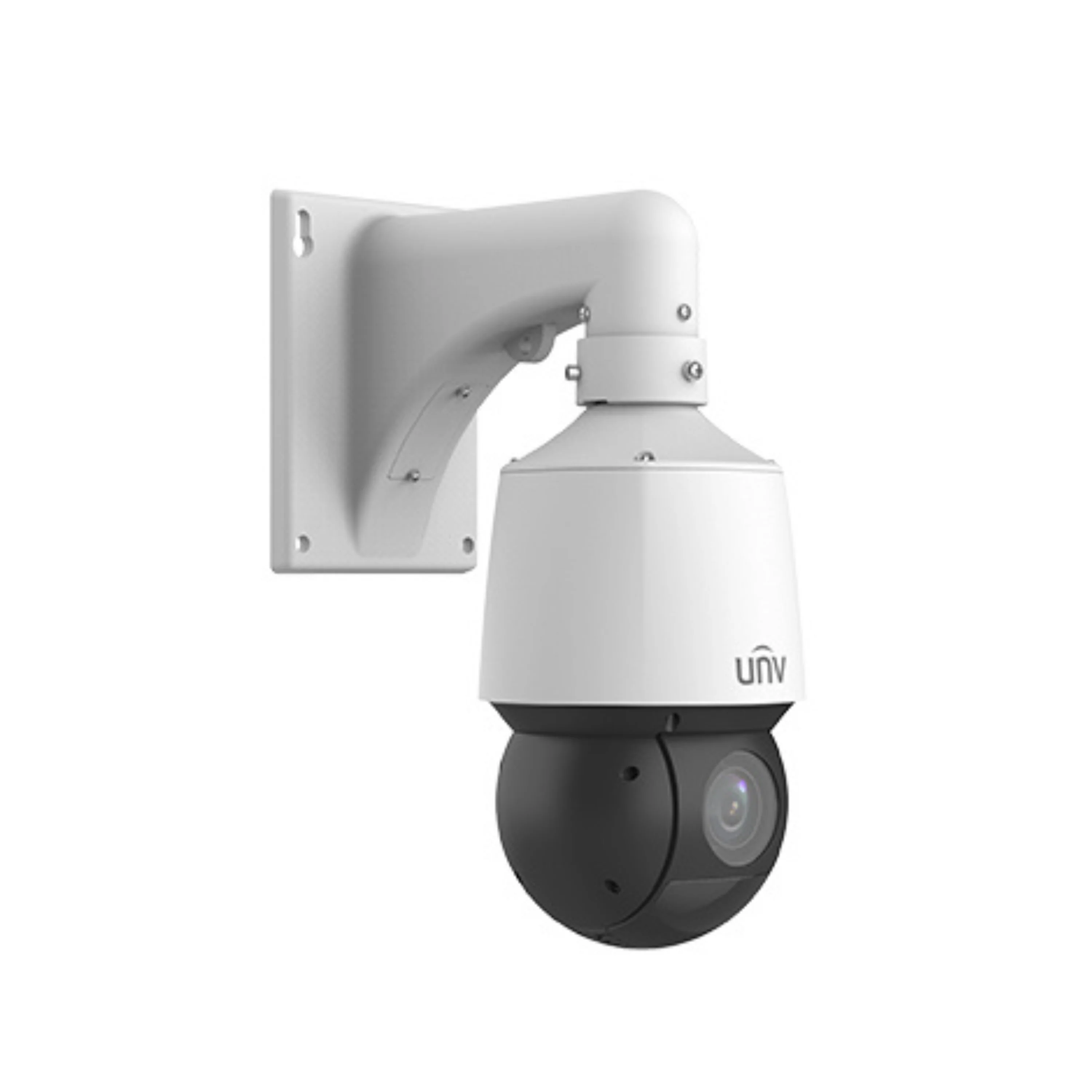

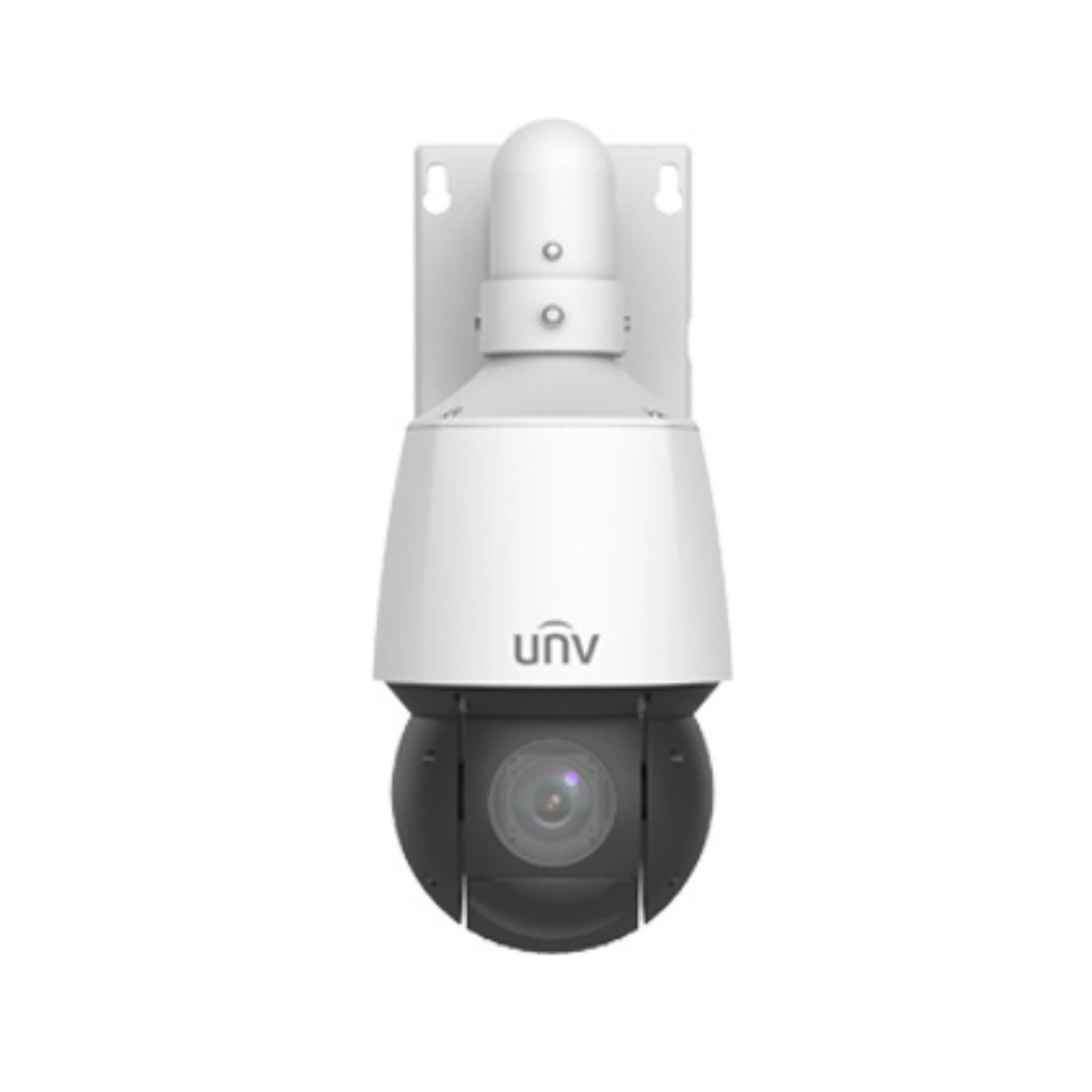

UNV 2MP 16x LightHunter Network PTZ Dome Camera | UNV-IPC6412LR-X16-VG

This advanced PTZ (Pan-Tilt-Zoom) dome camera is meticulously engineered to provide exceptional security features and cutting-edge technology. With a 2-megapixel sensor and 16x optical zoom, the UNV-IPC6412LR-X16-VG ensures clear and detailed visuals, optimizing identification and monitoring in various scenarios.

Features

• High quality image with 2MP, 1/2.8"CMOS sensor
• 1920*1080@30fps in the main stream
  Ultra 265, H.265, H.264, MJPEG

• 16X optical zoom allows for closer viewing of subjects

• LightHunter technology ensures ultra-high image quality in low illumination environment
• Micro SD, up to 256GB
  Smart IR, up to 1000m (328ft) IR distance

• DC 12V±25% or PoE+ (IEEE 802.3at)
• IP66protection

Technical Specifications

Camera

• Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS
• Minimum Illumination:
• Colour: 0.003Lux ( F1.7, AGC ON)
• 0 lux with IR
• Shutter: Auto/Manual, 1 ~ 1/100000s

• Day/Night: IR-cut filter with auto switch (ICR)
• S/N: >52dB

• WDR: 120dB

Lens

• Lens Type: 5m~ 80mm, AF automatic focusing and motorized zoom lens.
• Optica Zoom: 16
• Iris: F1.7(W) - F2.8(T)
• Angle Of View (H): 51.70° ~ 4.89°
  Angle Of View (V): 30.49° ~ 2.75°

• Angle Of View (O): 63.59° ~ 5.77°



DORI

• DORI Distance
• Lens (mm): 5 & 80
• Detect (m): 77.6 & 1241.4
• Observe (m): 31 & 496.7
• Recognize (m): 15.5 & 248.3
• Identify (m): 7.8 & 124.1

Illuminator

• IR Range: Up to 100m (328Ft)
• Wavelength: 850nm

• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate:
• Main Stream: 2MP(1920*1080),Max 30fps;
• Sub Stream: 720P(1280*720), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-Code: Support
• OSD: Up to 8 OSDs
• Privacy Mask: 24 areas, up to 4 areas per scene

• ROI: Supported
• Video Stream: Triple Streams


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Supported
• Flip:Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• HLC: Supported

• BLC: Supported
• Defog: Digital Defog

Events

• Basic Detection: Motion detection,  Tampering alarm.

• General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication

Storage

• Edge Storage: Micro SD, up to 256 GB
• Network Storage: ANR,NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS

• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
• User/Host: Up to 32 users. 3 user levels: administrator, operator and common user
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation / EZView / EZLive
• Web Browser:
• Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Pan & Tilt

• Pan Range 360°
• Pan Speed 0.1°/s ~ 80°/s
• Preset speed: 80°/s
• Tilt Range -15° ~ 9'°
• Tilt Speed 0.1°/s ~ 80°/s
• Preset speed: 80°/s
• Number of Presets: 1024
• Preset Patrol 16 patrols, up to 64 presets for each patrol
• Route Patrol: 16 patrols, up to 32 actions for each patrol
• Recorder Patrol: 16 patrols, up to 128 actions for each patrol
• Patrol Stay Time 15s~1800s
• Present Image Freeze N/A
• Home Position Support

Interface

• Audio I/O: N/A
• Alarm I/O: N/A
• Serial Port: N/A
• Built-in Mic: N/A
• Built-in Speaker: N/A
• Wifi: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Outpout:  N/A

Certification

• EMC:
• CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020 )
• FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
• Safety:

• CE LVD (EN 62368-1:2014+A11:2017)
• CB (IEC 62368-1:2014)
• UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863)
• Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

• Power DC: DC12V(±25%,3A), PoE+(IEEE 802.3at)

• Power consumption: Max 20W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions: (Ø x H) Φ162 x 293 mm (Φ6.4” x 11.5”)
• Weight: 1.74kg (3.95lb)
• Working Environment: -40℃ ~ 65℃(-40°F ~ 149°F)，Humidity: ≤95% RH (non-condensing)

• Storage Environment: -40℃ ~ 70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)

• Surge Protection: 6KV
• Reset Button: Support
