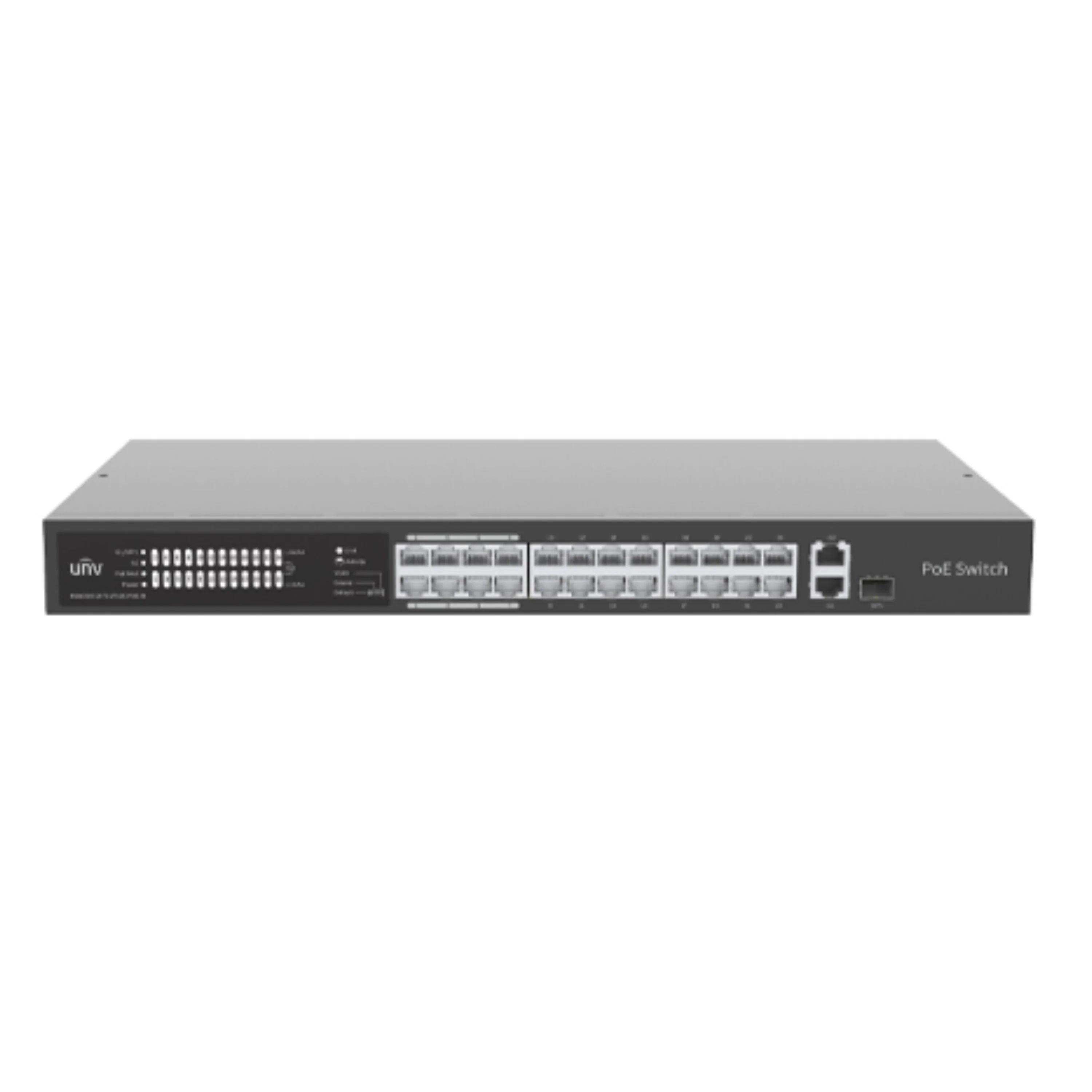

UNV Ethernet Switch Host | UNV-NSW2020-24T1GT1GC-POE-IN

Introducing the UNV Ethernet Switch Host, model UNV-NSW2020-24T1GT1GC-POE-IN. This Ethernet switch is designed to provide efficient and reliable network connectivity, featuring a range of ports and Power over Ethernet (PoE) capabilities for enhanced functionality.

Features

• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

Technical specification

• Ports: 24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
• Standards: IEEE802.3u,IEEE802.3z, IEEE802.3ab, IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az
• Switching capacity: 8.8Gbps
• Forwarding performance:  6.55Mpps
• Packet Buffer: 4Mbit
• MAC: 16K
• Dimensions (W×D×H):  17.32*9.63*1.73 INCHES
• Weight:  2.93KG
• Power supply: AC: 100-240V, 50/60Hz
• PoE: 802.3at/af （4/5+，7/8-）
• Max. PoE Power:
• Max capacity:  370W
• Max capacity for single port: 30W
• Prior Ports: 1~8
• Cooling Fans: 1
• Operating temperature: 0°C-40°C (32°F-104°F)
• Operating humidity: 10%～90% (noncondensing)
• Storage humidity: 5%～90% (noncondensing)
• Indicator POWER:
• Steady on: AC input is normal
• Off: No AC input
• PoE power supply
• Steady on: PoE power supply is normal
• PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification
• Steady on: The POE power supply power of the whole machine is greater than 85% of the specification
• LINK/AC: Off: No link Steady on Linked Flashing: Transmitting data
• Working Mode:
• Default(Normal mode): All ports can communicate with each other.
• VLAN(Secure mode): Downlink ports can communicate only with uplink ports. Enabling the PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period.
• Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
