UNV Housing Bracket | UNV-TR-UV06-A-IN

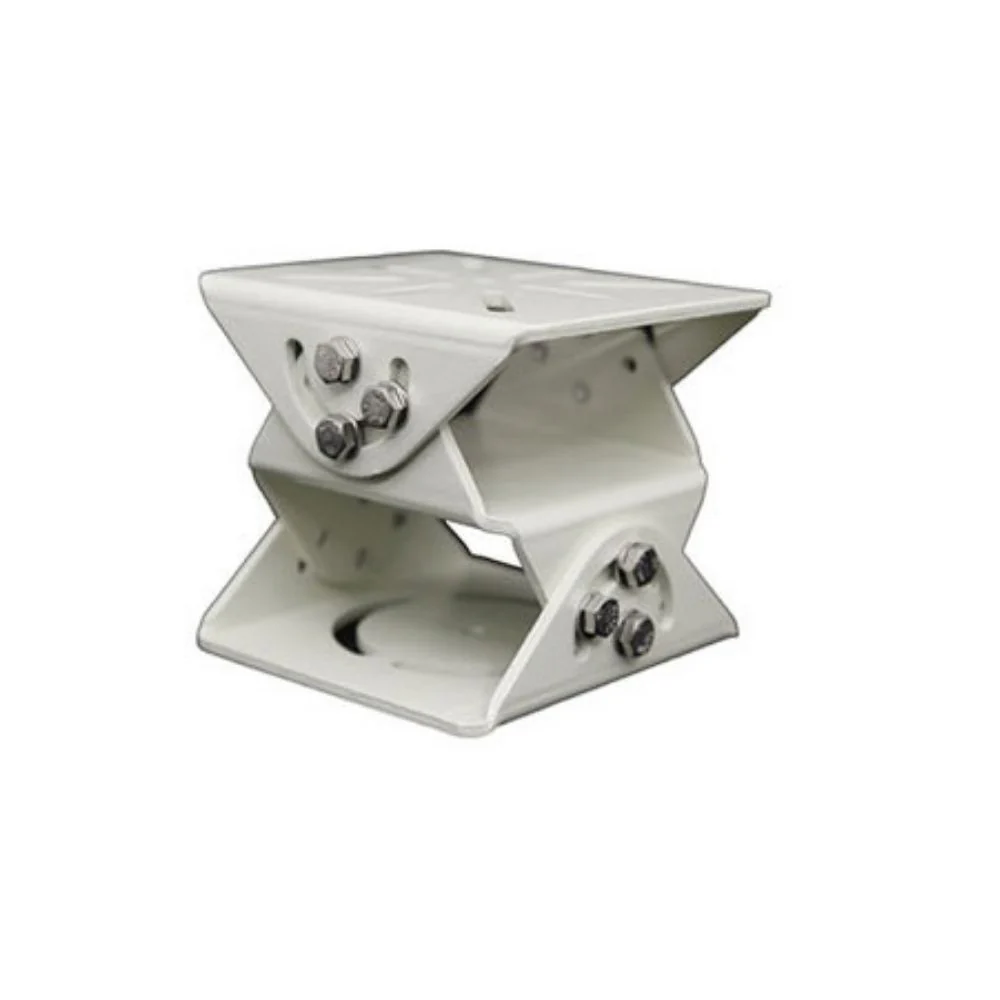

The UNV Housing Bracket (Model: UNV-TR-UV06-A-IN) is designed to provide a versatile mounting solution for housing in outdoor environments, suitable for pole or rail installation. Here are the technical specifications for this housing bracket:

Technical Specifications

• Application: Outdoor, pole, or rail installation for housing.

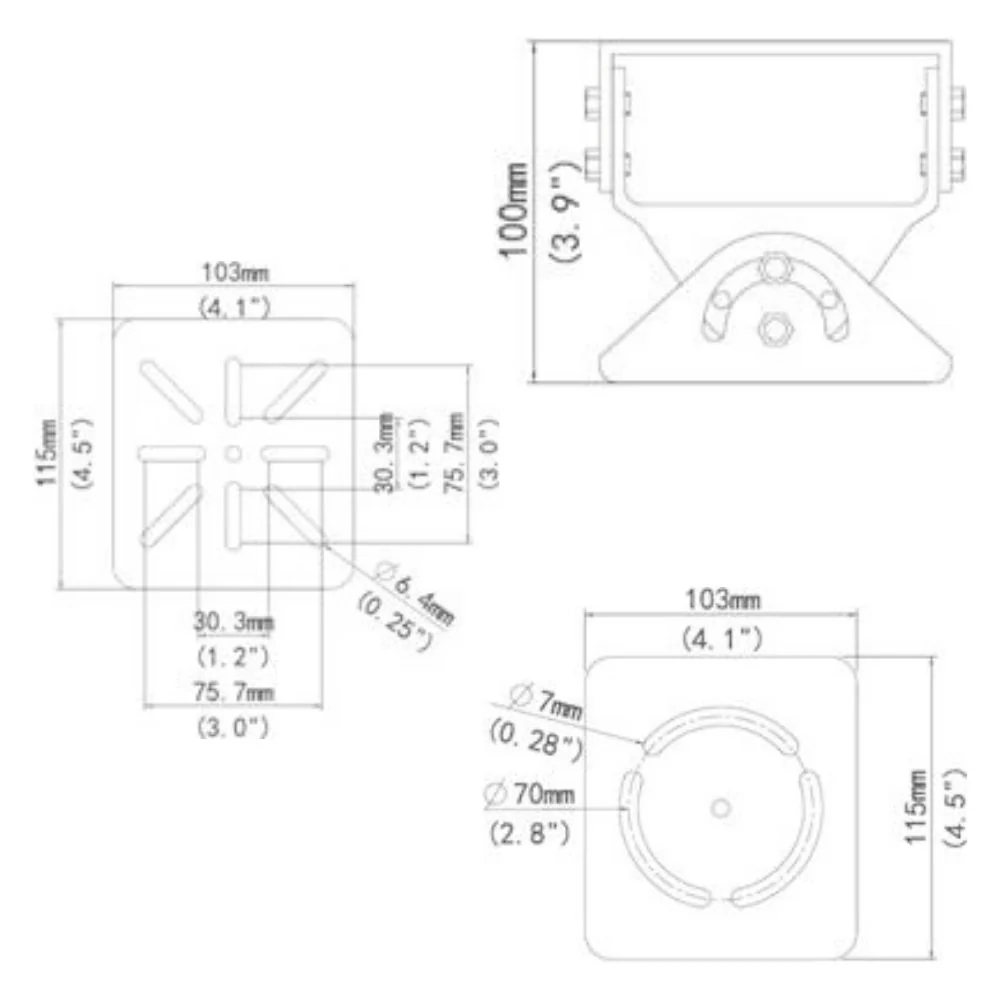

• Dimensions: 115mm x 103mm x 100mm (4.5” x 4.1” x 3.9”)

• Weight: 0.8kg (1.76lb)

• Bearable Load: 20kg (44.1lb)
• Material: Aluminum alloy
• Adjustable Range: Horizontal: 360°; Vertical: 90°

Product Literature

• UNV TR-UV06-A-IN Datasheet
• UNV IPC Accessories Installation Guide
