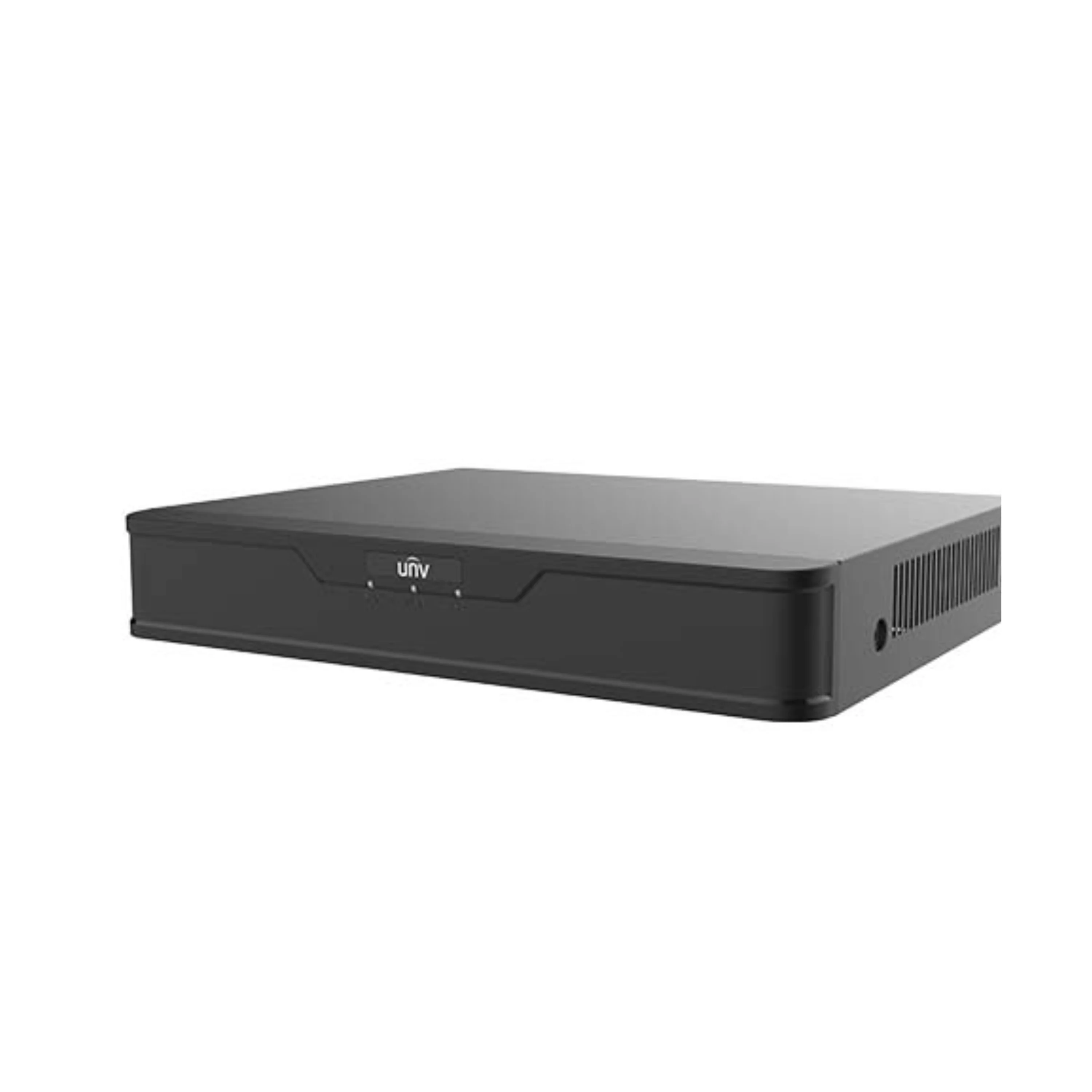

UNV Digital Video Recorder | UNV-XVR301-08G3

Features

• Support H.265/H.264 video formats
• Support audio over coaxial cable(only for TVI cameras)
• Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
• 4/8-channel BNC input
• Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
• Long transmission distance over coaxial cable
• Support mainstream cameras of ONVIF and RTSP protocols
• The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Technical Specification

Video/Audio Input:

• Analog Video Input:  8-ch, BNC
• IP Video Input: 4-ch(only IP up to 8ch), each channel up to 4MP
• Supported Analog Camera Types:
• Support CVBS input Support AHD input: 5MP@12fps
• 4MP@15fps
• 1080P@30fps
• 720P@30fps
• Support TVI input: 5MP@12fps
• 4MP@15fps
• 1080P@30fps
• 720P@30fps
• Support CVI input: 1080P@30fps
• 720P@30fps
• Support CVBS input
• Audio Input: 1-ch, RCA
• Audio Compression:G.711U

Video/Audio Output

• VGA Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• HDMI Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• Audio Output: 1-ch, RCA
• Synchronous Playback: HD:4-ch SD:8-ch
• Live view display: HDMI/VGA: 1/4/6/8/9/16
• Two-way Audio:1-ch, RCA

Snapshot

• FTP/Schedule/Event Snapshot:  Schedule snapshot is not supported 8-ch snapshot, up to 704*576 resolution

Network

• Incoming Bandwidth:  32Mbps (Up to 40Mbps after all-analog channel conversion)
• Outgoing Bandwidth: 64Mbps
• Remote Users: 128
• Protocols: TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
• Browser: IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows

Encoding

• Recording Resolution: 5MP Lite/4MP Lite /1080P Lite/720P/CIF
• Recording Frame Rate: Main stream:  5MP Lite@6fps,  4MP Lite@8fps, 1080P Lite@12fps, 720P@12fps Sub stream:D1@6fps, D1@8fps, D1@12fps,  D1@12fp
• Audio Sample Rate: 8KHz,16 bit per channel
• Audio Bit Rate: 64Kbps per channel

Decoding

• Capability: Analog: 4 x 5MP Lite@6,4x 4MP Lite@8, 4x 1080P Lite @12fps IP: 1 x 4MP@30, 2 x 1080P@30

Hard Disk

• SATA: 1 SATA interface
• Capacity: Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature)

Smart Alarm

• VCA Detection: Ultra Motion Detection(UMD) for analog:4-ch
• VCA Search:  Behavior Search

General Alarm

• General Alarm: Motion detection
• Alert Alarm:  IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
• USB Interface: Rear panel: 2 x USB2.0

General

• Power Supply: 12V DC
• Power Consumption: ≤ 8 W( without HDD )
• Working Environment: -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
• Dimensions(W×D×H): 260mm ×226mm× 47mm (10.2" × 8.9"×1.8")
• Weight ( without HDD ): ≤1.1 Kg ( 2.42lb )

Certification

• Certification UL: CE/FCC/RoHS/WEEE

Product Licenciature

• UNV-XVR301-08G3 Datasheet
• UNV-XVR301-08G3-Quick Guide-V2.00-EN
