Viking G5 Solar Swing Gate Operator | VIK-VA-G5NXSLR

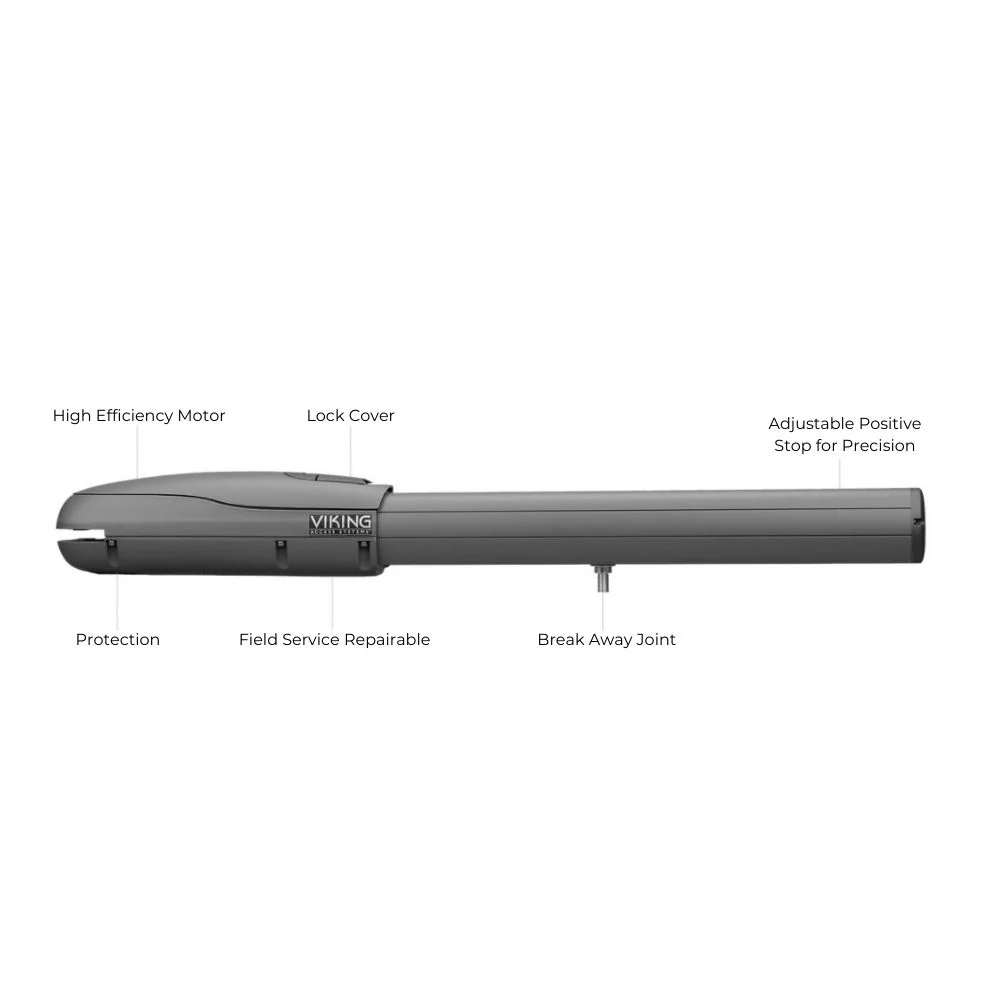

The Viking G-5™ leads the industry in linear actuator swing gate operators. This new design boasts a maximum gate capacity of 2000 lbs. and 100% duty cycle operation, making it unlike any other. It features a convenient electronic manual release switch and is pre-wired for easy and quick installation. The G-5™ is now powered by the V-Flex control board, including a speed control dial and diagnostic LCD display. This new design is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations. The G-5™ is ETL and UL compliance.

Note: Battery not included

Features

• Adaptive motor control
• Built-in thermostat-controlled heater
• Built-in voltmeter
• Lightning strike protection
• Multiple power options
• On-board display
• True battery back-up
• UL325 compliant
• Two monitoring inputs w/ up to 4 devices per input
• (Optional) Large box with 120 V outlet
• Adjustable speed control
• Anti-tailgating feature
• Fail secure mode
• Fail-safe mode
• Lockable cover

• Manual release - electronic
• Built-in 3A solar charger

Manufacturer's Warranty Period

• 3 Years

Technical Specifications

• Maximum Gate Capacity: 16 ft at 1000 lb
• UL 325 Classification: Class I
• Operating Voltage: 24VDC
• Main Power Source: SOLAR 12VDC
• Accessory Power: 24VDC - 750mA
• Power Consumption: - Sleep 19mA
• Motor Current (Typical): 3.0A
• Operating Temperature: -4°F (-20°C) to 160°F (71°C)
• Opening Angle: 135°
• Gate Speed: 14-16 sec./90°

Product Literature

• G5 Swing Gate Operator Solar User Manual
• G5 Swing Gate Operator Solar Specifications Sheet
• Viking Limited Warranty Policy
