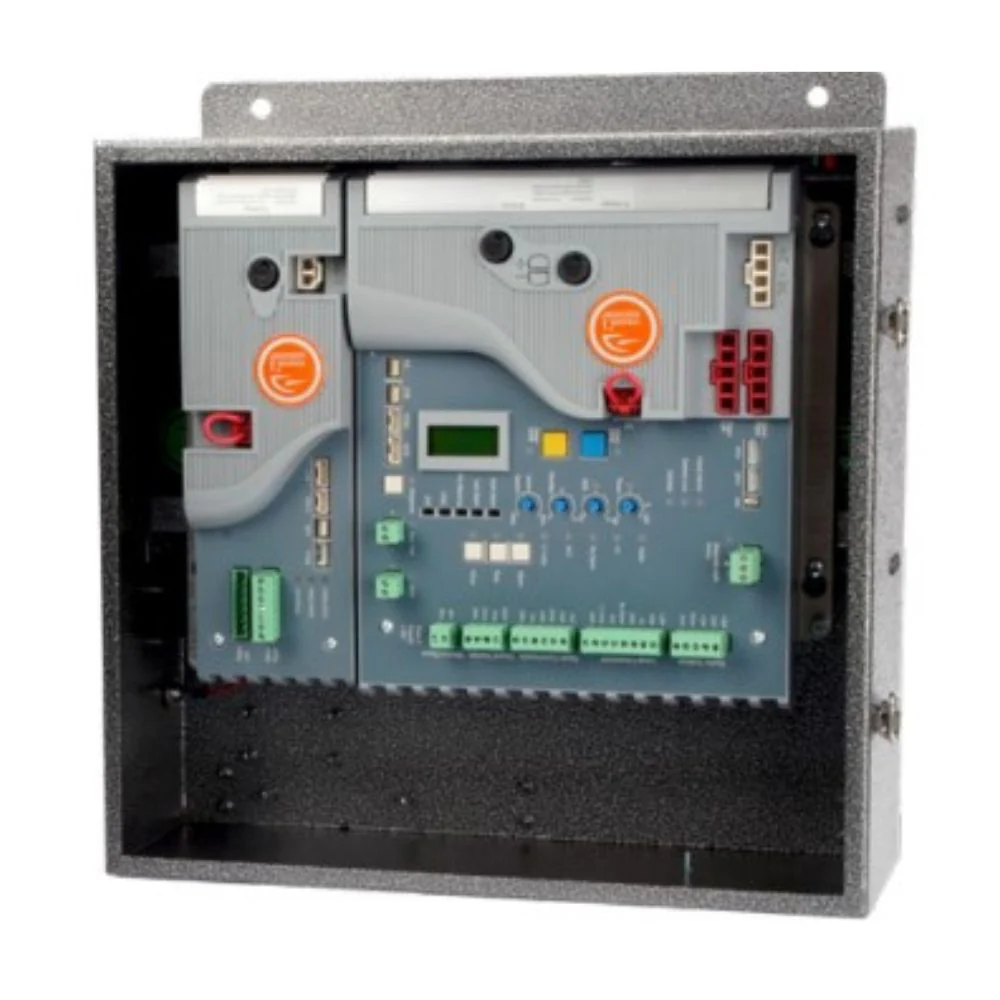

Viking G5 Big Electronic Control Unit – Dual Leaf | VIK-VA-ECUBMSNX

The Viking G-5™, leads the industry in linear actuator swing gate operators. This new design boasts a maximum gate capacity of 2000 lbs and 100% duty cycle operation, making it unlike any other. Featuring a convenient electronic manual release switch and pre-wired for easy and quick installation. The G-5™ is now powered by the V-Flex control board, including a speed control dial and diagnostic LCD display. This new design is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations. The G-5™ is ETL and UL compliance.

Features

• UL 325 compliant
• Two monitoring inputs with up to 4 devices per input
• On board display
• Built-in voltmeter
• Lightning strike protection
• 120V, 220V, or low voltage or solar power option
• Adaptive motor control
• Adjustable speed control
• Anti-tailgating feature
• True battery back-up
• Built-in thermostat-controlled heater
• Two 4Ah batteries included
• 120V receptacle
• Enclosure
• Aluminum construction
• Powder coated
• Post-mount options built-in
• Pre-punched holes for conduit
• Padlock latch
• IP54 ingress protection

Manufacturer's Warranty Period

• 3 years

Technical Specifications

• Compatible Models: G5
• Duty Cycle: 100%
• Operating Voltage: 24VDC
• Voltage Current Specs: 120VAC - 1.5A or 240VAC - 1.0A (each motor)
• Main Power Frequency: 50Hz / 60Hz
• Main Power Fuse: 4A Timed
• Alternative Power Source: 24VAC / VDC (60VA) or Solar
• Accessory Power: 24VDC - 750mA
• Power Consumption Single-Idle: 70mA
• Power Consumption Dual-Idle: 125mA
• Motor Current (Typical): 2.0A
• Operating Temperature: -20°F (-28°C) to 131°F (55°C)
• Dimensions Standard Box (L x D x H): 16.375 x 6.25 x 17.875 in
• Dimensions Big Box (L x D x H): 18.75 x 8.125 x 18.2 in
