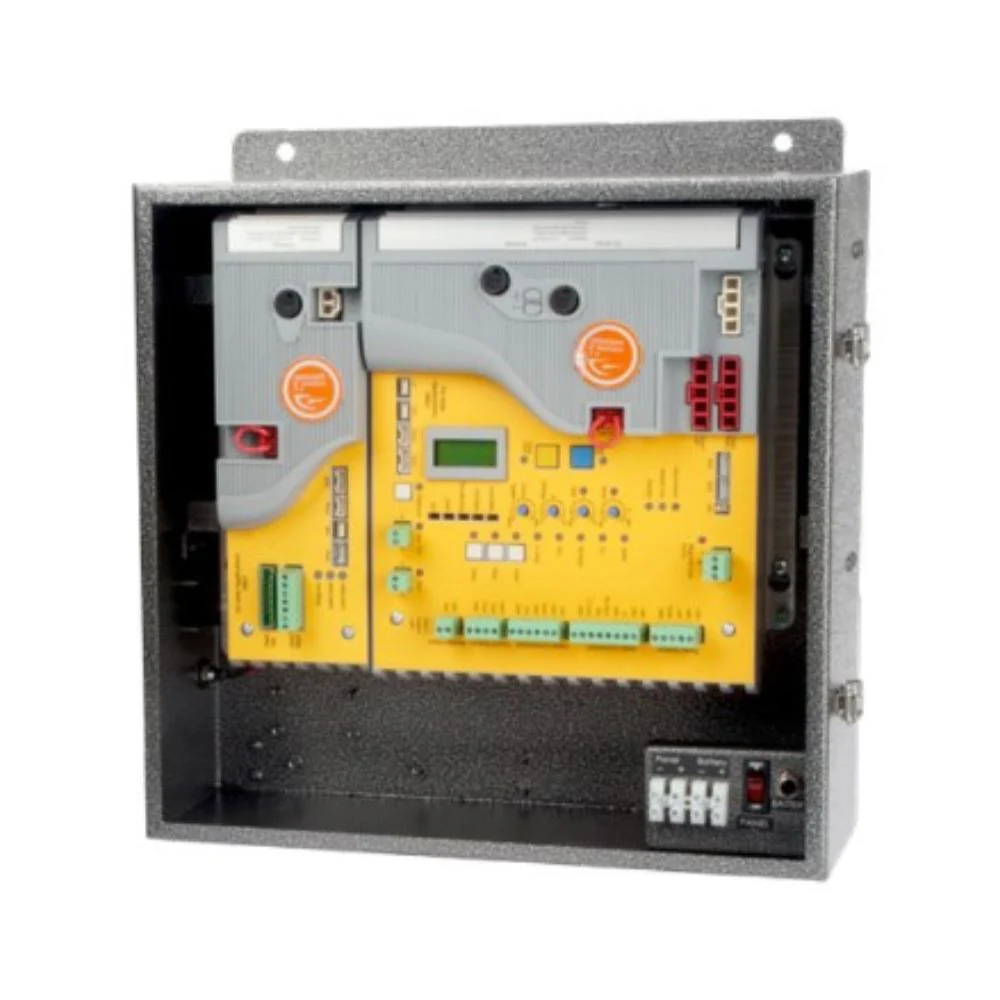

Viking G5 - Solar ECU Big Single Leaf | VIK-VA-ECUBSNXSLR

Features

• UL 325 compliant
• Two monitoring inputs w/ up to 4 devices per input
• Onboard display
• Built-in voltmeter
• Lightning strike protection
• 12V Solar panel input
• 12V Battery charger
• Solar panel switch
• Battery switch
• The big-box can hold a 35 Ah battery
• Aluminum construction
• Powder-coated
• Lockable door
• Rainproof enclosure
• Pre-punched holes for conduits
• Sleep mode
• Adaptive motor control
• Adjustable speed control
• Anti-tailgating feature
• Built-in 3A solar charge regulator

Manufacturer's Warranty Period

• 3 years

Technical Specifications

• Compatible Models: G5 Solar
• Operating Voltage: 24VDC
• Main Power Fuse: 4A Timed
• Power Source: 12VDC
• Accessory Power: 24VDC - 750mA
• Power Consumption - Sleep: 19mA
• Motor Current (Typical): 2.0A
• Operating Temperature: -4°F (-20°C) to 160°F (71°C)
• Dimensions Standard Box (L x D x H): 16.75 x 6.125 x 15.625 in
• Dimensions Big Box (L x D x H): 18.75 x 8.125 x 18.2 in
