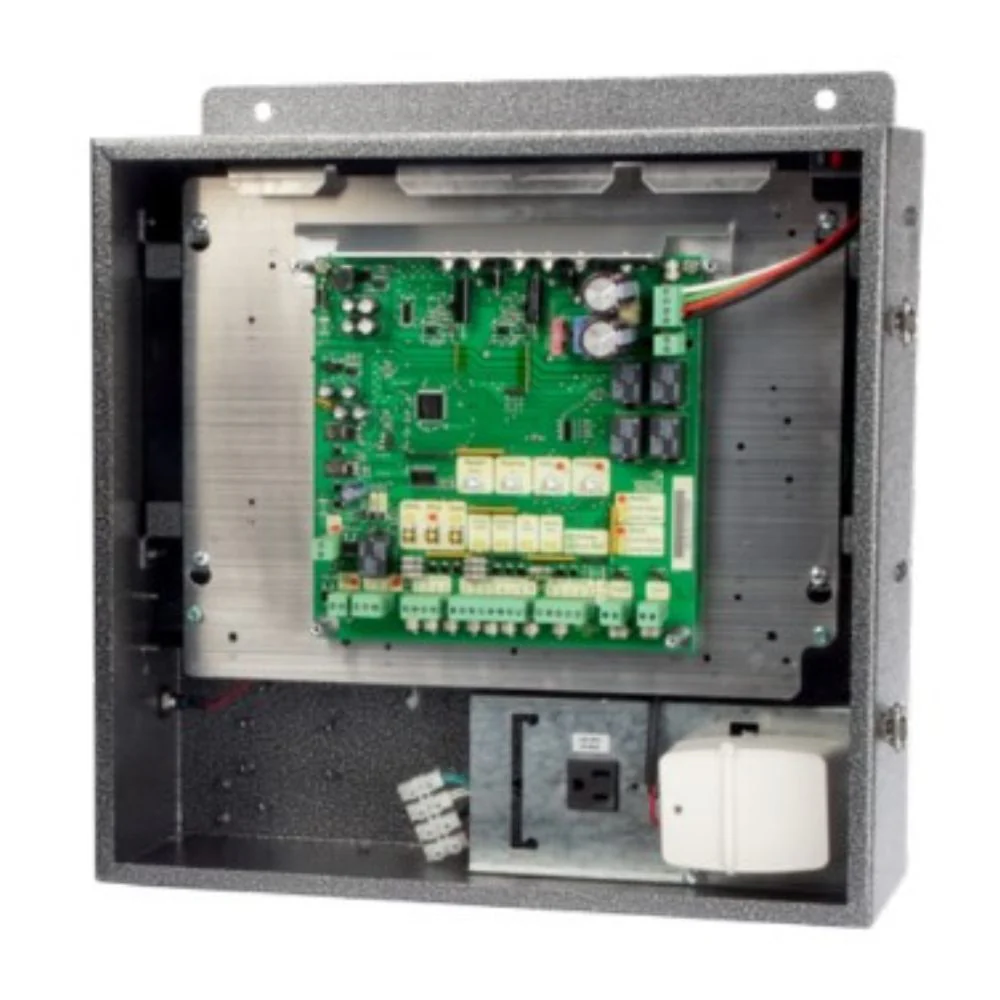

Viking E-4 Electronic Control Unit | VIK-VA-ECUE4-2

The Viking E-4 Electronic Control Unit (ECU) with the product name VA-ECUE4 is a control unit designed for Viking gate operators. It serves as a vital component in managing and controlling the operation of the gate, ensuring its functionality and safety.

Features

• UL 325 compliant
• Two monitoring inputs with up to 4 devices per input
• Lightning strike protection
• 24V Solar panel input
• 24V Battery charger
• Low voltage plug-in transformer included
• Two AC receptacles
• 120V toroid transformer optional
• Sleep mode
• Adaptive motor control
• Adjustable speed control
• Two 6Ah batteries included
• Big box option
• Enclosure
• Aluminum construction
• Powder-coated
• Post-mount options built-in
• Pre-punched holes for conduit
• Padlock latch
• IP54-certified ingress protection

Manufacturer's Warranty Period

• 3 years

Technical Specifications

• Compatible Models: E4
• Operating Voltage: 24VDC
• Voltage Current Specs: 120VAC - 2.0A or 240VAC - 1.0A (each motor)
• Main Power Frequency: 50Hz / 60Hz
• Main Power Fuse: 4A Timed (only with 120V option)
• Alternative Power Source: 24VAC / VDC (60VA) or Solar
• Accessory Power: 24VDC - 750mA
• Power Consumption - Sleep: 6mA
• Motor Current (Typical): 2.0A
• Operating Temperature: -20°F (-28°C) to 131°F (55°C)
• Dimensions Standard Box (L x D x H): 16.375 x 6.25 x 17.875 in
• Dimensions Big Box (L x D x H): 18.75 x 8.125 x 18.2 in
