Viking L3 Residential / Commercial Slide Gate Operator | VIK-VA-L3SPS
Viking L3 Residential / Commercial Slide Gate Operator | VIK-VA-L3NX

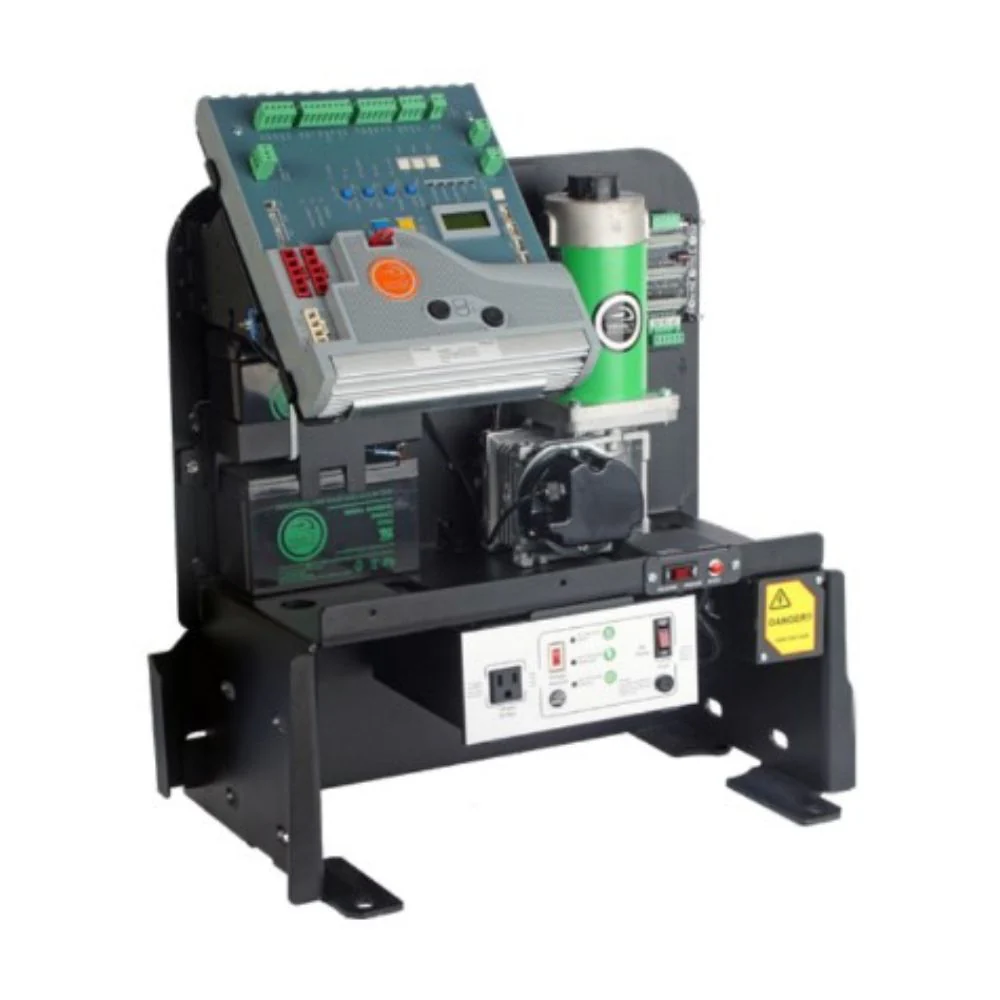

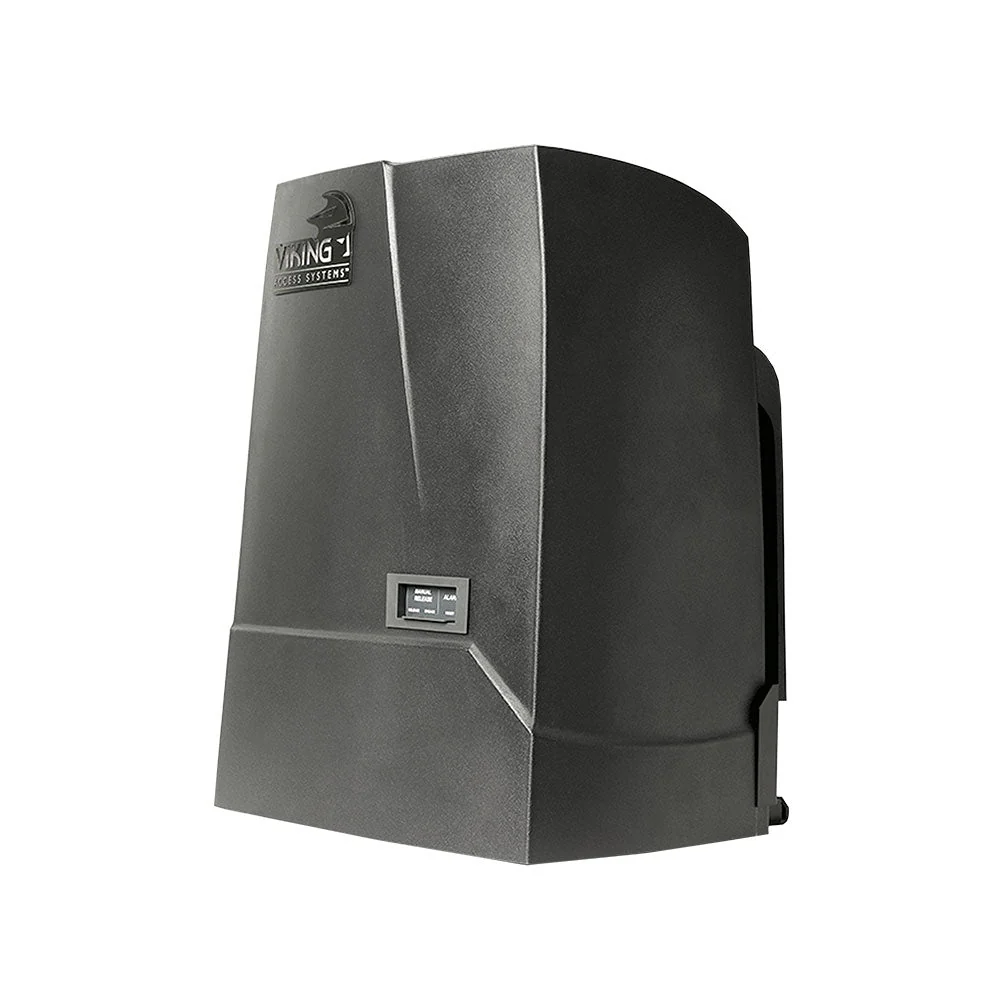

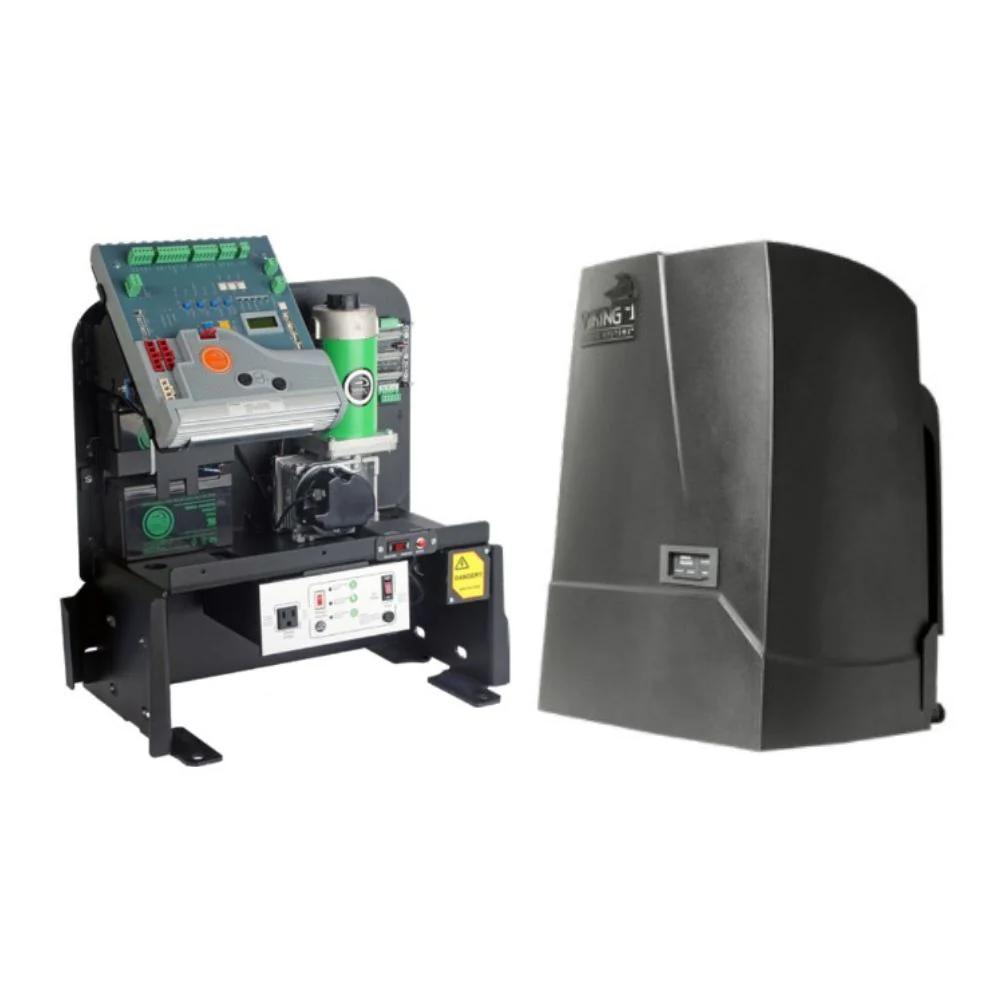

The L-3 gate operator has the capacity to operate slide gates up to 1600 lbs. and 60 ft. in length at 100% duty cycle under extreme conditions. This efficient operator provides a solution for high-traffic residential and commercial slide gate applications. The Viking L-3 gate operator offers efficiency and technology combined in a single package. It features a V-Flex control board with an onboard diagnostics LCD display and a removable power supply box for low-voltage wiring. The new chassis design provides easy viewing of the controls and integrated post-mount provisions allowing it to be raised from the ground if needed.
Viking L3 Slide Gate Operator Features
-
Max Gate Capacity
1600 lbs/ 60'
This is the maximum amount of weight and length that the gate operator model can push/pull. -
Max Operating Speed
12" per second
Based on the speed selected when installing, this will be the speed your operator pushes/pulls your gate. -
Removable Power Box
For remote 24VDC power supply
Convenient fuse access, L.E.D. status indicators, power switch, E-Z access power outlet & set-up 120V/240V. -
Operating Temp
-20°F up to 160°F
The Viking gate operator will continue to function within this temperature range. -
Warranty
5 Yr Commercial / 7 Yr Residential
Please refer to warranty policy on Viking website for more information. -
Strike Protection
10,000 Amps / 20,000 Volts
Leading the industry with the best in-unit lightning and surge protection.
Please Note: Viking L3 Residential / Commercial slide gate operator must have a photo beam to function. It is recommended you add a photo beam for convenience and/or to minimize complications. This accessory is available in the product options.
