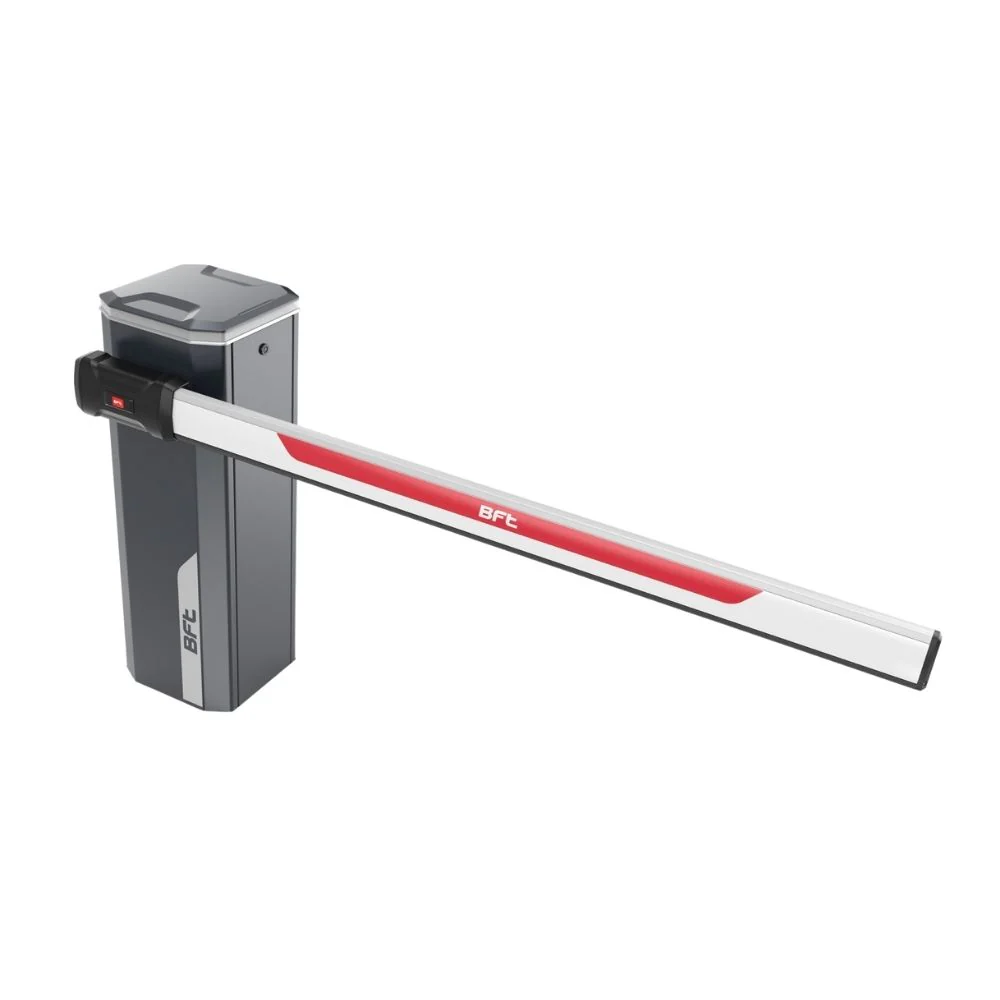

BFT MAXIMA ULTRA 36 XL 230V Barrier Opener (Fits 20' Booms) | BFT-P940094-00002

Boom, Omega, and Support connections are not included. 230V electromechanical barrier with three-phase asynchronous motor and inverter, for controlling gates from 6' to 20' wide. The opening time is between 0.7 and 4 seconds, with a slowdown. Maximum barrier length 20'. Suitable for installation in areas with a high frequency of movement and frequent inversion of barrier movement (e.g., motorway toll booths, car parks with high traffic flows, etc.). Version with a strong spring. Colour RAL 7015.

Note: Boom, Omega, and Support Connection are not included.

Manufacturer's Warranty Period

• 2 Years

Technical Specifications

• Opening or closing time: From 0.7 to 3.9 s
• Control unit: CSB-XT
• Motor type: Three-phase asynchronous
• Gear unit type: In oil bath
• Inverter: Yes
• Slowdown: Yes
• Impact reaction: Encoder
• Locking: Mechanical
• Release: Inside the structure
• Frequency of use: Continuous
• MCBF (Mean Cycles Between Failures): 7000000 Op
• Environmental conditions: -40 ÷ 140 °F (-40 ÷ 60 °C)
• Protection rating: IP55
• Interconnectivity: No
• Clear opening: From 6' to 20' (2m to 6m)

Product Video

Product Literature

• BFT P940094 00002 Instruction Manual
• BFT P940094 00002 Quick Reference Guide
• BFT P940094 00002 Spec Sheet
• BFT CSB Xtreme UL Board Manual
