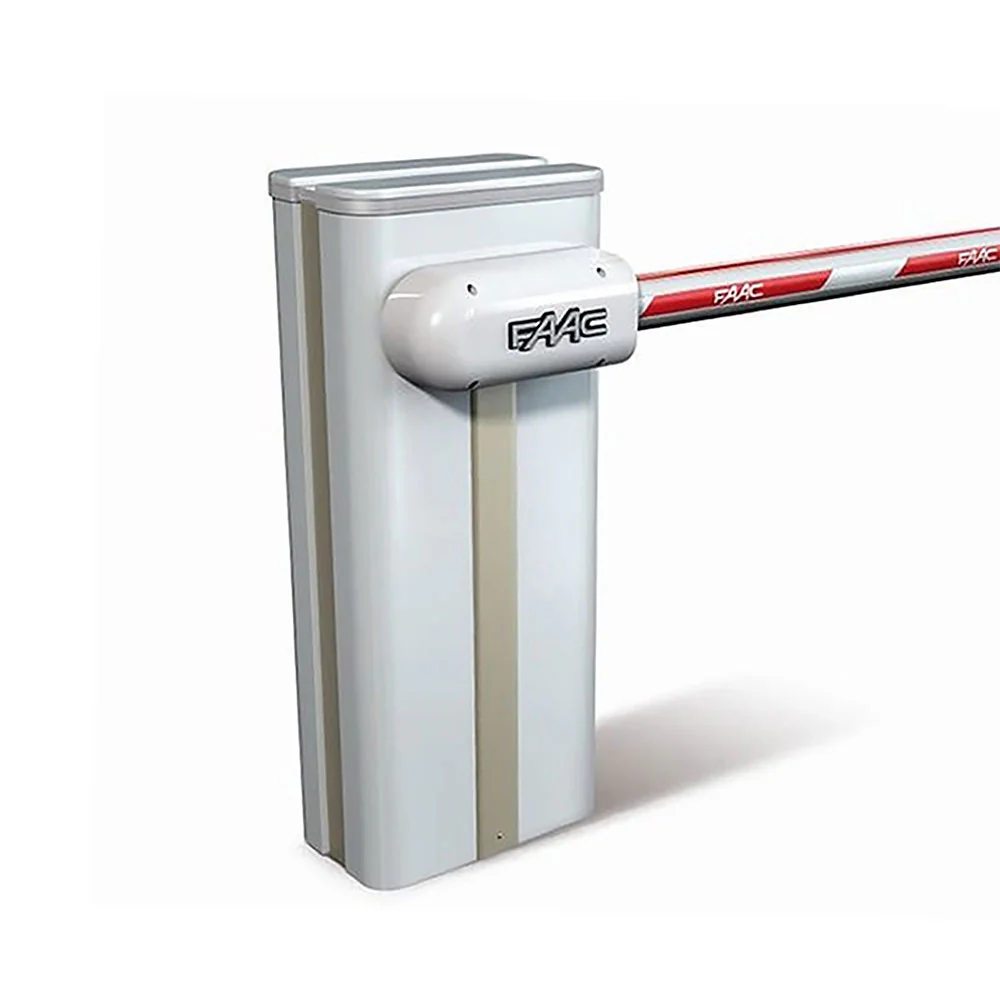

FAAC B680H Automatic Barrier Gate (S Kit)

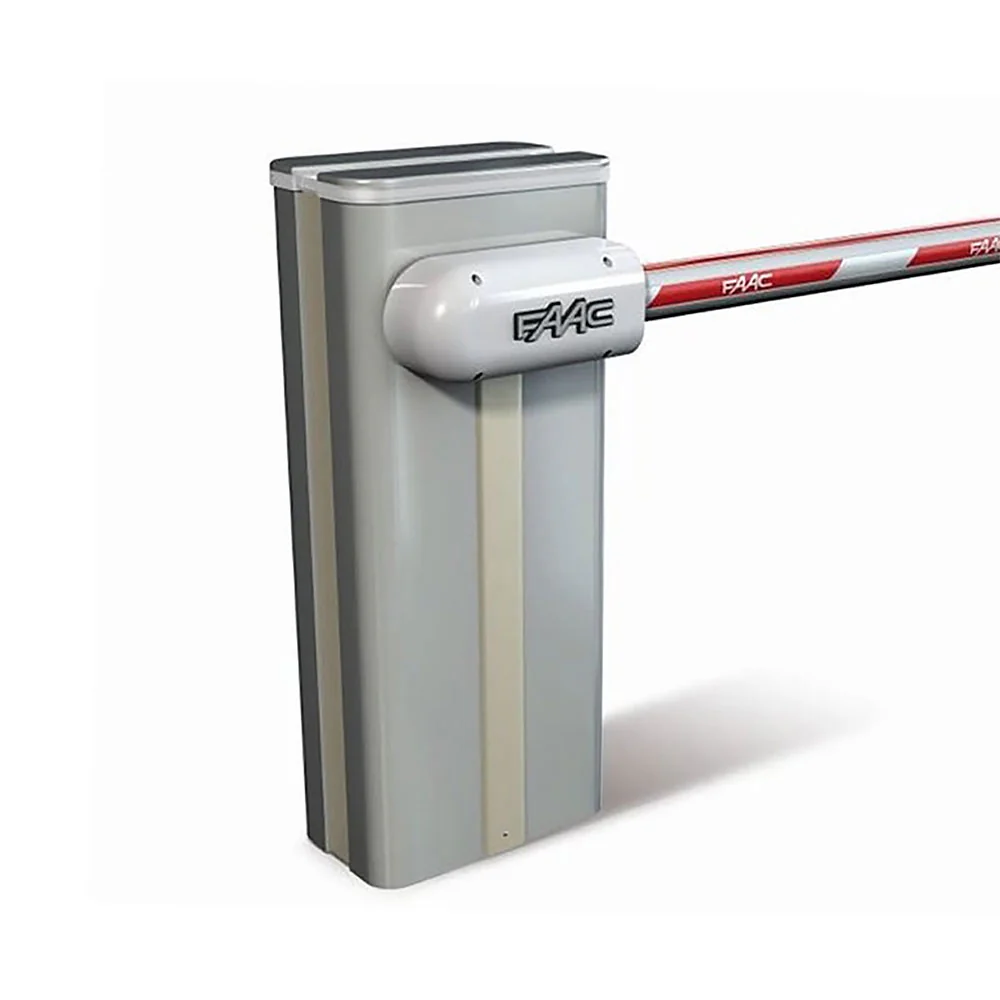

The automated system consists of a white aluminum beam with reflectors, optional signaling lights, a covering compartment, and a steel upright profile. Inside the compartment, there is an operator consisting of the upright profile with a hydraulic unit and two plunging pistons fixed to it, which, by means of a rocker arm, rotate the beam. The latter remains balanced thanks to a balance spring fitted on one of the two plunging pistons. The electronic control equipment is also housed on the upright, inside a compartment, and the whole is protected by the external covering compartment.

The system features an adjustable electronic anti-crushing safety, a device that guarantees stopping and locking of the beam in any position, and a convenient manual release for use in case of blackout or inefficiency.

Includes

• Body B680H
• Cover
• S Bracket
• Balancing Spring

Notes

• For 6.5 - 26.2 ft. openings
• Make sure to order the barrier arm when ordering the kit (barrier arm not included)

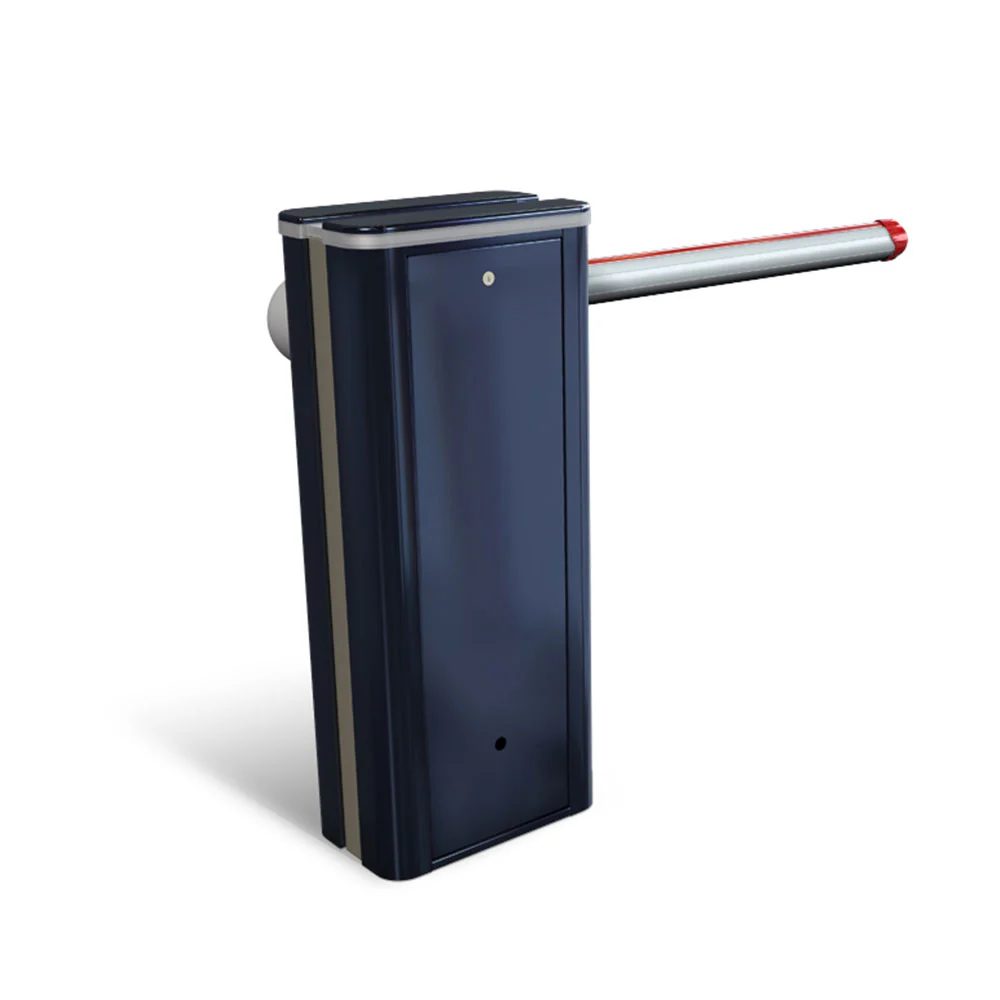

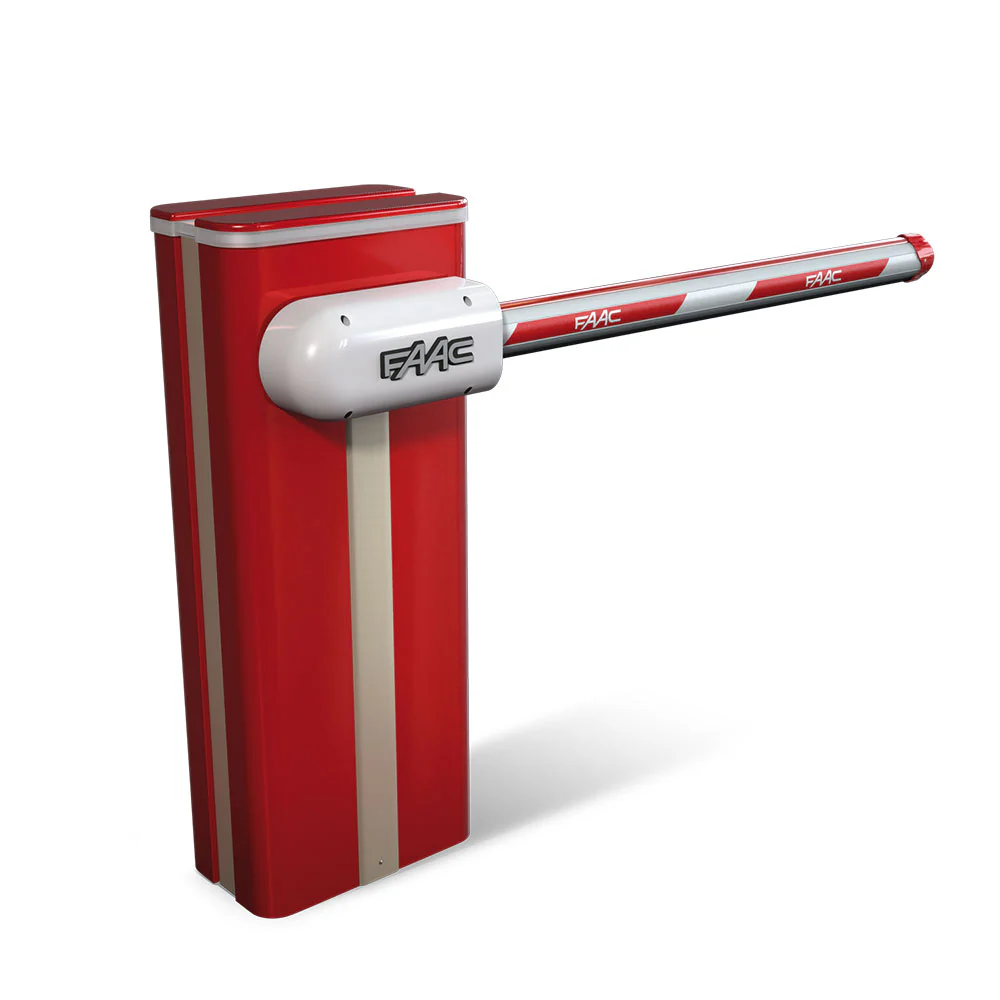

• Kits with blue and red covers have a non-standard lead time

Manufacturer's Warranty Period

• 3 years
