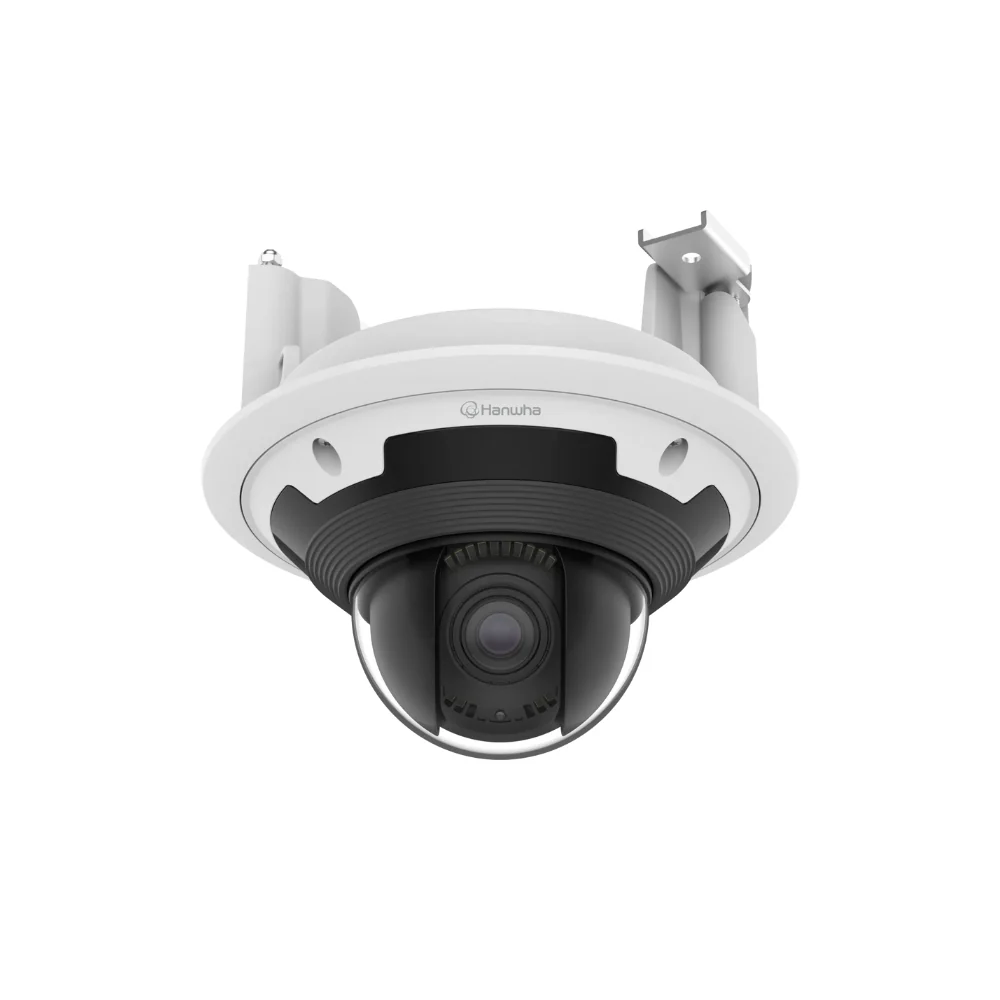

Hanwha Vision Plenum In-Ceiling Housing Mount | HAN-SHD-1370FPW

In-ceiling Mount Plenum compatible with XNV-6123R, XNV-6083RZ/8083RZ/9083RZ, XNV-6083Z/8083Z, XNV-6083R/8083R/8093R/9083R, XNV-8082R/9082R, PNV-A6081R/A9081R

Technical Specifications

• Color: White
• Material: Aluminum
• RAL code: RAL9003
• Product dimensions/weight: ø205x103mm (ø8.07x4.05") / 770g (1.70lb)
• Ceiling hole size: ø181mm (ø7.12")
• Pan / Tilt / Rotate Range: None
• Tile thickness: 10~70mm (0.4~2.8")
• Mount Screw size: TR20
• Max. load: 3kg (6.61lb)
• Conduit hole: 12.7mm(1/2") (M20) / 19.1mm(3/4") (M25)
• Supported products: PNV-A6081R/A9081R, XNV-8082R/9082R, XNV-6083R/8083R/8093R/9083R, XNV-6123R, XNV-6083Z/8083Z, XNV-6083RZ/8083RZ/9083RZ

Product Literature

• Hanwha Vision Plenum in-ceiling housing Mount Manual
