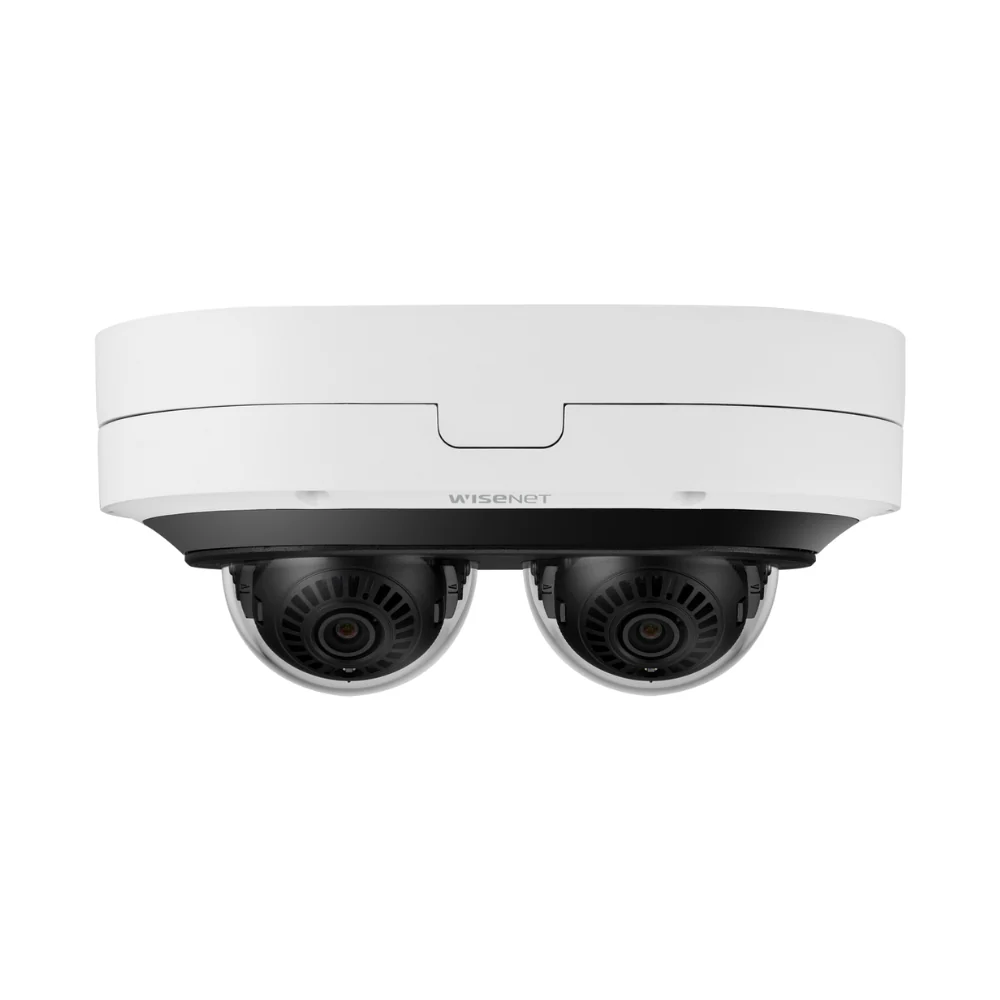

Hanwha Vision 6MP X 2 IR Outdoor Dome Camera | HAN-PNM-12082RVD

This unit uses two 1/2.8" CMOS image sensors to capture 3328 x 1872 resolution video per sensor at 15 fps. IR LEDs provide up to 82' of night vision. The camera's 3.54-6.69mm motorized varifocal lenses each deliver a 96 to 47° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 512GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.

Features

• WiseNR, WiseStreamⅡ, extremeWDR (120dB)
• Maximum 3328x1872 resolution
• Maximum 15fps@6M
• Color: 0.16lux(F1.67, 1/30sec, 30IRE), 0 Lux (IR LED on)
• 3.54~6.69mm motorized varifocal, 78° tilt angle
• IR viewable length: IR 25m(82ft) based on scene
• TPM 2.0(FIPS 140-2 certified)
• IP66, IK10, NEMA4X

Technical Specifications

• Video

• Imaging Device: 1/2.8" CMOS x 2CH
• Resolution: 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate: H.265/H.264: 6MP Max.15fps
• MJPEG: Max.15fps
• Min. Illumination: Color: 0.16lux(F1.67, 1/30sec, 30IRE)
• BW: 0.016lux(F1.67, 1/30sec, 30IRE), 0lux(IR LED on)
• Video Out: USB: micro USB Type B, 1280x720 for installation
• Lens

• Focal Length (Zoom Ratio): 3.54~6.69mm(1.9x) motorized varifocal
• Max. Aperture Ratio: F1.67(Wide)~F2.64(Tele)
• Angular Field of View: H: 96(Wide)~47(Tele)
• V: 51(Wide)~26(Tele)
• D: 113(Wide)~54(Tele)
• Min. Object Distance: 1.5m(4.92ft)
• Focus Control: Simple focus
• Lens Type: Fixed IRIS
• Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range: 0~355° / 0~78° / 0~180°
• Operational

• Camera Title: Displayed up to 85 characters
• Day & Night: Auto(ICR)
• Backlight Compensation: BLC, HLC, WDR, SSDR
• Wide Dynamic Range: extremeWDR(120dB)
• Digital Noise Reduction: WiseNR, SSNRⅤ
• Defog: Support
• Motion Detection: 8ea, 8point Polygonal zones
• Privacy Masking: 32ea, 4point Quadrangle zones
• - Color: Grey/Green/Red/Blue/Black/White
• - Mosaic
• Gain Control: Low / Middle / High
• White Balance: ATW / AWC / Manual / Indoor / Outdoor
• LDC: Support
• Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (2 ~1/12,000sec)
• Video Rotation: Flip, Mirror, Hallway view (90°/270°)
• Analytics: Analytics events*
• - Defocus detection, Motion detection, Tampering, Virtual line(Crossing/Direction), Virtual area(Loitering/Enter/Exit)
• * Support Audio detection and sound classification via optional SPM-4210 I/O box
• Alarm I/O: * Support Alarm via optional SPM-4210 I/O box
• Alarm Triggers: Analytics, Network disconnect, Alarm input via optional SPM-4210 I/O box
• Alarm Events: When alarm trigger occurred
• - File upload(image) : e-mail/FTP
• - Notification: e-mail
• - Recording: SD/SDHC/SDXC or NAS recording at event triggers
• - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
• - Alarm output via optional SPM-4210 I/O box
• Audio In: * Audio in via optional SPM-4210 I/O box
• Audio Out: * Audio out via optional SPM-4210 I/O box
• IR Viewable Length: 25m(82ft)
• Network

• Ethernet: Metal shielded RJ-45 (10/100/1000BASE-T)
• Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec: Manual(5ea area), WiseStreamⅡ
• Bitrate Control: H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming: Unicast(20 users) / Multicast
• Multiple streaming(Up to 10 profiles)
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Security: TPM 2.0 (FIPS 140-2 level 2)
• HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
• Device Certificate(Hanwha Techwin Root CA, pre-installed)
• Secure by default certificate
• Secure OS/Boot/Storage, Verify firmware forgery
• Application Programming Interface: ONVIF Profile S/T
• SUNAPI(HTTP API)
• Open platform
• General

• Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
• Edge Storage: Micro SD/SDHC/SDXC 1slot Max. 512GB
• Memory: 4GB RAM, 512MB Flash
• Environmental & Electrical

• Operating Temperature / Humidity: -40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH(Non-condensing)
• * Start-up should be above -35C
• Storage Temperature / Humidity: -50°C~+60°C(-58°F~+140°F) / Less than 95% RH(Non-condensing)
• Certification: IP66/IP67, NEMA4X, IK10
• Input Voltage: PoE+(IEEE802.3at, Class4)
• Power Consumption: PoE+: Max 18.3W, typical 13.5W
• Mechanical

• Color / Material: White / Aluminum
• Hard-coated dome bubble
• RAL Code: RAL9003
• Product Dimensions / Weight: 215(W)x135(D)x93.2(H)mm(8.46"x5.31"x3.67") / 2.93 lbs
• Compatible Conduit hole / Gangbox: 3/4" (M25)
• single, double, 4" octagon, 4" square
• Hanging Mount (Dome): SBP-215HMW
• Certifications & Standards

• EMC: FCC 47 CFR 15 Subpart B Class A
• ICES-3(A)/NMB-3(A)
• CE/UKCA
• - EN 55032 Class A, EN 50130-4
• VCCI CISPR 32 Class A
• RCM AS/NZS CISPR 32 Class A
• KS C 9832 Class A, KS C 9835
• Safety: UL 62368-1, CAN/CSA C22.2 NO. 62368-1
• IEC/EN 62471
• Environment: IEC/EN 63000
• IEC/EN 60529 IP66/67, IEC/EN 62262 IK10
• NEMA 250 type 4X
• DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF): Wide: 59.9m(196.62ft) / Tele: 153.1m(502.22ft)
• Observe (63PPM/ 19PPF): Wide: 24.0m(78.65ft) / Tele: 61.2m(200.89ft)
• Recognize (125PPM/ 38PPF): Wide: 12.0m(39.32ft) / Tele: 30.6m(100.44ft)
• Identify (250PPM/ 76PPF): Wide: 6.0m(19.66ft) / Tele: 15.3m(50.22ft)
