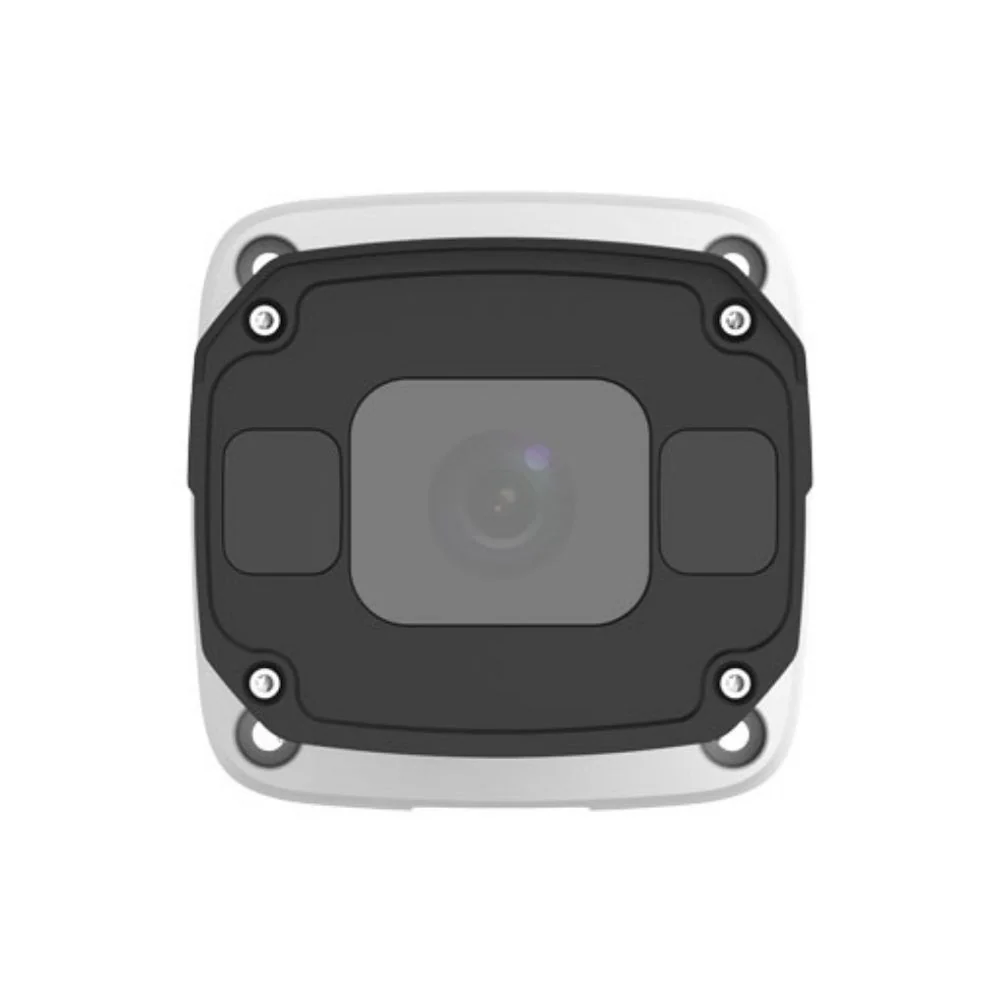

UNV 2MP HD LightHunter IR VF Bullet Network Camera | UNV-IPC2322SB-HDZK-I0

Features

• High-quality image with 2MP, 1/2.8"CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures ultra-high image quality in a low illumination environment.
• 120dB true WDR technology enables a clear image in a strong light scene.
• Support 9:16 Corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 50m (164ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply

Technical Specifications

Camera

• Sensor: 1/2.8", 2.0megapixel, progressive scan, CMOS
• Lens: 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
• DORI Distance
• Lens: 2.7
• Detect (m): 41.9
• Observe (m): 16.8
• Recognize (m): 8.4
• Identify (m): 4.2
• Angle of View (H): 121.36° ~ 33.51°
• Angle of View (V): 58.4° ~ 14.9°
• Angle of View (O): 139.9° ~ 33.4°
• Adjustment angle: Pan: 0° ~ 360°
• Shutter: Auto/Manual, shutter time: 1 ~ 1/100000s
• Minimum Illumination: Colour: 0.0005Lux (F1.2, AGC ON) 0Lux with IR on
• Day/Night: IR-cut filter with auto switch (ICR)
• S/N: >52dB
• IR Range: Up to 50m (164ft) IR range
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual
• Defog: Digital Defog
• WDR: 120dB

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate
• Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
• Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• 9:16 Corridor Mode: Supported
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• U-code: Support
• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported

Audio

• Audio Compression: G.711
• Two-way audio: Supported
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
• Client: EZStation/EZView/EZLive

• Web Browser
• Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Audio I/O
• 1 Input: impedance 35kΩ; amplitude 2V [p-p]
• 1 Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O: 1/1
• Network: 1 RJ45 10M/100M Base-TX Ethernet

Certifications

• CE: EN 60950-1
• UL: UL60950-1
• FCC: FCC Part 15

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 8.5W
• Power Interface: 5.5mm coaxial power plug
• Dimensions (L × W × H): 245.4 × 85.4 × 86.4mm (9.7” × 3.4” × 3.4”)
• Net Weight: 0.92kg (2.03lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Surge Protection: 6KV
• Ingress Protection: IP67
• Vandal Resistant: IK10
• Reset Button: N/A
