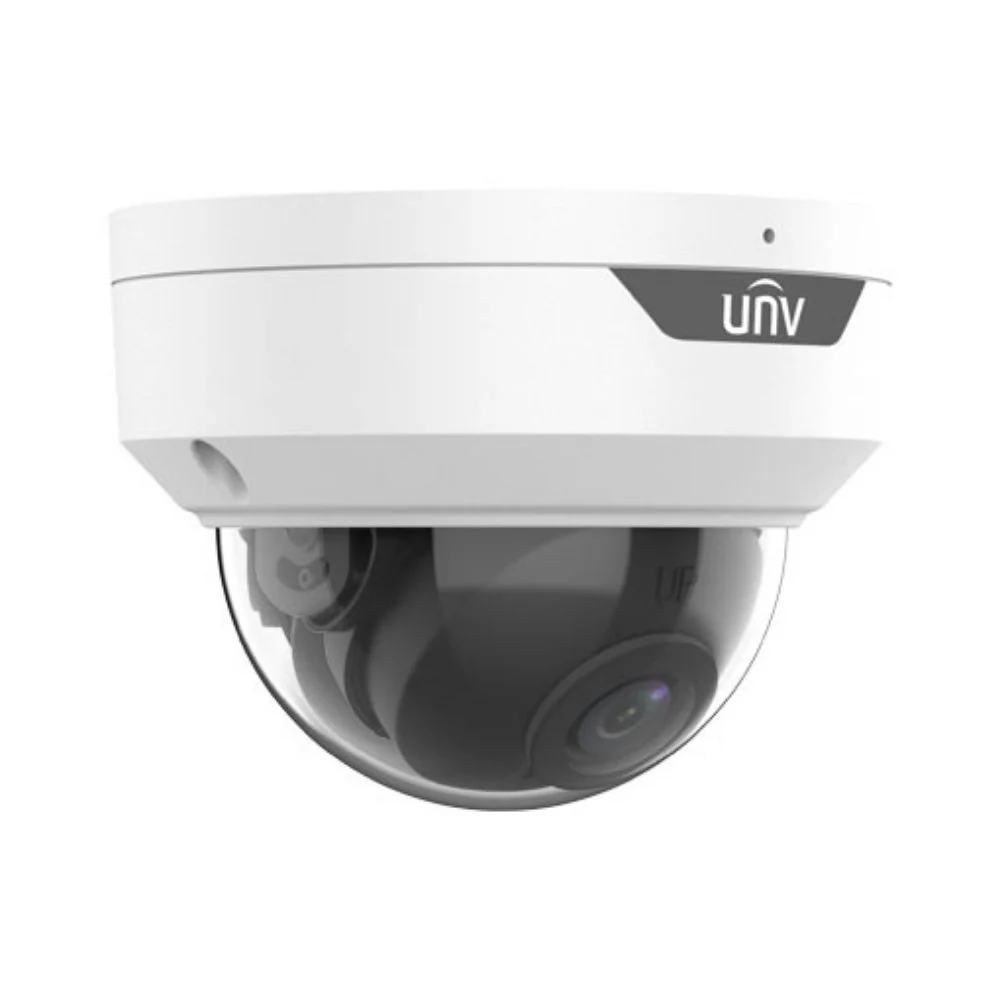

UNV 8MP HD IR Fixed Dome Network Camera | UNV-IPC328SB-ADF40K-I0

Features

• High-quality image with 8MP, 1/2.7"CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables a clear image in a strong light scene
• Support 9:16 Corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection

Technical Specifications

Camera

• Sensor: 1/2.7", 8.0 megapixel, progressive scan, CMOS
• Lens: [email protected]
• DORI Distance
• Detect (m): 120.0
• Observe (m): 48.0
• Recognize (m): 24.0
• Identify (m): 12.0
• Angle of View (H): 91.2°

• Angle of View (V): 47.9°

• Angle of View (O): 95.9°
• Adjustment angle: Tilt: 0° ~ 68° / Rotate: 3° ~ 360°
• Shutter: Auto/Manual, 1 ~ 1/100000s

• Minimum Illumination: Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR

• Day/Night: IR-cut filter with auto switch (ICR)

• Digital Noise Reduction: 2D/3D DNR

• S/N: >56dB

• IR Range: Up to 30m (98ft) IR range

• Wavelength: 850nm

• IR On/Off Control: Auto/Manual

• Defog: Digital Defog

• WDR: 120dB

Video

• Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate
• Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;

• Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps

• OSD: Up to 8 OSDs

• Privacy Mask: Up to 4 areas

• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Smart IR: Support

• Flip: Normal/Flip Vertical/ Flip Horizontal/180°

• Dewarping: Support

• HLC: Support

• BLC: Support

Audio

• Audio Compression: G.711
• Two-way audio: Supported

• Suppression: Supported

• Sampling Rate: 8 KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, HTTPS, SMTP, SSL
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
• Client:  EZStation / EZView / EZLive
• Web Browser
• Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Audio I/O
• Input: impedance 35 kΩ; amplitude 2 V [p-p]

• Output: impedance 600 Ω; amplitude 2 V [p-p]
• Alarm I/O: 1/1
• Built-in Mic: Supported
• Network: 1 RJ45 10M/100M Base-TX Ethernet

Certifications

• CE: EN 60950-1

• UL: UL60950-1

• FCC: FCC Part 15

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 6.0W
• Dimensions (Ø x H): Φ109 x 83mm (Ø4.3” x 3.3”)
• Net Weight: 0.43kg (0.95lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Surge Protection: 4KV
• Ingress Protection: IP67

• Vandal Resistant: IK10

• Reset Button: N/A
