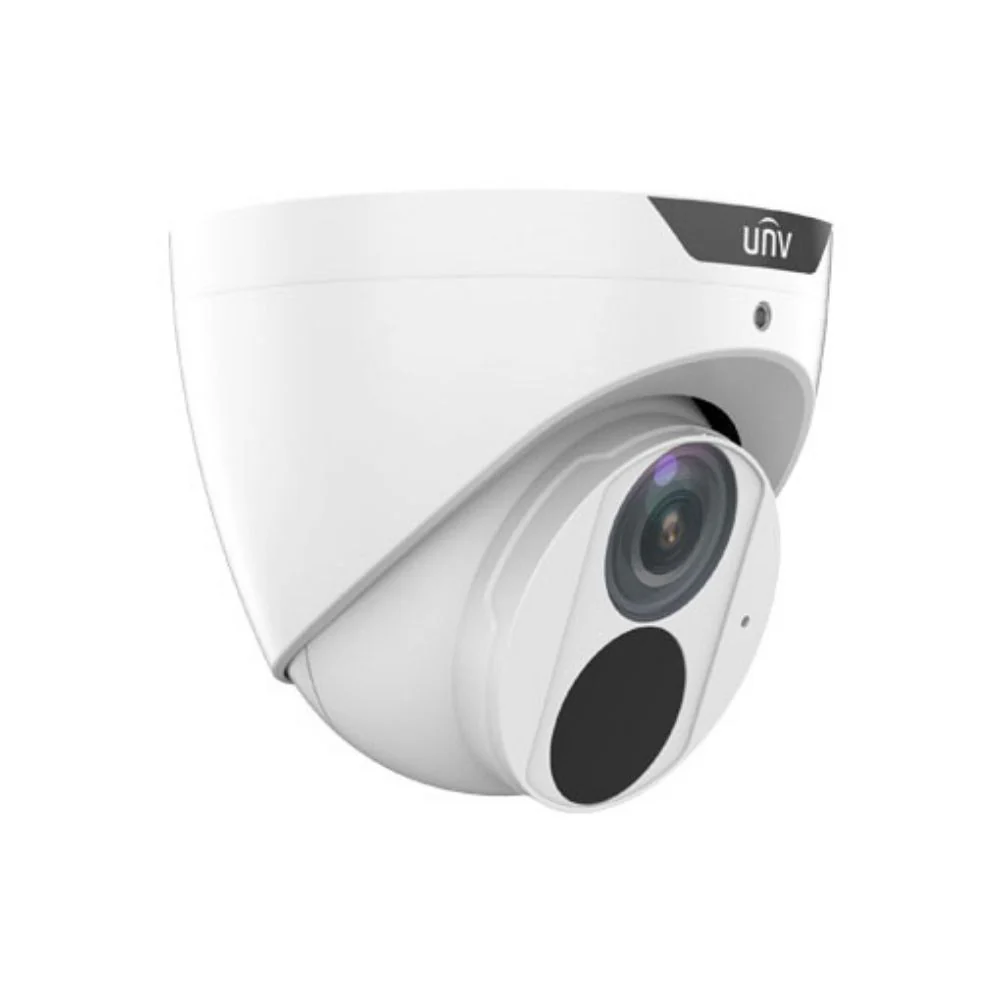

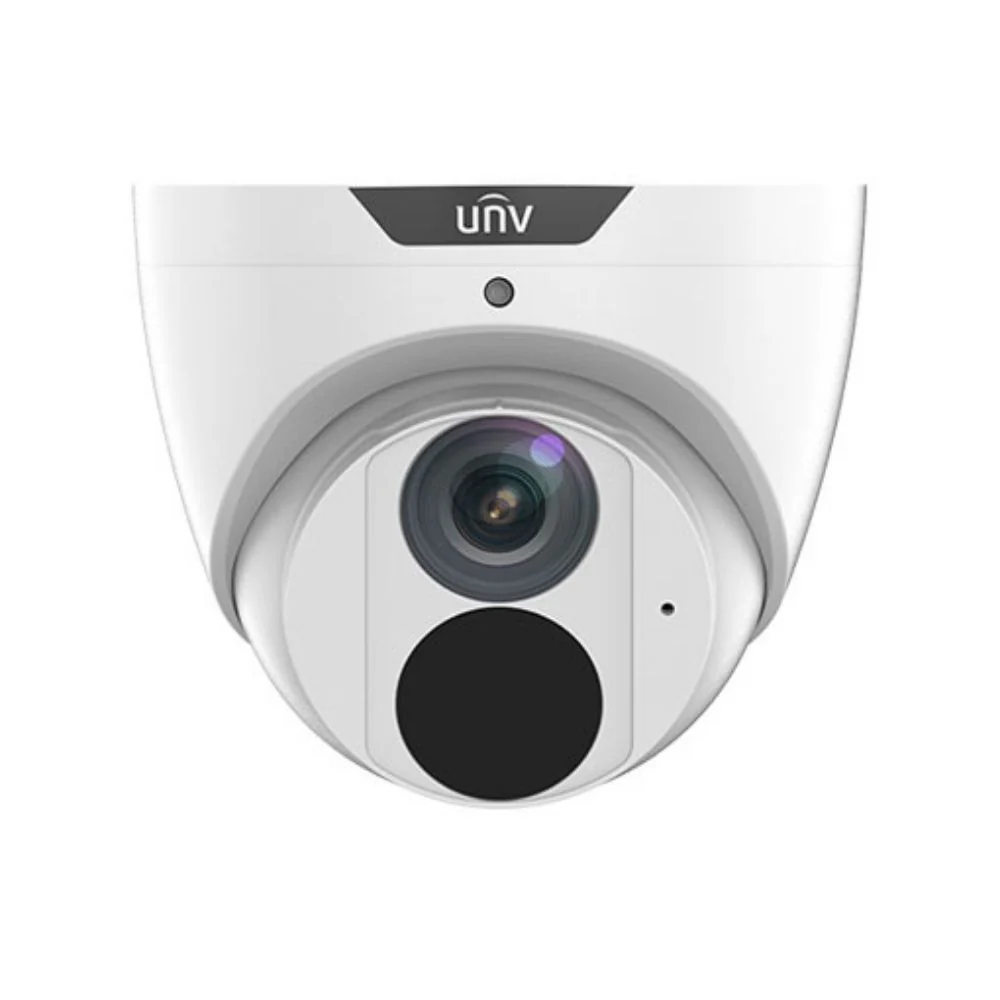

UNV 8MP HD IR Fixed Eyeball Network Camera | UNV-IPC3618SB-ADF28KM-I0

Introducing the UNV 8MP HD IR Fixed Eyeball Network Camera, model UNV-IPC3618SB-ADF28KM-I0. This advanced surveillance solution is meticulously engineered to provide exceptional security features and cutting-edge technology. With a high-resolution 8-megapixel sensor, the UNV-IPC3618SB-ADF28KM-I0 ensures crystal-clear and detailed visuals, optimizing identification and monitoring in various scenarios.

Features

• High-quality image with 8MP, 1/2.7"CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables a clear image in a strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection

Technical Specifications

Camera

• Sensor: 1/2.7", 8.0 megapixel, progressive scan, CMOS
• Lens: [email protected]
• DORI Distance
• Detect (m): 84.0
• Observe (m): 33.6
• Recognize (m): 16.8
• Identify (m): 8.4
• Angle of View (H): 112.4°

• Angle of View (V): 60.1°

• Angle of View (O): 146.1°
• Adjustment angle: Pan: 3° ~ 360°
• Shutter: Auto/Manual, 1 ~ 1/100000s

• Minimum Illumination: Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on
• Digital Noise Reduction: 2D/3D DNR

• Day/Night: IR-cut filter with auto switch (ICR)
• S/N: >56dB

• IR Range: Up to 30m (98ft) IR range

• Wavelength: 850nm

• IR On/Off Control: Auto/Manual

• Defog: Digital Defog

• WDR: 120dB

Video

• Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate
• Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;

• Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps

• OSD: Up to 8 OSDs

• Privacy Mask: Up to 4 areas

• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Smart IR: Support

• Flip: Normal/Flip Vertical/ Flip Horizontal/180°

• Dewarping: Support

• HLC: Support

• BLC: Support

Audio

• Audio Compression: G.711
• Suppression: Supported

• Sampling Rate: 8 KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
• Client:  EZStation / EZView / EZLive
• Web Browser
• Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Built-in Mic: Supported
• Network: 1 RJ45 10M/100M Base-TX Ethernet

Certifications

• CE: EN 60950-1

• UL: UL60950-1

• FCC: FCC Part 15

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 5.0W
• Dimensions (Ø x H): Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
• Net Weight: 0.44kg (0.97lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Surge Protection: 2KV
• Ingress Protection: IP67
• Reset Button: N/A

Product Literature

• UNV IPC3618SB-ADF28KM-I0 Data Sheet
• UNV IPC3600 Series-Network Mini Dome Cameras Quick Guide
• UNV Camera Installation Guide

• UNV Network Cameras User Manual
