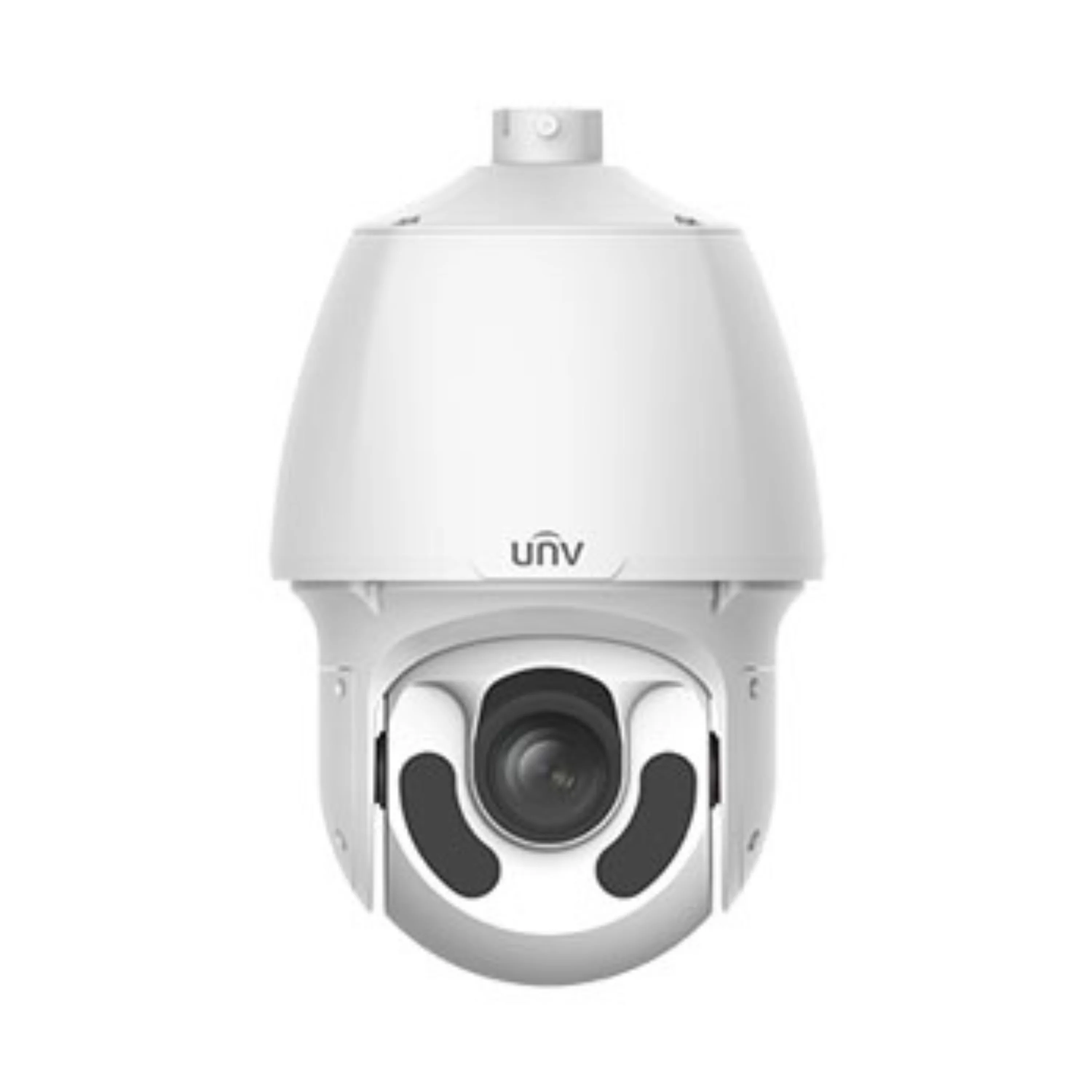

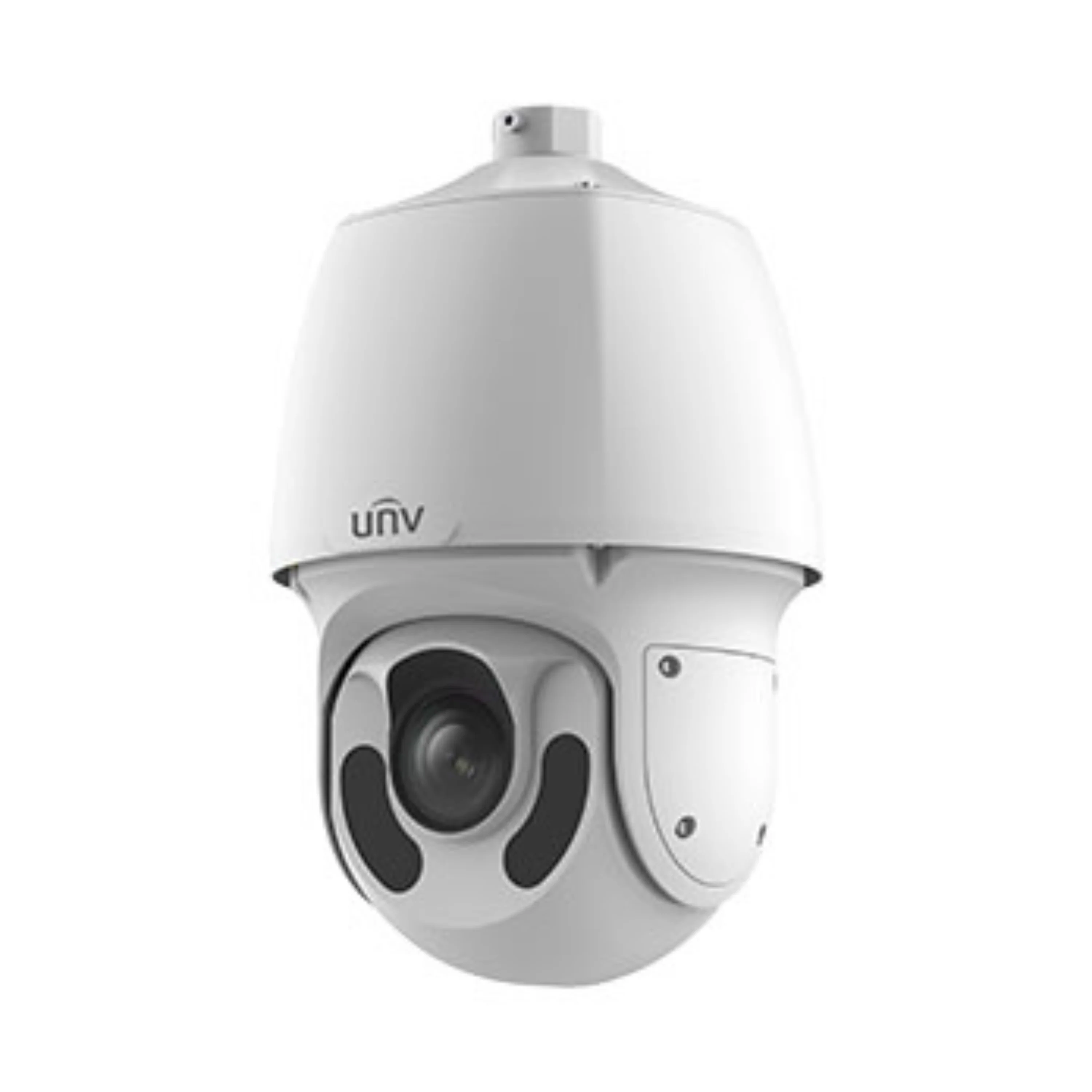

UNV 2MP 33x Lighthunter Network PTZ Dome Camera | UNV-IPC6622SR-X33-VF

Introducing the UNV 2MP 33x Lighthunter Network PTZ Dome Camera, model UNV-IPC6622SR-X33-VF. This advanced PTZ (Pan-Tilt-Zoom) dome camera is meticulously engineered to provide exceptional security features and cutting-edge technology. With a 2-megapixel sensor and an impressive 33x optical zoom, the UNV-IPC6622SR-X33-VF ensures clear and detailed visuals, optimizing identification and monitoring in various scenarios.

Features

• High-quality image with 2MP,1/2.8’’ CMOS sensor
• 1920*1080@60fps in the main stream
• Ultra 265, H.265, H.264, MJPEG

• Triple streams
• 33X Optical Zoom
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenariosLighthunter technology ensures ultra-high image quality in a low illumination environment

• Smart IR, up to 150m (492ft) IR distance
• DC 12V±25% or PoE+ (IEEE 802.3at)
• AC 24V±25%, DC 24V±25% or PoE power supply
• IP66 ingress protection
• Alarm 2 in and 1 out, Audio 1 in and 1 out

Technical Specifications

Camera

• Image Sensor: 1/2.8", 4.0 megapixel, progressive scan, CMOS
• Minimum Illumination: Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR

• Day/Night: IR-cut filter with auto switch (ICR)

• Shutter: Auto/Manual, shutter time: 1~1/100000 s

• WDR: 120dB

• S/N: >56dB

• Lens type: 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens

• Digital Zoom: 16

• Optical Zoom: 33

• Iris: Auto; F1.5 ~ F4.0
• Angle of View (H): 56.2° ~ 2.6°

• Angle of View (V): 33.5° ~ 1.4

• Angle of View (O): 69.1° ~ 3.1°

• DORI Distance
• Detect (m): 4.5
• Observe (m): 72.9( 239.3ft)
• Recognize (m): 23.9(78.2ft)
• Identify (m): 14.6( 47.9ft)
• IR Range: Up to 150m (492 ft) IR range

• Wavelength: 850nm

• IR On/Off Control: Auto/Manual

Video

• Compression: Ultra 265, H.265, H.264, MJPEG
• Frame Rate
• Main Stream: 2MP(1920*1080),Max 60fps;

• Sub Stream: 2MP (1920*1080), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps

• U-code: Support

• ROI: Support

• Video Stream: Triple streams

• OSD: Up to 8 OSDs

• Privacy Mask: 24 areas, up to 4 areas per scene


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction: 2D/3D DNR

• Smart IR: Support

• Flip: Normal/Flip Vertical/ Flip Horizontal/180°
• HLC: Support

• BLC: Support

• Defog: Digital Defog

Intelligent

• Smart Intrusion Prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
• People Counting Support: people flow counting and crowd density monitoring

Events

• Basic Detection: Motion detection, Audio detection, Tampering Alarm
• Auto Tracking: Support
• General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

• Audio Compression: G.711U,G.711A

• Audio Bitrate: 64 Kbps

• Two-way audio: Supported

• Suppression: Supported

• Sampling Rate: 8 KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK

• User/Host: Up to 32 users. 2 user levels: administrator and common user

• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
• Client:  EZStation / EZView / EZLive
• Web Browser:

• Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
• Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Pan & Tilt

• Pan Range: 360° (endless)
• Pan Speed: 0.1°/s ~ 200°/s - Preset speed: 300°/s
• Tilt Range: –15° ~ 90° (auto-reverse)
• Tilt Speed: 0.1°/s ~ 200°/s - Preset speed: 240°/s
• Number of Presets: 1024
• Preset Patrol: 16 patrols, up to 64 presets for each patrol
• Route Patrol: 16 patrols, up to 32 actions for each patrol
• Recorded Patrol: 16 patrols, up to 128 actions for each patrol
• Patrol Stay Time: 15s~1800s
• Preset Image Freeze: Support
• Home Position: Support

Interface

• Audio I/O: 1/1
• Alarm I/O: 2/1
• Serial Port: 1 RS485
• Built-in Mic: N/A
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: 1 BNC

Certifications

• EMC
• CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019
• EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020)
• FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
• Safety
• CE LVD (EN 62368-1:2014+A11:2017)
• CB (IEC 62368-1:2014)
• UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863)
• Protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

• Power: AC 24V±25%, DC 24V±25%, PoE (PSE Required)
  Power consumption: MAX 41W
• Power Interface: Wires with cold-pressed terminal

• Dimensions (Ø x H): Ø227 x 384mm (Ø8.9” x 15.1”)
• Weight: 5.39kg (11.88lb)
• Working Environment: -40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)

• Storage Environment: -40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)

• Surge Protection: 6KV
• Reset Button: Supported
