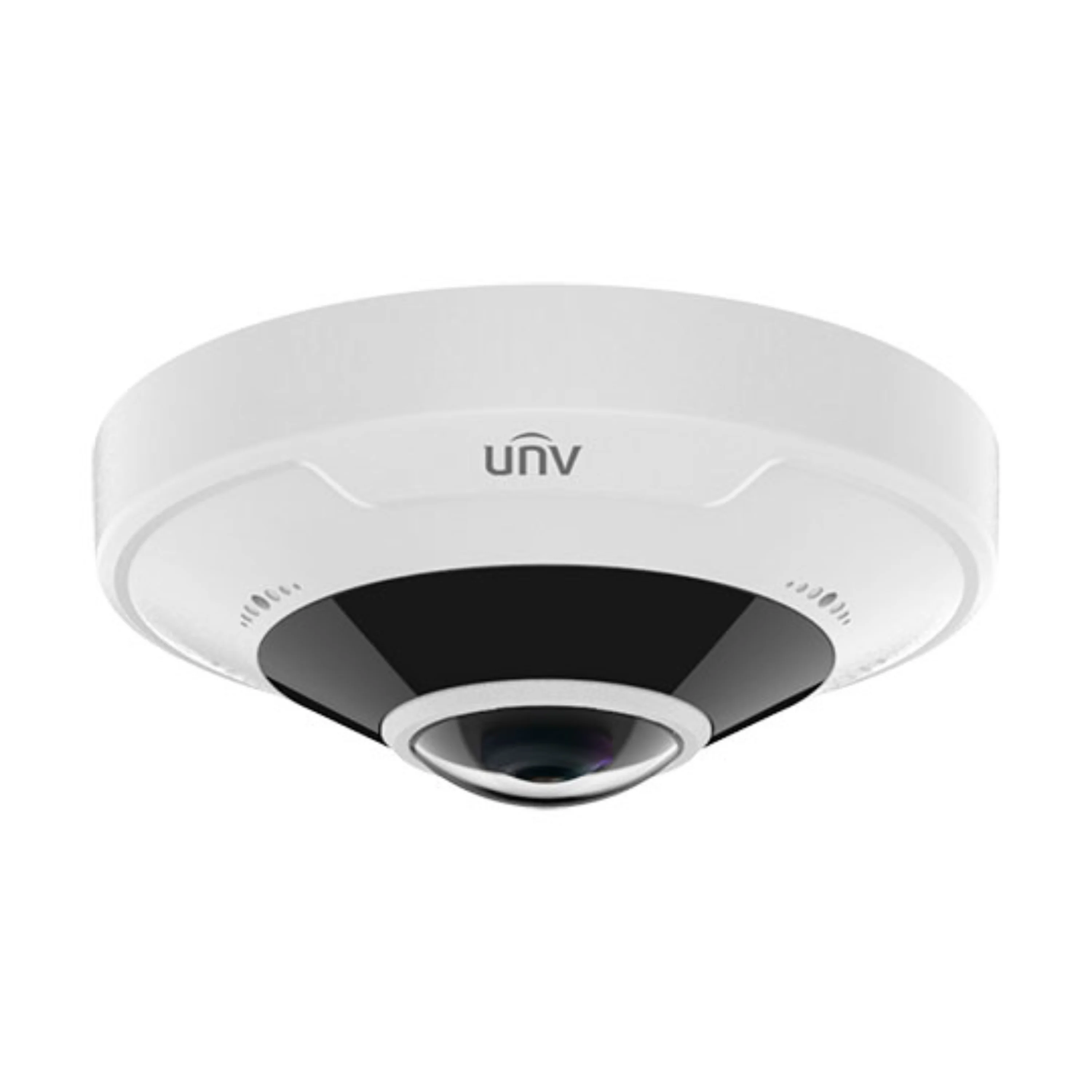

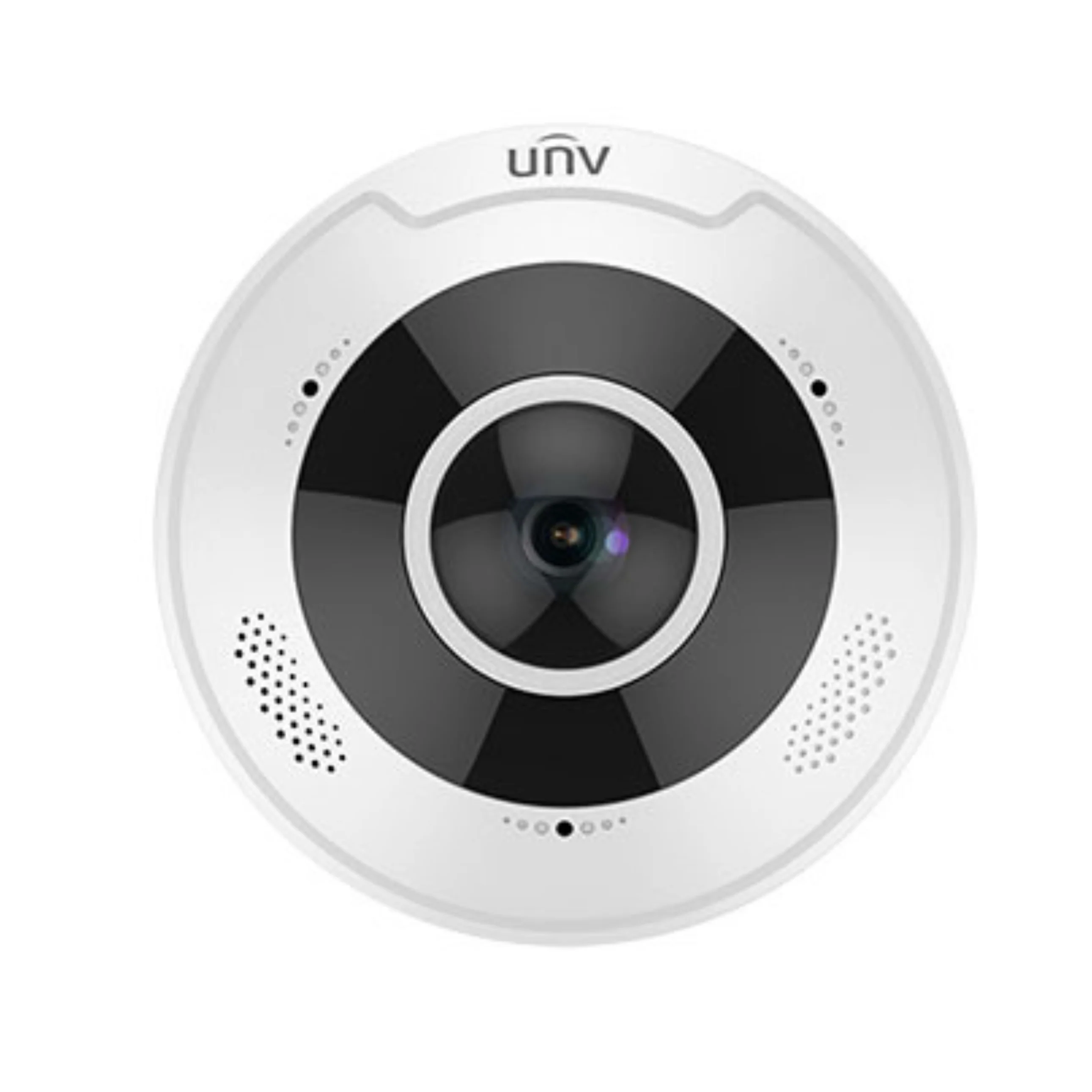

UNV 12MP Ultra HD Infrared Vandal-resistant Fisheye Fixed Dome Camera | UNV-IPC86CEB-AF18KC-I0

Introducing the UNV 12MP Ultra HD Infrared Vandal-resistant Fisheye Fixed Dome Camera, model UNV-IPC86CEB-AF18KC-I0. This advanced surveillance solution is meticulously engineered to provide exceptional security features and cutting-edge technology. With an impressive 12-megapixel sensor and infrared capabilities, the UNV-IPC86CEB-AF18KC-I0 ensures comprehensive and detailed coverage, optimizing identification and monitoring in various scenarios.

Key Features:

Features

• High quality image with 12MP,1/1.7’’ CMOS sensor
• Max 4000*3000 resolution
• Ultra265, H.265, H.264, MJPEG
• Ultra wide angle lens, 360° panoramic image
• Embedded infrared light, 360° fill-in light, up to 15m (49ft) IR distance
• Multiple decoding modes, supports software and hardware modes, provides interactive dynamic view
• Heatmap: Working with management platform, the data of moving objects is counted in real time on an intuitive color map
• Built-in microphone & speaker, two-way talk supported
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection

Technical Specifications

Camera

• Sensor: 1/1.7", 12.0 megapixel, progressive scan, CMOS

• Shutter: Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination: Colour: 0.03Lux (F2.0, AGC ON) 0 Lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• S/N: >56 dB
• WDR: DWDR

Lens

• Lens: [email protected]
• Field Of View: 360°


Dori

• DORI Distance
• Lens (mm): 1.8
• Detect (m): 43.8
• Observe (m): 17.5
• Recognize (m): 8.8
• Identify (m): 4.4


Illuminator

• IR Range: Up to 15m (49 ft)
• Wavelength: 850nm (IR)
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Frame Rate

• Main Stream:
• Fisheye View: 12MP(4000*3000)@20fps;3000*3000@20fps; 2560*2560@25fps;
• Panorama View: 12MP(4000*3000)@20fps;3000*2000@20/25fps; 3000*1500@20/25fp;
• PTZ View: 1920*1080@20/25fps;
• Sub Stream: Fisheye View:2000*1500@20fps;2000*2000@25fps
• Third Stream: Fisheye View:D1(720*576)@20/25fps;CIF352*288)@20/25fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-Code: Supported
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Triple Stream

Live View Display

• Mount Type: Support table, wall, and ceiling
• Hardware Decoding:
• Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view、vertical panorama view
• Table mount: fisheye view, fisheye + 4PTZ, , horizontal panorama view、vertical panorama view
• Wall mount: fisheye view, fisheye + 4PTZ, panorama view
• Software Decoding
• Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ
• Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ
• Wall mount: fisheye view, 180° panorama view, 180° panorama view+3PTZ, 180° panorama view+4PTZ, 180° panorama view+8PTZ


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: N/A

• BLC: Supported
• Defog: Digital Defog

Intelligent

• Smart intrusion prevention: Cross Line detection, Intrusion detection
• Statistical Analysis: Heat map(Working with management platform)

Events

• Basic Detection Motion detection, Audio detection
• General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication


Audio

• Audio Compression: G.711U, G.711A
• Two-way Audio: Support
• Audio Bitrate: 64 Kbps
• Suppression: Support
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Client:  EZStation / EZView / EZLive
• Web Browser
• Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Interface

• Audio I/O:
• Input: impedance 35kΩ; amplitude 2V [p-p]
• Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O:
• 2/1
• Multiple Alarm linkage editable
• Serial: 1 channel RS485 interface
  Built-in Mic: Two Mics
• Built-in Speaker: Support
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: 1 BNC, impedance 75Ω; amplitude 1V [p-p]

Certifications

• EMC:
• CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
• FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
• Safety:

• CE LVD (EN 62368-1:2014+A11:2017)
• CB (IEC 62368-1:2014)
• UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

• Protection:
• IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
• IK10 (IEC 62262:2002)

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 16W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions (Ø x H): Φ149 x 55mm (Φ5.9” x 2.2”)

• Net Weight: 525g
• Material: Metal + Plastic
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH

• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH

• Surge Protection: 4KV
• Reset Button: Support
