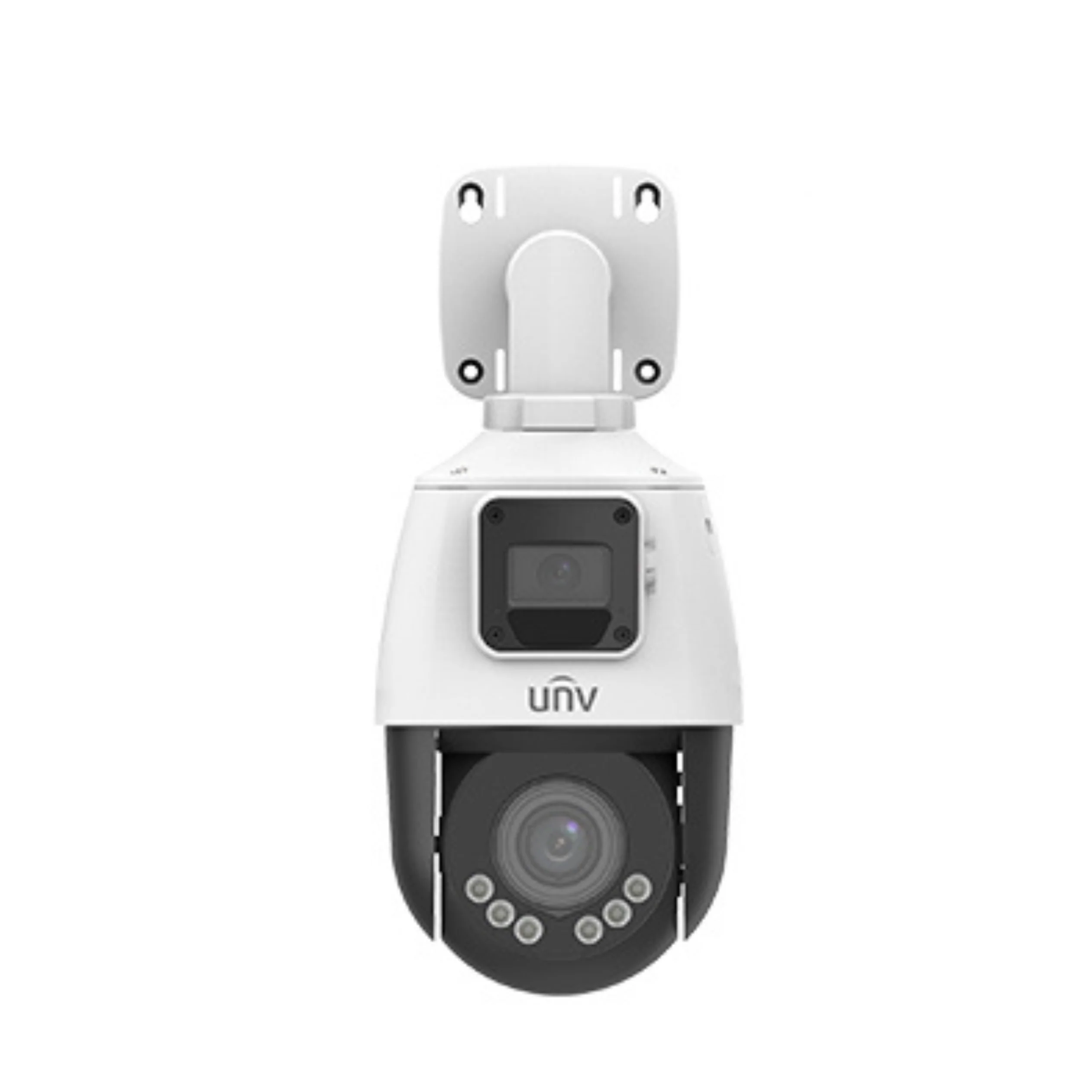

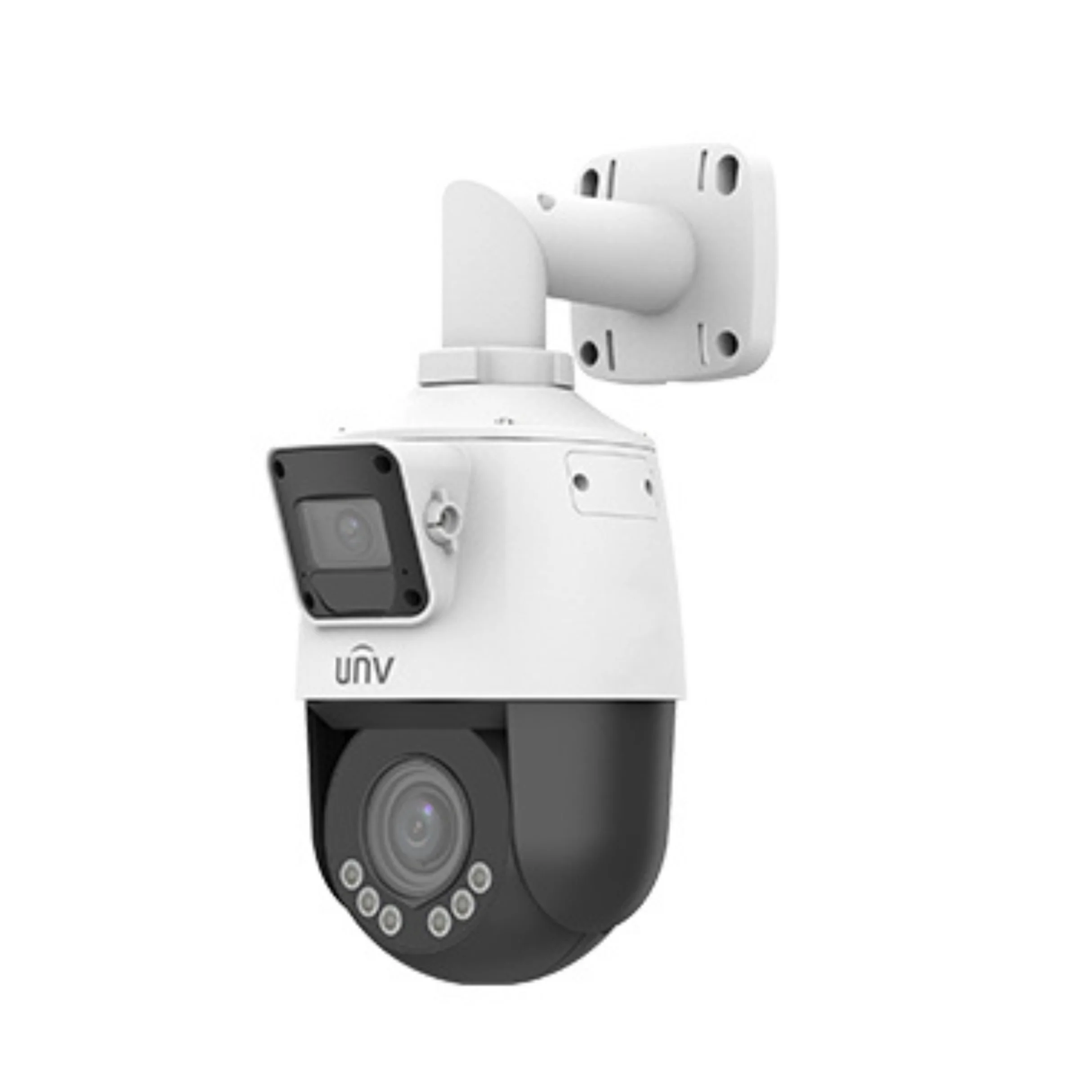

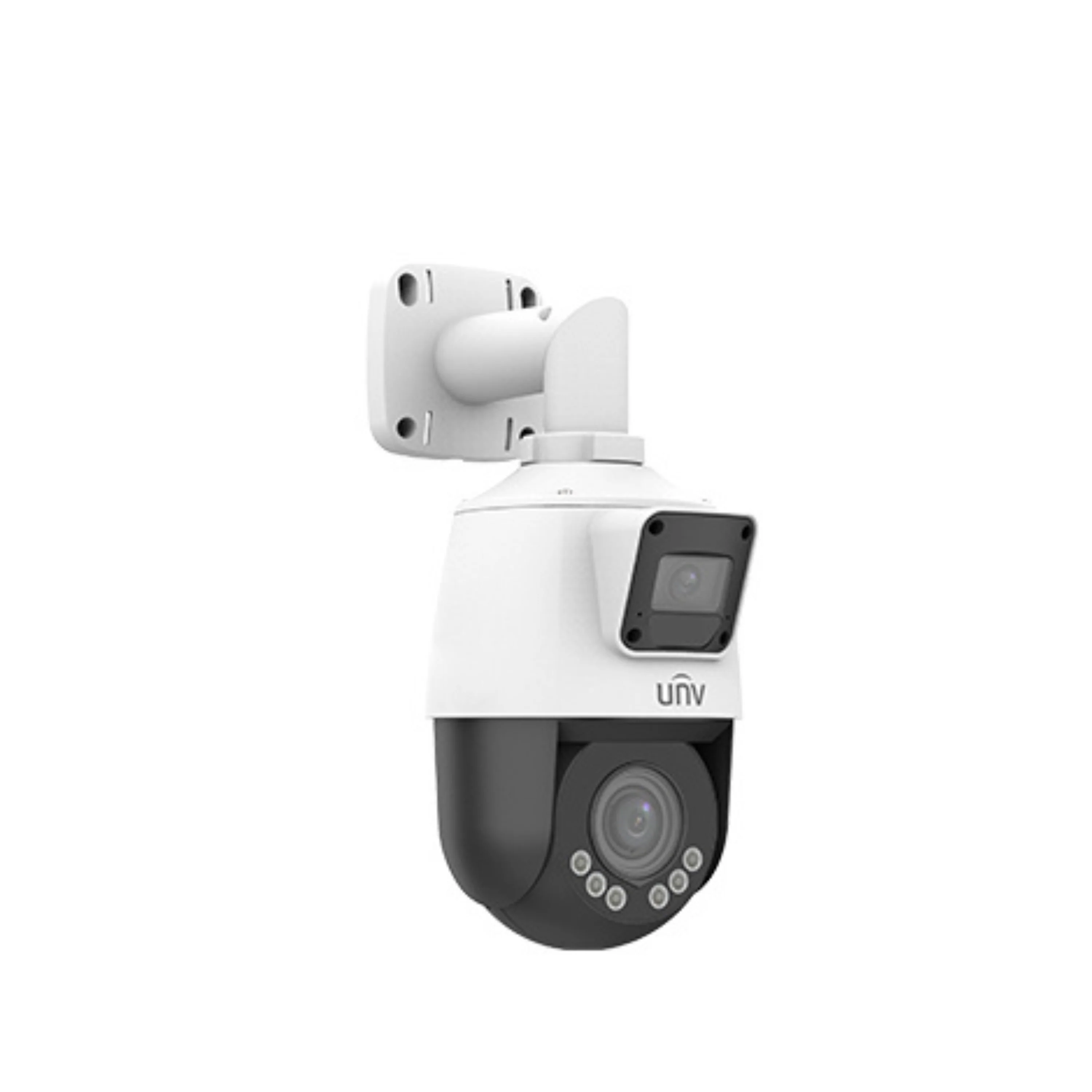

UNV 2*2MP Lighthunter Dual-lens Network PTZ camera | UNV-IPC9312LFW-AF28-2X4

This advanced PTZ (Pan-Tilt-Zoom) camera with dual lenses is meticulously engineered to provide exceptional security features and cutting-edge technology. With two 2-megapixel sensors and Lighthunter technology, the UNV-IPC9312LFW-AF28-2X4 ensures clear and detailed visuals, optimizing identification and monitoring in various scenarios.

Features

• Fixed camera and PTZ camera integration, dual channels with one IP, look at the overall situation and consider details at the same time
• High-quality imaging with 2MP, 1/2.8"CMOS sensor

• 1920*1080@25fps in the main stream
• Ultra 265, H.265, H.264, MJPEG

• 4X optical zoom of PTZ channel allows for closer viewing of subjects
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Built-in 2*mic & high-power speaker, support two-way audio, has better sound performance
• Support ceiling mount and wall mount

Technical Specifications

Camera

• Sensor: 1/2.8", 2.0MP, CMOS
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination: Colour: 0.002Lux (F1.6 AGC ON) 0 Lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• S/N: >56 dB
• WDR: 120dB

Lens

• Lens: [email protected]
• Optical Zoom: N/A
• Iris: Fixed aperture
• The angle of View (H): 102.4°
• The Angle of View (V): 54.9°
• The angle of View (O): 133.1°

Dori

• DORI Distance
• Lens (mm): 2 (Panorama), 2.8 (Detail), 12 (Detail)
• Detect (m): 43.4 (142.5 ft), 43.4 (142.5 ft), 162.9 ( 534.6 ft)
• Observe (m): 17.4 (57.0 ft), 17.4 (57.0 ft), 65.2 ( 213.8ft)
• Recognize (m): 8.7 (28.5ft), 8.7 (28.5ft), 32.6 (106.9ft)
• Identify (m): 4.3 ( 14.3 ft), 4.3 (14.3 ft), 16.3 (53.5 ft)


Illuminator

• IR Range: Up to 10m (32.8 ft)
• Warm Light Range: N/A
• Wavelength: 850nm (IR)
  IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Frame Rate

• Main Stream: 1080P (1920*1080),Max 25fps
• Sub Stream: 720P (1280*720), Max 25fps
• Video Bit Rate: 128 Kbps~16 Mbps

• U-Code: Supported
• OSD: Up to 8 OSDs
• Privacy Mask: 24 areas, Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Dual Stream


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• HLC: Supported

• BLC: Supported
• Defog: Digital Defog

Events

• Basic Detection Motion detection, Audio detection
• General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication


Audio

• Audio Compression: G.711U, G.711A
• Two-way Audio: Support
• Audio Bitrate: 64 Kbps
• Suppression: Support
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

• Client: EZStation / EZView / EZLive
• Web Browser
• Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Pan & Tilt

• Pan Range: N/A
• Pan Speed: N/A
• Preset speed: N/A
• Tilt Range 18° ± 5°
• Tilt Speed N/A
• Preset speed: N/A
• Number of Presets: 256
• Preset Patrol: 16 patrols, up to 64 presets for each patrol
• Patrol Stay Time: 15s~1800s
• Preset Image Freeze: N/A
• Home Position: Support

Interface

• Audio I/O: N/A

• Alarm I/O: N/A
• Serial Port: N/A
• Built-in Mic: Support (Mic*2)

• Built-in Speaker: Support
• WIFI: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

Certifications

• EMC:
• CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
• FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
• Safety:
• CE LVD (EN 62368-1:2014+A11:2017)
• CB (IEC 62368-1:2014)
• UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment: CE-ROHS (2011/65/EU)

• Protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)


General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 16W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions (Ø x H):
• Wall Mount: Φ134 x 192 x 302mm (Φ5.3” x 7.6” x 11.9”)
• Ceiling Mount: Φ134 x 154 x 363mm (Φ5.3” x 6.1” x 14.3”)
• Net Weight: 1.03kg (2.7lb)
• Working Environment: -20℃ ~ 60℃(-4°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)

• Storage Environment: -30℃ ~ 70℃(-22°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)

• Surge Protection: 2KV
• Reset Button: Support
